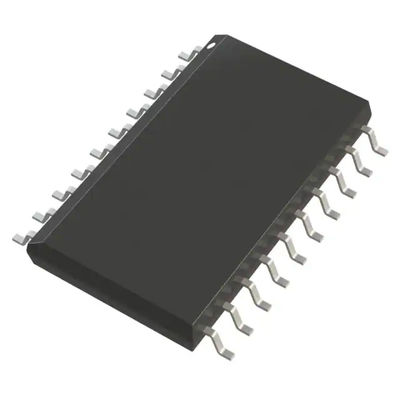

ADM2587EBRWZ-REEL7 RS422 RS485 Digital Isolator Ic 2500Vrms 2 Channel 500kbps 25kV µS CMTI 20-SOIC 0.295"
| Place of Origin | Analog Devices Inc. |
|---|---|
| Brand Name | ADI |
| Certification | RoHS |
| Model Number | ADM2587EBRWZ-REEL7 |
| Minimum Order Quantity | 400 PCS |
| Price | Negotiable |
| Packaging Details | 400 PCS/Tube |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Digital Isolators | Mfr | Analog Devices Inc. |
|---|---|---|---|
| Series | ADM2587E | Technology | Magnetic Coupling |
| Type | RS422 | Number Of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 | Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms | Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 500kbps | Voltage - Supply | 3.3V, 5V |
| Operating Temperature | -40°C ~ 85°C | Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| High Light | ADM2587EBRWZ-REEL7,digital signal isolator ic,digital isolator ic |
||
Product Description
ADM2587EBRWZ-REEL7 RS422, RS485 Digital Isolator 2500Vrms 2 Channel 500kbps 25kV/µs CMTI 20-SOIC (0.295", 7.50mm Width)
Description:
The ADM2582E/ADM2587E are fully integrated signal and power isolated data transceivers
with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission
lines. The ADM2582E/ADM2587E include an integrated isolated dc-to-dc power supply, which eliminates
the need for an external dc-to-dc isolation block.
Quick Detail:
|
Manufacturer
|
Analog Devices Inc.
|
|
Manufacturer Product Number
|
ADM2587EBRWZ-REEL7
|
|
Description
|
DGT ISO 2.5KV RS422/RS485 20SOIC
|
|
Detailed Description
|
RS422, RS485 Digital Isolator 2500Vrms 2 Channel 500kbps 25kV/µs CMTI 20-SOIC (0.295", 7.50mm Width)
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Digital Isolators
|
|
Mfr
|
Analog Devices Inc.
|
|
Series
|
IsoPower®, iCoupler®
|
|
Product Status
|
Active
|
|
Technology
|
Magnetic Coupling
|
|
Type
|
RS422, RS485
|
|
Isolated Power
|
Yes
|
|
Number of Channels
|
2
|
|
Inputs - Side 1/Side 2
|
44927
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
2500Vrms
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
Data Rate
|
500kbps
|
|
Rise / Fall Time (Typ)
|
1.1µs, 1.1µs (Max)
|
|
Voltage - Supply
|
3.3V, 5V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
20-SOIC
|
|
Base Product Number
|
ADM2587
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
ADM2587EBRWZ-REEL7TR-ND
|
|
ADM2587EBRWZ-REEL7-ND
|
|
|
ADM2587EBRWZREEL7
|
|
|
ADM2587EBRWZ-REEL7CT
|
|
|
ADM2587EBRWZ-REEL7DKR
|
|
|
ADM2587EBRWZ-REEL7DKR-ND
|
|
|
505-ADM2587EBRWZ-REEL7DKR
|
|
|
ADM2587EBRWZ-REEL7CT-ND
|
|
|
-2735-ADM2587EBRWZ-REEL7CT
|
|
|
505-ADM2587EBRWZ-REEL7CT
|
|
|
-2735-ADM2587EBRWZ-REEL7DKR
|
|
|
505-ADM2587EBRWZ-REEL7TR
|
|
|
ADM2587EBRWZ-REEL7TR
|
|
| Standard Package | 400 |
Data Picture:https://www.analog.com/media/en/technical-documentation/data-sheets/ADM2582E_2587E.pdf
