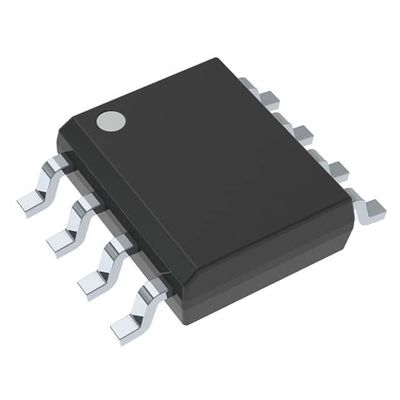

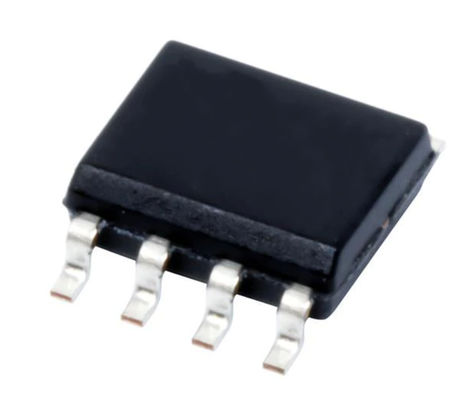

SN65HVD3082EDR Single Receiver RS-485 8-Pin SOIC T/R 200Kbps Communication Interface Module
| Place of Origin | Texas Instruments |
|---|---|
| Brand Name | TI |
| Certification | RoHS |
| Model Number | SN65HVD3082EDR |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | SN65HVD3082EDR | Manufacturer | Texas Instruments |
|---|---|---|---|
| Category | Drivers, Receivers, Transceivers | General Package | SOIC-8 |
| Length | 5mm(Max) | Width | 3.98mm(Max) |
| Height | 1.75mm(Max) | Operating Temperature | -40°C ~ 85°C |
| Driver/Receiver | 1 | Support Protocol | RS422，RS485 |
| Data Rate | 200kbps | Voltage | 4.5V~5.5V |
| High Light | SN65HVD3082EDR,Single Receiver 8-Pin,sn65hvd3082edr datasheet |
||
Product Description
SN65HVD3082EDR Single Receiver RS-485 Interface IC 8-Pin SOIC T/R 200Kbps
Product Attributes:
TYPE | DESCRIPTION |
Category | Drivers, Receivers, Transceivers |
Mfr | Texas Instruments |
Product Status | Active |
Type | Transceiver |
Protocol | RS422, RS485 |
Number of Drivers/Receivers | 44927 |
Duplex | Half |
Receiver Hysteresis | 30 mV |
Data Rate | 200kbps |
Voltage - Supply | 4.5V ~ 5.5V |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | 65HVD3082 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | TEXTISSN65HVD3082EDR |
296-31719-1 | |
296-31719-2 | |
296-31719-6 | |
2156-SN65HVD3082EDR | |
SN65HVD3082EDR-ND | |
| Standard Package | 2500 |
Description:
The SNx5HVD308xE are half-duplex transceivers designed for RS-485 data bus networks. Powered by a 5-V supply,
they are fully compliant with TIA/ EIA-485A standard. With controlled transition times, these devices are suitable for
transmitting data over long twisted-pair cables. The SN65HVD3082E and SN75HVD3082E are optimized for signaling
rates up to 200 kbps. The SN65HVD3085E is suitable for data transmission up to 1 Mbps, whereas the SN65HVD3088E
is suitable for applications that require signaling rates up to 20 Mbps.
Features
• Meets or exceeds the requirements of the TIA/ EIA-485A standard
• Low quiescent power – 0.3-mA Active mode – 1-nA Shutdown mode
• 1/8 Unit load up to 256 nodes on a bus
• Bus-pin ESD protection up to 15 kV
• Industry-standard SN75176 footprint
• Fail-safe receiver (bus open, bus shorted, bus idle)
• Glitch-free power-up and power-down bus inputs and outputs
Data Picture:
