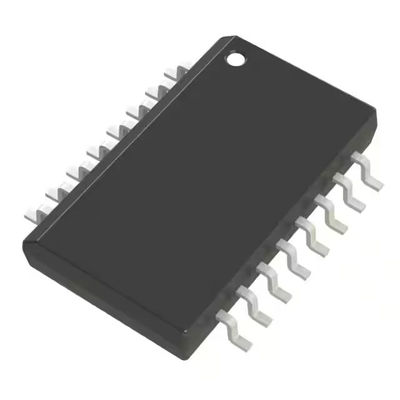

ADM2682EBRIZ RS422 RS485 Digital Isolator 3 Channel 16Mbps CMTI 16-SOIC Communication Interface Module
| Place of Origin | Analog Devices Inc. |
|---|---|
| Brand Name | ADI |
| Certification | RoHS |
| Model Number | ADM2682EBRIZ |
| Minimum Order Quantity | 37 PCS |
| Price | Negotiable |
| Packaging Details | 37 PCS/Tube |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Digital Isolators | Mfr | Analog Devices Inc. |
|---|---|---|---|
| Series | ADM2682E | Package | Tube |
| Technology | Magnetic Coupling | Type | RS422, RS485 |
| Number Of Channels | 3 | Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms | Data Rate | 16Mbps |
| Propagation Delay TpLH / TpHL (Max) | 100ns, 100ns | Rise / Fall Time (Typ) | 15ns, 15ns (Max) |
| Voltage - Supply | 3.3V, 5V | Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | ||
| High Light | ADM2682EBRIZ,Digital Isolator 3 Channel,RS485 Digital Isolator |
||
Product Description
ADM2682EBRIZ RS422, RS485 Digital Isolator 5000Vrms 3 Channel 16Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Description:
The ADM2682E/ADM2687E are fully integrated 5 kV rms signal and power isolated data transceivers
with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines.
The ADM2682E/ADM2687E include an integrated 5 kV rms isolated dc-to-dc power supply that eliminates
the need for an external dc-to-dc isolation block.
Quick Detail:
|
Manufacturer
|
Analog Devices Inc.
|
|
Manufacturer Product Number
|
ADM2682EBRIZ
|
|
Description
|
DGTL ISO 5KV RS422/RS485 16SOIC
|
|
Detailed Description
|
RS422, RS485 Digital Isolator 5000Vrms 3 Channel 16Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Digital Isolators
|
|
Mfr
|
Analog Devices Inc.
|
|
Series
|
isoPower®
|
|
Package
|
Tube
|
|
Product Status
|
Active
|
|
Technology
|
Magnetic Coupling
|
|
Type
|
RS422, RS485
|
|
Isolated Power
|
Yes
|
|
Number of Channels
|
3
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
5000Vrms
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
Data Rate
|
16Mbps
|
|
Propagation Delay tpLH / tpHL (Max)
|
100ns, 100ns
|
|
Rise / Fall Time (Typ)
|
15ns, 15ns (Max)
|
|
Voltage - Supply
|
3.3V, 5V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
|
Base Product Number
|
ADM2682
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
505-ADM2682EBRIZ
|
|
ADM2682EBRIZ-ND
|
|
|
-2735-ADM2682EBRIZ
|
|
| Standard Package | 37 |
Data Picture:https://www.analog.com/media/en/technical-documentation/data-sheets/ADM2682E_2687E.pdf
