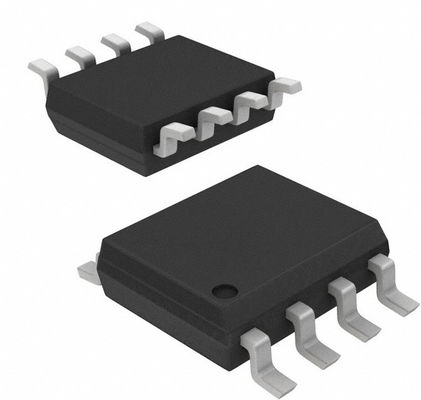

FDS3992 N Channel Mosfet Array IC 100V 4.5A 2.5W Surface Mount 8-SOIC
| Place of Origin | United States |
|---|---|
| Brand Name | onsemi |
| Certification | RoHS |
| Model Number | FDS3992 |
| Minimum Order Quantity | 2500PCS |
| Price | Negotiable |
| Packaging Details | 2500PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 7.5K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Onsemi | Category | FET, MOSFET Arrays |
|---|---|---|---|
| Product Number | FDS3992 | Series | PowerTrench® |
| Technology | MOSFET (Metal Oxide) | Configuration | 2 N-Channel (Dual) |
| Drain To Source Voltage (Vdss) | 100 V | Current - Continuous Drain (Id) @ 25°C | 4.5A |
| Rds On (Max) @ Id, Vgs | 62mOhm @ 4.5A, 10V | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V | Input Capacitance (Ciss) (Max) @ Vds | 750pF @ 25V |
| Power - Max | 2.5W | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | ||
| High Light | FDS3992,n channel mosfet array,channel mosfet array IC |
||
Product Description
FDS3992 Mosfet Array 100V 4.5A 2.5W Surface Mount 8-SOIC
Datasheet:FDS3992
| Category | FET, MOSFET Arrays |
| Mfr | onsemi |
| Series | PowerTrench |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A |
| Rds On (Max) @ Id, Vgs | 62mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 750pF @ 25V |
| Power - Max | 2.5W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | FDS39 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
| Other Names | FDS3992TR |
| FDS3992CT | |
| FDS3992DKR | |
| FDS3992-ND | |
| Standard Package | 2500 |
Data Picture:https://www.onsemi.com/pdf/datasheet/fds3992-d.pdf
