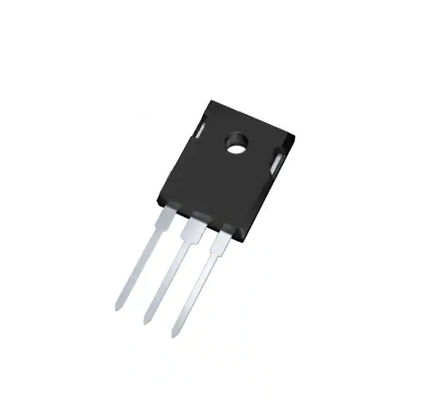

IMZ120R090M1H INFINEON N Channel Mosfet Diode 1200 V 26A Tc 115W Tc Hrough Hole PG-TO247-4-1
| Place of Origin | United States |
|---|---|
| Brand Name | Infineon Technologies |
| Certification | RoHS |
| Model Number | IMZ120R090M1H |
| Minimum Order Quantity | 30 PCS |
| Price | Negotiable |
| Packaging Details | 30 PCS/Tube |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 18K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Single FETs, MOSFETs | Mfr | Infineon Technologies |
|---|---|---|---|
| Series | CoolSiC | Product Status | Active |
| FET Type | N-Channel | Technology | SiCFET (Silicon Carbide) |
| Drain To Source Voltage (Vdss) | 1200 V | Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V | Rds On (Max) @ Id, Vgs | 117mOhm @ 8.5A, 18V |
| Vgs(th) (Max) @ Id | 5.7V @ 3.7mA | Gate Charge (Qg) (Max) @ Vgs | 21 NC @ 18 V |
| Vgs (Max) | +23V, -7V | Input Capacitance (Ciss) (Max) @ Vds | 707 PF @ 800 V |
| Power Dissipation (Max) | 115W (Tc) | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Supplier Device Package | PG-TO247-4-1 |
| Package / Case | TO-247-4 | ||
| High Light | n channel mosfet diode,IMZ120R090M1H INFINEON,diode through hole |
||
Product Description
IMZ120R090M1H N-Channel 1200 V 26A (Tc) 115W (Tc) Through Hole PG-TO247-4-1
Features:IMZ120R090M1H
| Category | Single FETs, MOSFETs |
| Mfr | Infineon Technologies |
| Series | CoolSiC |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 117mOhm @ 8.5A, 18V |
| Vgs(th) (Max) @ Id | 5.7V @ 3.7mA |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 18 V |
| Vgs (Max) | +23V, -7V |
| Input Capacitance (Ciss) (Max) @ Vds | 707 pF @ 800 V |
| Power Dissipation (Max) | 115W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO247-4-1 |
| Package / Case | TO-247-4 |
| Base Product Number | IMZ120 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
| Other Names | 448-IMZ120R090M1HXKSA1 |
| IMZ120R090M1HXKSA1-ND | |
| SP001946182 | |
| Standard Package | 30 |
Data Picture:https://www.infineon.com/dgdl/Infineon-IMZ120R090M1H-DS-v01_01-EN.pdf?fileId=5546d46269e1c019016a92fda8396690
|
±
|
