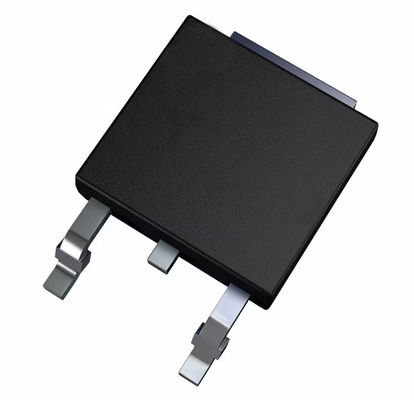

FGD3N60UNDF Discrete Semiconductor Products IGBT NPT 600V 6 A 60W Surface Mount TO-252AA

Place of Origin United States
Brand Name onsemi
Certification RoHS
Model Number FGD3N60UNDF
Minimum Order Quantity 2500PCS
Price Negotiable
Packaging Details 2500PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 2.5K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Onsemi Category Single IGBTs
Product Number FGD3N60UNDF IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 600 V Current - Collector (Ic) (Max) 6A
Current - Collector Pulsed (Icm) 9A Vce(on) (Max) @ Vge, Ic 2.52V @ 15V, 3A
Power - Max 60W Switching Energy 52µJ (on), 30µJ (off)
Input Type Standard Gate Charge 1.6 NC
Td (on/off) @ 25°C 5.5ns/22ns Test Condition 400V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr) 21 Ns Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252AA
High Light

FGD3N60UNDF

,

Discrete Semiconductor Products

,

diode and transistor

Leave a Message
Product Description

FGD3N60UNDF IGBT NPT 600 V 6 A 60 W Surface Mount TO-252AA



Datasheet:FGD3N60UNDF

Category Single IGBTs
Mfr onsemi
Product Status Obsolete
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 6 A
Current - Collector Pulsed (Icm) 9 A
Vce(on) (Max) @ Vge, Ic 2.52V @ 15V, 3A
Power - Max 60 W
Switching Energy 52µJ (on), 30µJ (off)
Input Type Standard
Gate Charge 1.6 nC
Td (on/off) @ 25°C 5.5ns/22ns
Test Condition 400V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr) 21 ns
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252AA
Base Product Number FGD3N60

Additional Resources

ATTRIBUTE DESCRIPTION
Other Names FGD3N60UNDFCT
  FGD3N60UNDFTR
  FGD3N60UNDFDKR
Standard Package 2500







Data Picture:https://www.onsemi.com/pdf/datasheet/fgd3n60undf-d.pdf
FGD3N60UNDF Discrete Semiconductor Products IGBT NPT 600V 6 A 60W Surface Mount TO-252AA 0
