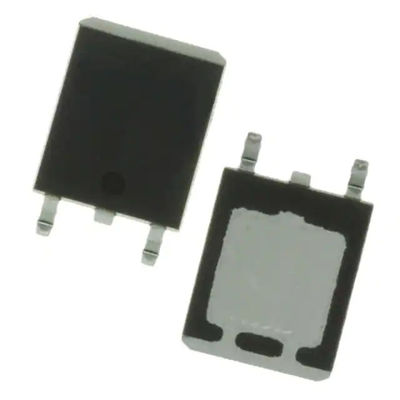

ATP114-TL-H Diode Transistor P-Channel Mosfet 60 V 55A Ta 60W Tc Surface Mount ATPAK

Place of Origin United States
Brand Name onsemi
Certification RoHS
Model Number ATP114-TL-H
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Tube
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 3K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Category Single FETs, MOSFETs Mfr Onsemi
FET Type P-Channel Technology MOSFET (Metal Oxide)
Drain To Source Voltage (Vdss) 60 V Current - Continuous Drain (Id) @ 25°C 55A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V Rds On (Max) @ Id, Vgs 16mOhm @ 28A, 10V
Gate Charge (Qg) (Max) @ Vgs 92 NC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4000 PF @ 20 V Power Dissipation (Max) 60W (Tc)
Operating Temperature 150°C (TJ) Mounting Type Surface Mount
Supplier Device Package ATPAK Package / Case ATPAK (2 Leads+Tab)
High Light

P-Channel Mosfets 60 V 55A Ta 60W Tc ATP114-TL-H

,

P-Channel Mosfets 60 V Ta 60W Tc ATP114-TL-H

,

P-Channel Mosfets 60 V Ta 60W ATP114-TL-H

Leave a Message
Product Description

ATP114-TL-H P-Channel 60 V 55A (Ta) 60W (Tc) Surface Mount ATPAK



Features:ATP114-TL-H

Category Single FETs, MOSFETs
Mfr onsemi
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 55A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V
Rds On (Max) @ Id, Vgs 16mOhm @ 28A, 10V
Gate Charge (Qg) (Max) @ Vgs 92 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4000 pF @ 20 V
Power Dissipation (Max) 60W (Tc)
Operating Temperature 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package ATPAK
Package / Case ATPAK (2 Leads+Tab)
Base Product Number ATP114

Additional Resources

ATTRIBUTE DESCRIPTION
Other Names ATP114-TL-HOSDKR
  ATP114-TL-HOSTR
  ATP114-TL-H-ND
  ATP114-TL-HOSCT
Standard Package 3000



Data Picture:https://www.mouser.cn/datasheet/2/308/1/ATP114_D-2310176.pdf
