RGS80TSX2DHRC11 TO-247N ROHM Semiconductor IGBT Trench Field Stop 1200 V 80 A 555 W
| Place of Origin | Japan |
|---|---|
| Brand Name | ROHM |
| Certification | RoHS |
| Model Number | RGS80TSX2DHRC11 |
| Minimum Order Quantity | 30 PCS |
| Price | Negotiable |
| Packaging Details | 30 PCS/Tube |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Single IGBTs | Mfr | Rohm Semiconductor |
|---|---|---|---|
| Package | Tube | IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 120 A | Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 40A |
| Power - Max | 555 W | Input Type | Standard |
| Gate Charge | 104 NC | Test Condition | 600V, 40A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 198 Ns | Operating Temperature | -40°C ~ 175°C |
| Mounting Type | Through Hole | Supplier Device Package | TO-247N |
| High Light | RGS80TSX2DHRC11,IGBT Trench Field Stop,to-247n rohm |
||
Product Description

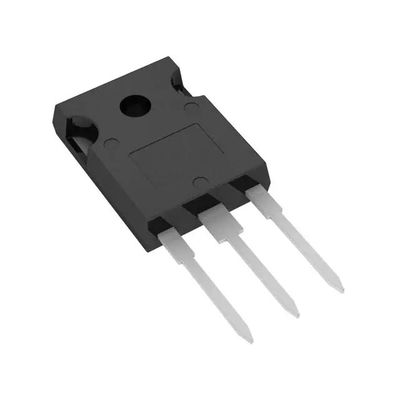

RGS80TSX2DHRC11 IGBT Trench Field Stop 1200 V 80 A 555 W Through Hole TO-247N
Features:
●Low Collector - Emitter Saturation Voltage
●Short Circuit Withstand Time 10μs
●Qualified to AEC-Q101
●Built in Very Fast & Soft Recovery FRD
●Pb - free Lead Plating ; RoHS Compliant
Description:
RGS Field Stop Trench Automotive IGBTs
ROHM Semiconductor RGS Field Stop Trench Automotive IGBTs are AEC-Q101 rated automotive IGBTs that
are available in 1200V and 650V variants. These IGBTs deliver class-leading low conduction loss that contributes
to reducing the size and improving the efficiency of applications. The RGS IGBTs utilize original trench-gate and
thin-wafer technologies. These technologies help to achieve low collector-emitter saturation voltage (VCE(sat)) with
reduced switching losses. These IGBTs provide increased energy savings in a variety of high voltage and high current
applications.
Quick Detail:
|
Manufacturer
|
Rohm Semiconductor
|
|
Manufacturer Product Number
|
RGS80TSX2DHRC11
|
|
Description
|
IGBT TRENCH FLD 1200V 80A TO247N
|
|
Detailed Description
|
IGBT Trench Field Stop 1200 V 80 A 555 W Through Hole TO-247N
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Single IGBTs
|
|
Mfr
|
Rohm Semiconductor
|
|
Product Status
|
Active
|
|
IGBT Type
|
Trench Field Stop
|
|
Voltage - Collector Emitter Breakdown (Max)
|
1200 V
|
|
Current - Collector (Ic) (Max)
|
80 A
|
|
Current - Collector Pulsed (Icm)
|
120 A
|
|
Vce(on) (Max) @ Vge, Ic
|
2.1V @ 15V, 40A
|
|
Power - Max
|
555 W
|
|
Switching Energy
|
3mJ (on), 3.1mJ (off)
|
|
Input Type
|
Standard
|
|
Gate Charge
|
104 nC
|
|
Td (on/off) @ 25°C
|
49ns/199ns
|
|
Test Condition
|
600V, 40A, 10Ohm, 15V
|
|
Reverse Recovery Time (trr)
|
198 ns
|
|
Operating Temperature
|
-40°C ~ 175°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
TO-247-3
|
|
Supplier Device Package
|
TO-247N
|
|
Base Product Number
|
RGS80
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 846-RGS80TSX2DHRC11 |
| Standard Package | 30 |
Data Picture:https://fscdn.rohm.com/en/products/databook/datasheet/discrete/igbt/rgs80tsx2dhr-e.pdf
