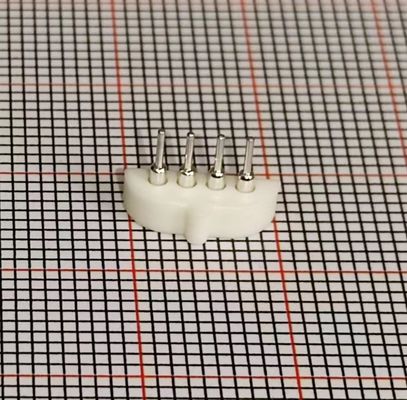

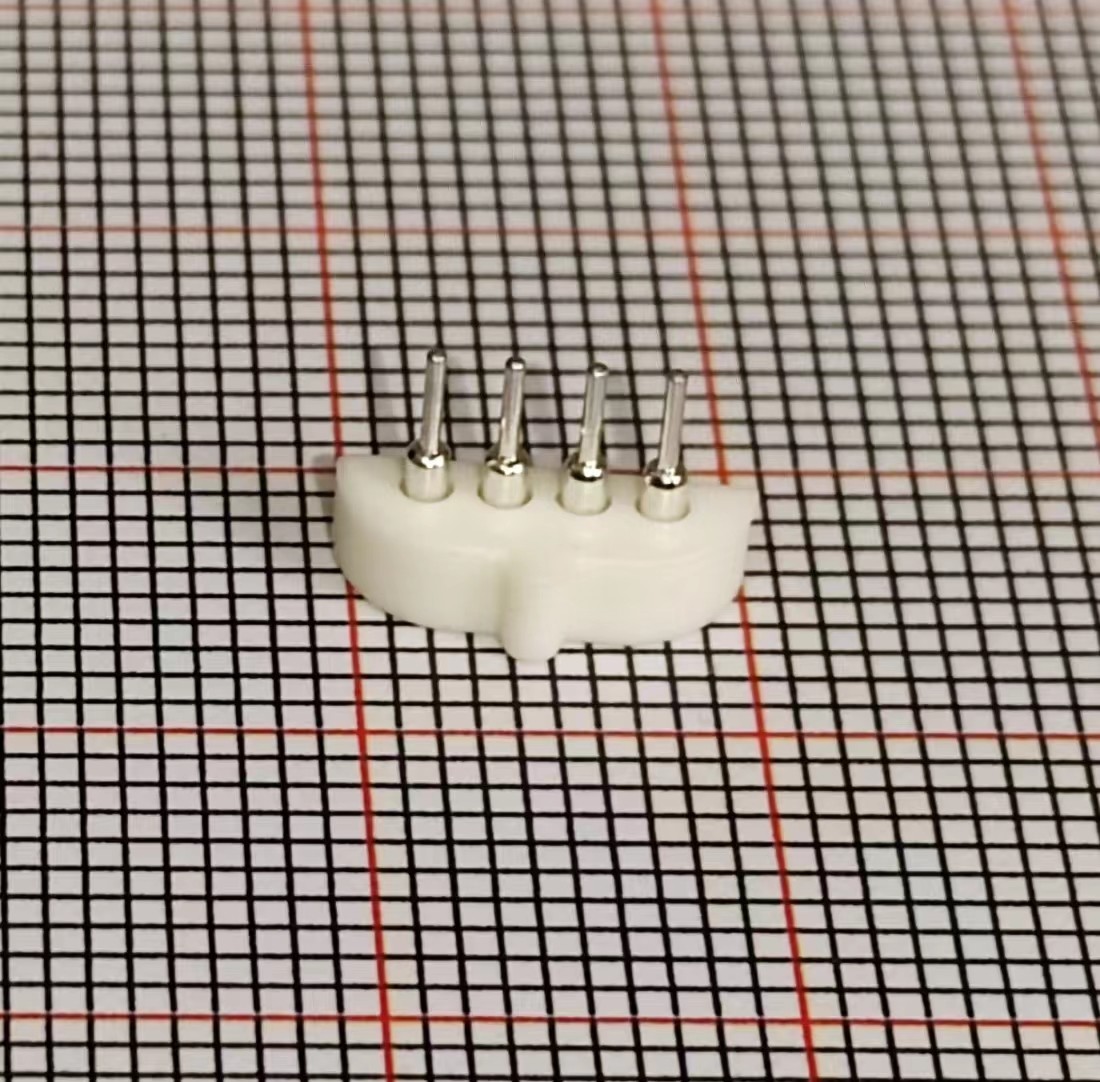

2mm Female Header 4 Pin 1x4P Curved Belt Convex

Place of Origin CHINA
Brand Name Terastor
Certification RoHS
Model Number 2.0-1*4P Female
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Bag
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Catalogue Female Header Rows Single Row
Pitch 2.0mm Plastic Height 3.0mm
Pin Length 7.4mm Jack Diameter 1.12mm
Jack Structure 1*4P Jack Type Round Hole
Jack Direction Top Installation Type In-line
Contact Material Inner Gold And Outer Tin Plastic Material White PBT
Operaling Temperature -40°C To105°C Soldering Temperature +245°C
Current Rating 3Amps/contact Max
High Light

2mm female header

,

2mm pitch header

,

2.0 pin header

Leave a Message
Product Description

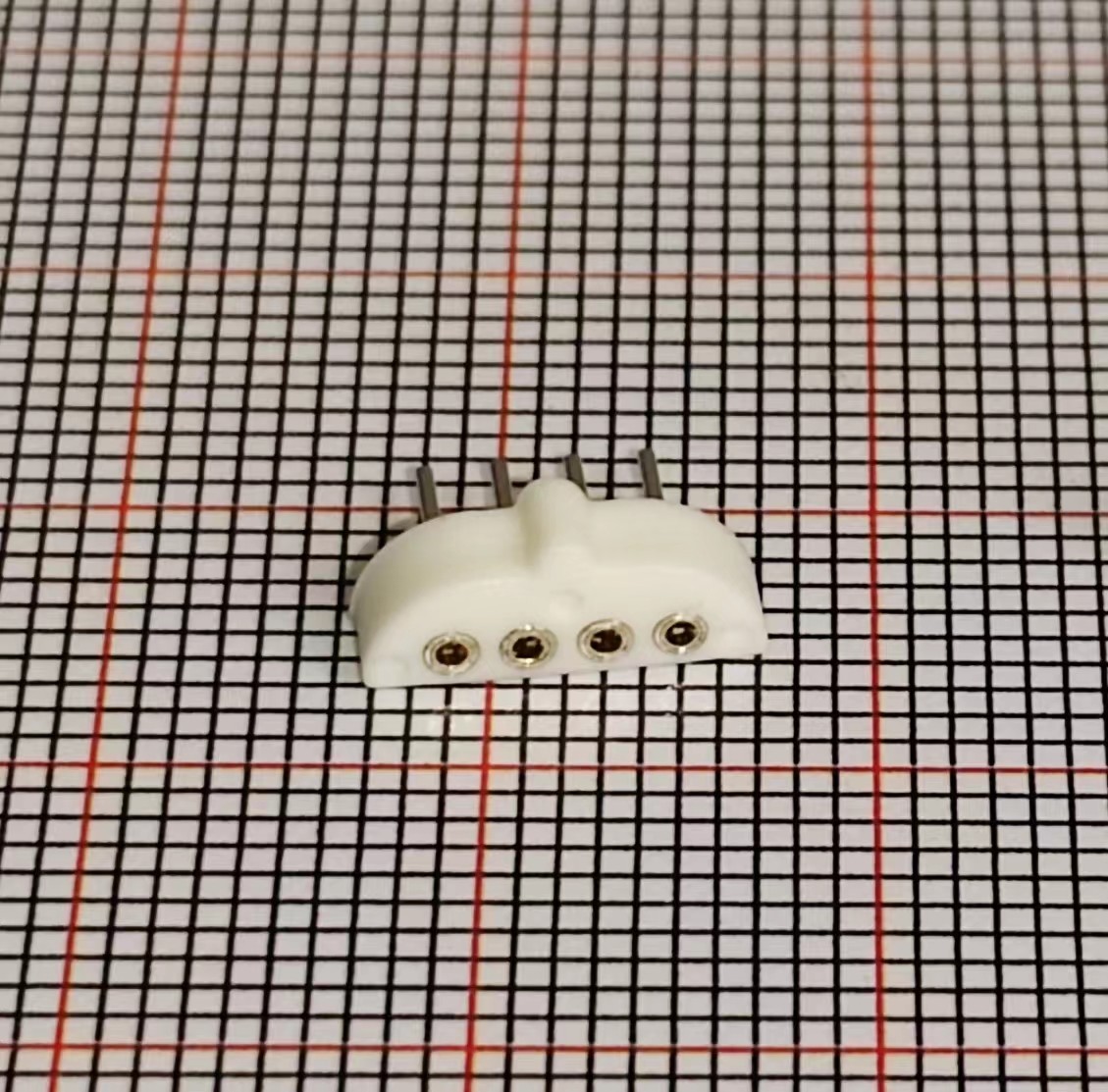

Terastor Round hole socket/Female Header 2.0mm 1*4P Curved belt convex

Technical Data
Materlal:
Pin(outer sleeve):Brass, machined CuZn38Pb2
Plating(outer sleeve):
Tin Plated:2pm/80pm"NI,5um/200p"Sn
Gold Plated:2um/80pm~Ni,0.8u”gold
Plating(Contact ):2um/80uNI,gold or Tin plated
Insuiator:PBT UL94V-0
Cllp(Contact 4 Flnger):Beryllium copper,heat teated
Electrical;
Current rating:3Amps/contact max.Contact resistance:Max. 10MQ
Dleiectric strength:Min.1000V
Mechanical:
Average Insertion force with steel pin of g0. 432:<90gAverage withdrawal force with steel pin of @0.432:>25gMechanical lige:min 500 cycleOperaling temperature:-40°C to105°CSoldering temperature:+245°C
