2x5 5 Pin Female Pin Header 2.54 Mm Pitch

Place of Origin CHINA
Brand Name Terastor
Certification RoHS
Model Number 2.54-2*5P Female
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Bag
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Catalogue Female Header Rows Double Row
Pitch 2.54mm Plastic Height 3.0mm
Pin Length 6.0mm Jack Diameter 1.12mm
Jack Structure 2*5P Jack Type Round Hole
Jack Direction Top Installation Type In-line
Contact Material Inner Gold And Outer Tin Plastic Material PPS
High Light

2x5 pin header female


5 pin female header


2.54 mm pitch pin header

Leave a Message
Product Description

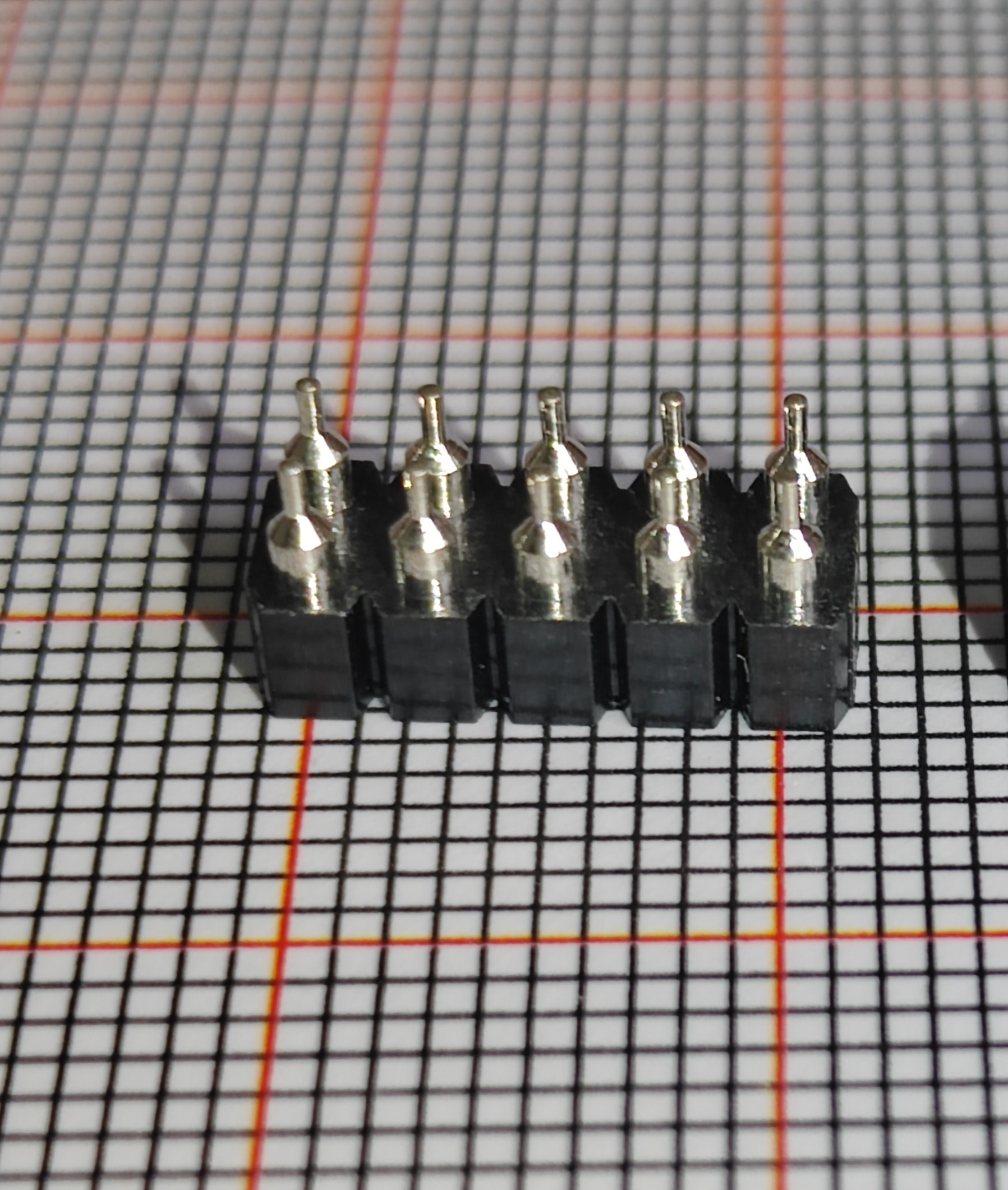

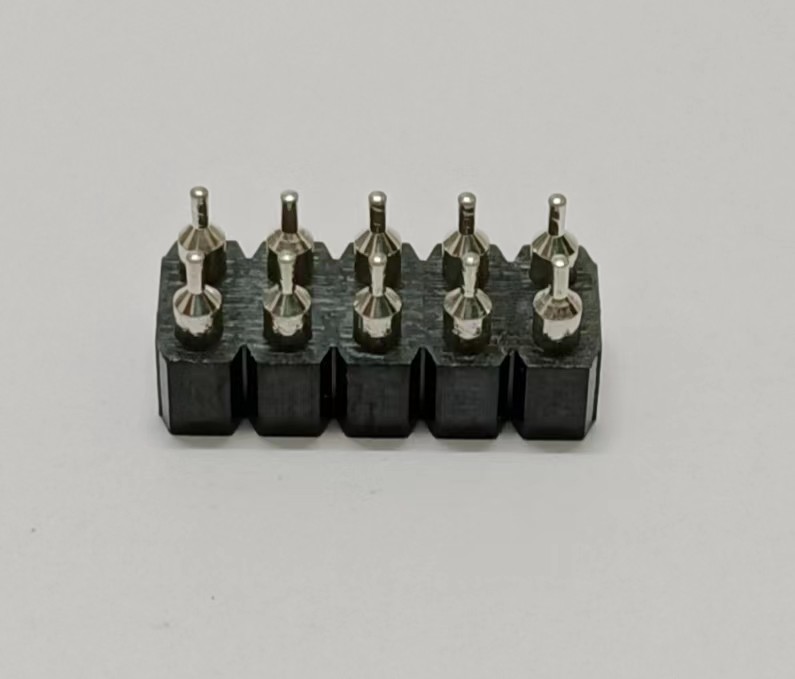

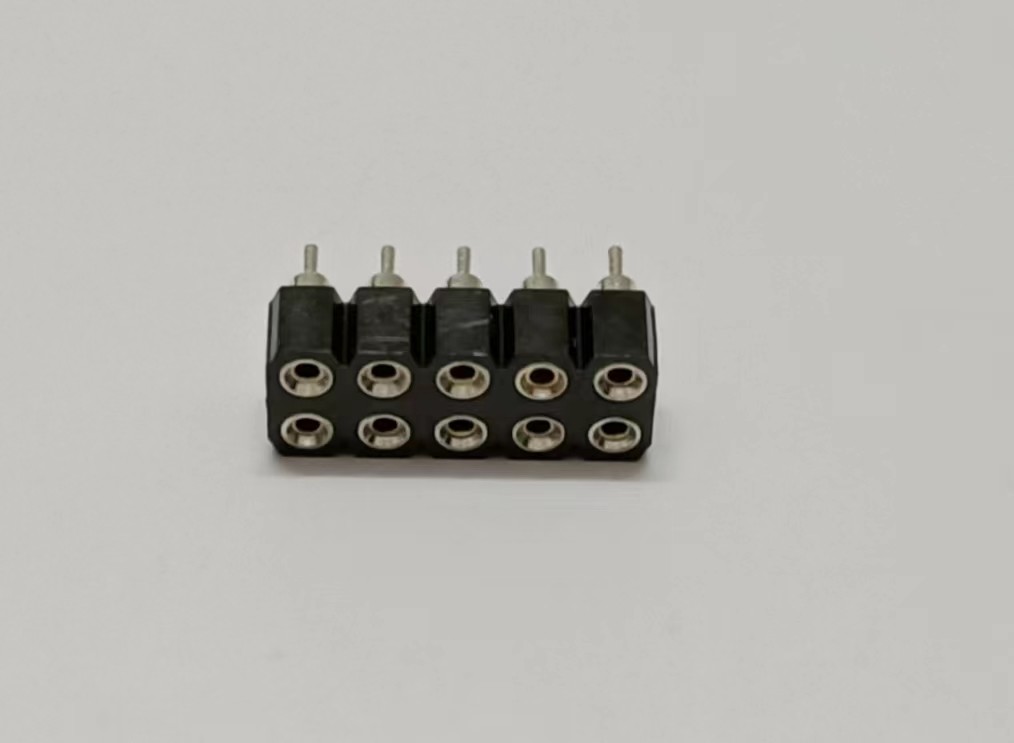

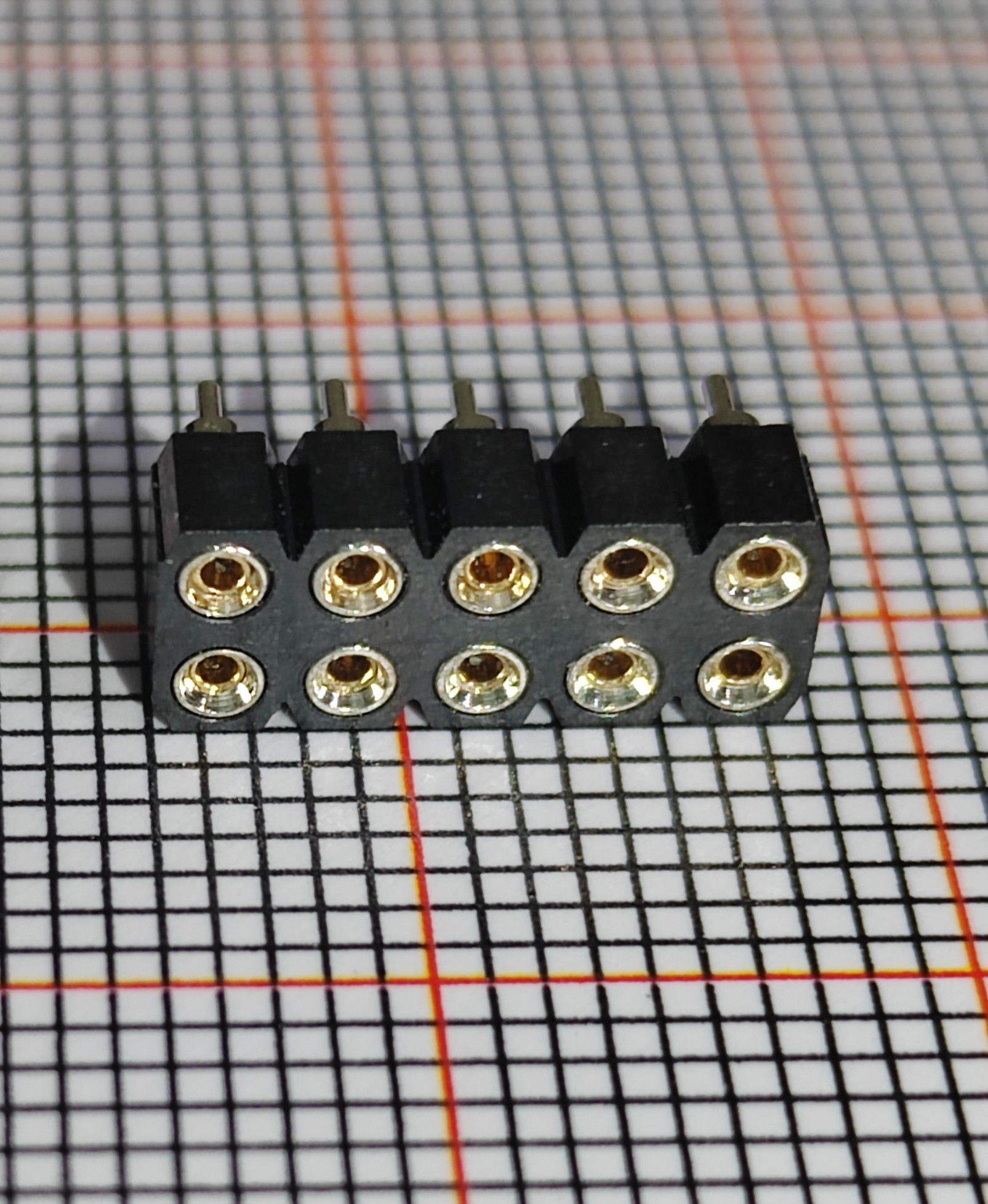

Terastor Round hole socket/Female Header 2.54mm 2*5P

Pin(outer sleeve):Brass, machined CuZn38Pb2Plating(outer sleeve):Tin Plated:2pm/80p"NI5pm/200p"SnGold Plated:2ym"/80~Ni,0.8p”goldPlating(Contact ):2pm/80y"NI, gold or Tin platedInsuiator:PPS UL94V-0
Cllp(Contact 4 FInger):Beryllium copper, heat teated
Current rating:3Amps/contact max.Contact resistance:≤20mQ/contactInsuiation resistance:>1000M贝 at V=100VDleiectrlc Withstanding Voltage:1000V AV MinOperaling voltage:60VAC/DC
Mechanical:Average Insertlon force with steel pin of 9 0. 432mm:<250gAverage withdrawal force with steel pin of g0.432mm:<70gMechanlcal lige cycle:min 500Operaling temperature:-40C to+105”CSoldering temperature:+255°C
