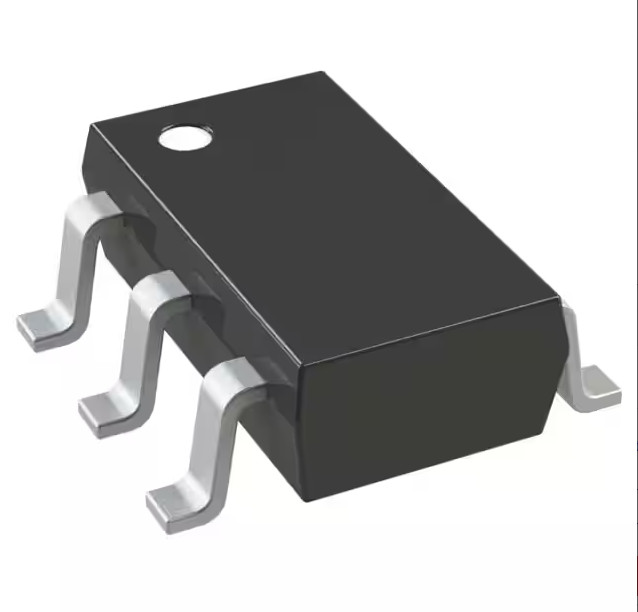

TSC101AILT Current Sense Amplifier IC 1 Circuit SOT-23-5
| Place of Origin | STMicroelectronics |
|---|---|
| Brand Name | ST |
| Certification | RoHS |
| Model Number | TSC101AILT |
| Minimum Order Quantity | 3000 PCS |
| Price | Negotiable |
| Packaging Details | 3000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | TSC101AILT | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps | Amplifier Type | Current Sense |
| Number Of Circuits | 1 | Slew Rate | 0.9V/µs |
| -3db Bandwidth | 500 KHz | Current - Input Bias | 5.5 µA |
| Voltage - Input Offset | 200 µV | Current - Supply | 165µA |
| Current - Output / Channel | 60 MA | Voltage - Supply Span (Min) | 4.V |
| Voltage - Supply Span (Max) | 24V | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | ||
| High Light | TSC101AILT,Current Sense Amplifier IC,current amplifier ic |
||
Product Description
TSC101AILT Current Sense Amplifier IC 1 Circuit SOT-23-5
Description:
The TSC101 measures a small differential voltage on a high-side shunt resistor and translates it into
a ground-referenced output voltage. The gain is internally fixed.
Quick Detail:
|
Manufacturer
|
STMicroelectronics
|
|
Manufacturer Product Number
|
TSC101AILT
|
|
Description
|
IC CURR SENSE 1 CIRCUIT SOT23-5
|
|
Detailed Description
|
Current Sense Amplifier 1 Circuit SOT-23-5
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
STMicroelectronics
|
|
Product Status
|
Active
|
|
Amplifier Type
|
Current Sense
|
|
Number of Circuits
|
1
|
|
Slew Rate
|
0.9V/µs
|
|
-3db Bandwidth
|
500 kHz
|
|
Current - Input Bias
|
5.5 µA
|
|
Voltage - Input Offset
|
200 µV
|
|
Current - Supply
|
165µA
|
|
Current - Output / Channel
|
60 mA
|
|
Voltage - Supply Span (Min)
|
4 V
|
|
Voltage - Supply Span (Max)
|
24 V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
|
Base Product Number
|
TSC101
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
497-6945-1
|
|
497-6945-2
|
|
|
497-6945-6
|
|
|
TSC101AILT-ND
|
|
| Standard Package | 3000 |
Features
■ Independent supply and input common-mode voltages
■ Wide common-mode operating range: 2.8 to 30 V
■ Wide common-mode surviving range: -0.3 to 60 V (load-dump)
■ Wide supply voltage range: 4 to 24 V
■ Low current consumption: ICC max = 300 µA
■ Internally fixed gain: 20 V/V, 50 V/V or 100 V/V
■ Buffered output
Applications
■ Automotive current monitoring
■ Notebook computers
■ DC motor controls
■ Photovoltaic systems
■ Battery chargers
■ Precision current sources
