LM358DT Operational Power Driver Op Amp Ic Dual Low Noise

Place of Origin STMicroelectronics
Brand Name ST
Certification RoHS
Model Number LM358DT
Minimum Order Quantity 2500 PCS
Price Negotiable
Packaging Details 2500 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Number LM358DT Category Operational Amplifiers - Op Amps
Mfr STMicroelectronics Series Automotive, AEC-Q100
Package Tape & Reel (TR)/Cut Tape (CT) Amplifier Type General Purpose
Number Of Circuits 2 Slew Rate 0.6V/µs
Gain Bandwidth Product 800 KHz Current - Input Bias 20 NA
Voltage - Input Offset 2 MV Current - Supply 700µA (x2 Channels)
Current - Output / Channel 30 MA Voltage - Supply Span (Min) 3 V
Voltage - Supply Span (Max) 30 V Operating Temperature 0°C ~ 70°C
High Light

driver op amp

,

amplifier ic for mobile

,

operational amplifier using ic

Leave a Message
Product Description

LM358DT Operational Amplifiers IC Op Amps Dual Low Power



Description:

These circuits consist of two independent, highgain, internally frequency-compensated op amps,

specifically designed to operate from a single power supply over a wide range of voltages. The

low-power supply drain is independent of the magnitude of the power supply voltage.



Quick Detail:

Packaging
Tape & Reel (TR)/Cut Tape (CT)
Manufacturer
STMicroelectronics
Manufacturer Product Number
LM358DT
Description
IC OPAMP GP 2 CIRCUIT 8SOIC
Detailed Description
General Purpose Amplifier 2 Circuit 8-SOIC



Product Attributes:

TYPE
DESCRIPTION
Category
Instrumentation, OP Amps, Buffer Amps
Mfr
STMicroelectronics
Series
Automotive, AEC-Q100
Package
Tape & Reel (TR)/Cut Tape (CT)
Product Status
Active
Amplifier Type
General Purpose
Number of Circuits
2
Slew Rate
0.6V/µs
Gain Bandwidth Product
800 kHz
Current - Input Bias
20 nA
Voltage - Input Offset
2 mV
Current - Supply
700µA (x2 Channels)
Current - Output / Channel
30 mA
Voltage - Supply Span (Min)
3 V
Voltage - Supply Span (Max)
30 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Base Product Number
LM358



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names
497-1591-6
497-1591-1
497-LM358DTTR-NDL
497-1591-1-NDR
497-1591-2-NDR
497-1591-2
Standard Package 2500

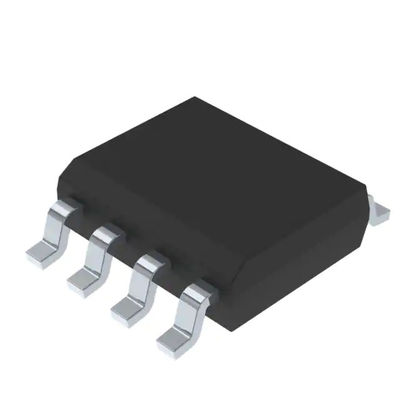

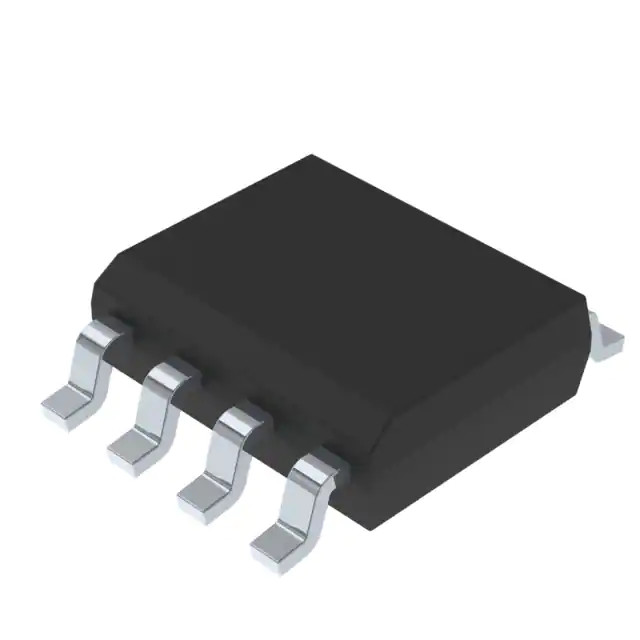

Data Picture:

LM358DT Operational Power Driver Op Amp Ic Dual Low Noise 0
