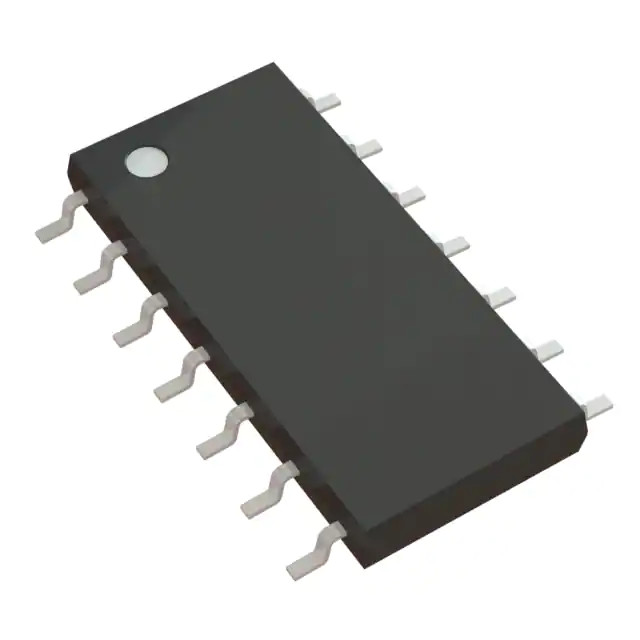

TL074CDT J-FET Amplifier Driver Ic 4 Circuit 14-SO
| Place of Origin | STMicroelectronics |
|---|---|
| Brand Name | ST |
| Certification | RoHS |
| Model Number | TL074CDT |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Instrumentation, OP Amps, Buffer Amps | Mfr | STMicroelectronics |
|---|---|---|---|
| Package | Tape & Reel (TR)/Cut Tape (CT) | Amplifier Type | J-FET |
| Number Of Circuits | 4 | Slew Rate | 13V/µs |
| Gain Bandwidth Product | 3 MHz | Current - Input Bias | 30 PA |
| Voltage - Input Offset | 3 MV | Current - Supply | 1.4mA (x4 Channels) |
| Current - Output / Channel | 40 MA | Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 36 V | Operating Temperature | Operating Temperature |
| High Light | TL074CDT,amplifier driver ic,tl074cdt datasheet |
||
Product Description
TL074CDT J-FET Amplifier IC 4 Circuit 14-SO
Description:
The TL074, TL074A, and TL074B are high-speed JFET input single operational amplifiers.
Each of these JFET input operational amplifiers incorporates well matched, high-voltage JFET
and bipolar transistors in a monolithic integrated circuit.
Quick Detail:
|
Manufacturer
|
STMicroelectronics
|
|
Manufacturer Product Number
|
TL074CDT
|
|
Description
|
IC OPAMP JFET 4 CIRCUIT 14SO
|
|
Detailed Description
|
J-FET Amplifier 4 Circuit 14-SO
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
STMicroelectronics
|
|
Product Status
|
Active
|
|
Amplifier Type
|
J-FET
|
|
Number of Circuits
|
4
|
|
Slew Rate
|
13V/µs
|
|
Gain Bandwidth Product
|
3 MHz
|
|
Current - Input Bias
|
30 pA
|
|
Voltage - Input Offset
|
3 mV
|
|
Current - Supply
|
1.4mA (x4 Channels)
|
|
Current - Output / Channel
|
40 mA
|
|
Voltage - Supply Span (Min)
|
6 V
|
|
Voltage - Supply Span (Max)
|
36 V
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
14-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
14-SO
|
|
Base Product Number
|
TL074
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
497-2204-6
|
|
497-2204-1
|
|
|
497-2204-1-NDR
|
|
|
497-2204-2-NDR
|
|
|
497-2204-2
|
|
| Standard Package | 2500 |
Features
• Wide common-mode (up to VCC+) and differential voltage range
• Low input bias and offset current
• Low noise en = 15 nV/ √Hz (typ)
• Output short-circuit protection
• High input impedance JFET input stage
• Low harmonic distortion: 0.01% (typical)
• Internal frequency compensation
• Latch up free operation
• High slew rate: 16 V/µs (typical)
Data Picture:
