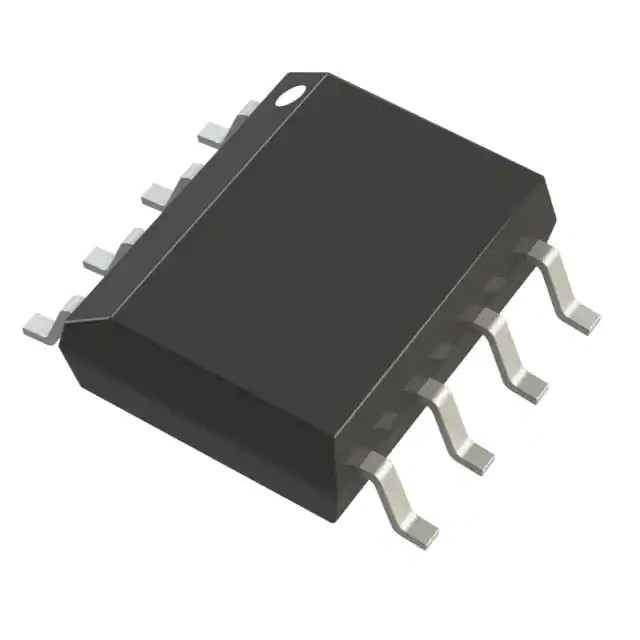

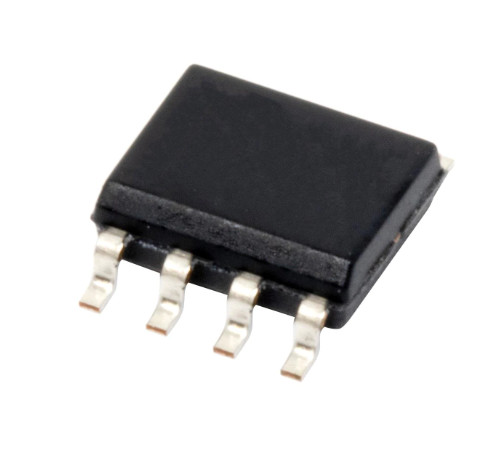

SSM2211SZ-REEL7 1-Channel Amplifier IC Circuit Mono Class AB 8-SOIC Package
| Place of Origin | Analog Devices Inc. |
|---|---|
| Brand Name | ADI |
| Certification | RoHS |
| Model Number | SSM2211SZ-REEL7 |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Tube |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Differential Inputs, Shutdown | Product Number | SSM2211SZ-REEL7 |
|---|---|---|---|
| Category | Audio Amplifiers | Manufacturer | Analog Devices Inc. |
| Product Status | Active | Series | SSM2211 |
| Type | Class AB | Output Type | 1-Channel |
| Max Output Power X Channels @ Load | 1.5W X 1 @ 4Ohm | Voltage - Supply | 2.7V ~ 5.5V |
| Mounting Type | Surface Mount | Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 8-SOIC | Operating Supply Current | 4.2 MA |
| High Light | SSM2211SZ-REEL7,amplifier ic circuit,8-soic package |
||
Product Description
Description:
The SSM22111 is a high performance audio amplifier that delivers 1 W rms of low distortion audio power into a bridgeconnected 8 Ω
speaker load (or 1.5 W rms into a 4 Ω load). The SSM2211 operates over a wide temperature range and is specified for single-supply
voltages between 2.7 V and 5.5 V. When operating from batteries, it continues to operate down to 1.75 V. This makes the SSM2211 the
best choice for unregulated applications, such as toys and games. Featuring a 4 MHz bandwidth and distortion below 0.2% total harmonic
distortion plus noise (THD + N) at 1 W, superior performance is delivered at higher power or lower speaker load impedance than competitive
units. Furthermore, when the ambient temperature is at 25°C, THD + N < 1%, and VS = 5 V on a 4-layer printed circuit board (PCB), the
SSM2211 delivers a 1.5 W output.
Quick Detail:
|
Manufacturer
|
Analog Devices Inc. |
|
Manufacturer Product Number
|
SSM2211SZ-REEL7 |
|
Description
|
IC AMP CLASS AB MONO 1.5W 8SOIC |
|
Detailed Description
|
Amplifier IC 1-Channel (Mono) Class AB 8-SOIC |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Audio Amplifiers |
|
Mfr
|
Analog Devices Inc.
|
|
Product Status
|
Active
|
|
Type
|
Class AB
|
|
Output Type
|
1-Channel (Mono)
|
|
Max Output Power x Channels @ Load
|
1.5W x 1 @ 4Ohm
|
|
Voltage - Supply
|
2.7V ~ 5.5V
|
|
Features
|
Differential Inputs, Shutdown
|
|
Mounting Type
|
Surface Mount
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Supplier Device Package
|
8-SOIC
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Base Product Number
|
SSM2211
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
SSM2211SZ-REEL7CT-ND
|
|
2156-SSM2211SZ-REEL7
|
|
|
SSM2211SZ-REEL7-ND
|
|
|
SSM2211SZ-REEL7DKR-ND
|
|
|
SSM2211SZREEL7
|
|
|
SSM2211SZ-REEL7TR
|
|
|
SSM2211SZ-REEL7DKR
|
|
|
-2735-SSM2211SZ-REEL7DKR
|
|
|
505-SSM2211SZ-REEL7TR
|
|
|
-2735-SSM2211SZ-REEL7CT
|
|
|
SSM2211SZ-REEL7CT
|
|
|
505-SSM2211SZ-REEL7CT
|
|
|
SSM2211SZ-REEL7TR-ND
|
|
|
ANAANASSM2211SZ-REEL7
|
|
|
505-SSM2211SZ-REEL7DKR
|
|
| Standard Package | 1000 |
