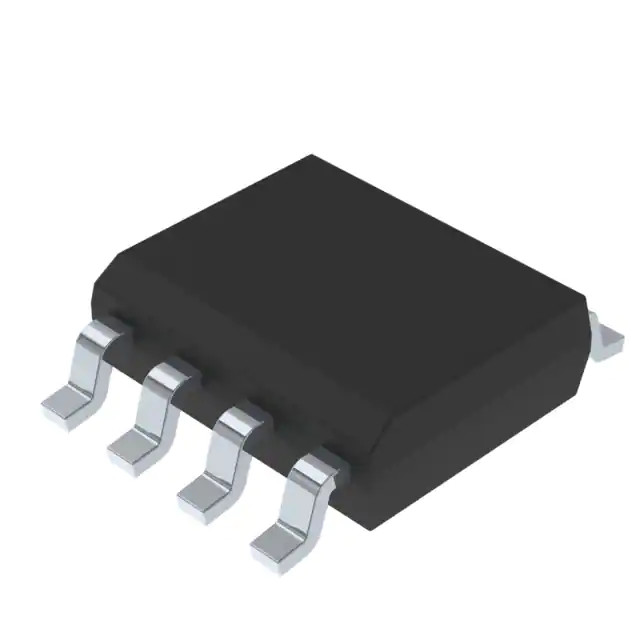

TL072CDT Low Noise Amplifier IC Board Dual Operational Amplifiers Op Amps JFET
| Place of Origin | STMicroelectronics |
|---|---|
| Brand Name | ST |
| Certification | RoHS |
| Model Number | TL072CDT |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Operational Amplifiers - Op Amps | Mfr | STMicroelectronics |
|---|---|---|---|
| Series | Automotive, AEC-Q100 | Package | Tape & Reel (TR)/Cut Tape (CT) |
| Amplifier Type | J-FET | Number Of Circuits | 2 |
| Slew Rate | 16V/µs | Gain Bandwidth Product | 4 MHz |
| Current - Input Bias | 20 PA | Voltage - Input Offset | 3 MV |
| Current - Supply | 1.4mA | Current - Output / Channel | 40 MA |
| Operating Temperature | 0°C ~ 70°C | ||
| Highlight | TL072CDT,amplifier ic board,dual operational amplifier ic |
||
Product Description
Description:
The TL072, TL072A, and TL072B are high speed JFET input dual operational amplifiers incorporating
well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.
Quick Detail:
|
Manufacturer
|
STMicroelectronics
|
|
Manufacturer Product Number
|
TL072CDT
|
|
Description
|
IC OPAMP JFET 2 CIRCUIT 8SOIC
|
|
Detailed Description
|
J-FET Amplifier 2 Circuit 8-SOIC
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
STMicroelectronics
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Amplifier Type
|
J-FET
|
|
Slew Rate
|
16V/µs
|
|
Gain Bandwidth Product
|
4 MHz
|
|
Current - Input Bias
|
20 pA
|
|
Voltage - Input Offset
|
3 mV
|
|
Current - Supply
|
1.4mA
|
|
Current - Output / Channel
|
40 mA
|
|
Voltage - Supply Span (Min)
|
6 V
|
|
Voltage - Supply Span (Max)
|
36 V
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
TL072
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
497-2200-1
|
|
497-2200-1-NDR
|
|
| Standard Package | 2500 |
Features
• Wide common-mode (up to VCC + ) and differential voltage range
• Low input bias and offset current
• Low noise en = 15 nV/√Hz (typ)
• Output short-circuit protection
• High input impedance JFET input stage
• Low harmonic distortion: 0.01 % (typical)
• Internal frequency compensation
• Latch-up free operation
• High slew rate: 16 V/µs (typ)
Related products
• See TL071 for single op amp version
• See TL074 for quad op amp version

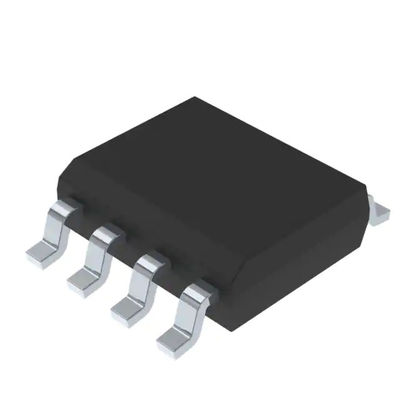

Data Picture:
