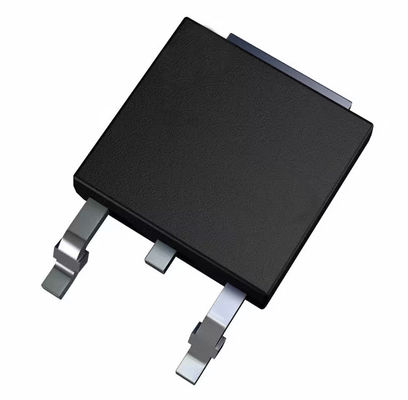

FCD1300N80Z Fet N Channel Mosfet Circuit 800V 4A Tc 52W Tc Surface Mount TO-252AA
| Place of Origin | United States |
|---|---|
| Brand Name | onsemi |
| Certification | RoHS |
| Model Number | FCD1300N80Z |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 12.5K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Onsemi | Category | Single FETs, MOSFETs |
|---|---|---|---|
| Product Number | FCD1300N80Z | Series | SuperFET® II |
| Product Status | Not For New Designs | Technology | MOSFET (Metal Oxide) |
| Drain To Source Voltage (Vdss) | 800 V | Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 1.3Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 400µA | Gate Charge (Qg) (Max) @ Vgs | 21 NC @ 10 V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 880 PF @ 100 V |
| Power Dissipation (Max) | 52W (Tc) | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252AA | ||
| High Light | n channel mosfet circuit,n fet switch circuit,FCD1300N80Z |
||
Product Description
FCD1300N80Z N-Channel 800 V 4A (Tc) 52W (Tc) Surface Mount TO-252AA
Datasheet:FCD1300N80Z
| Category | Single FETs, MOSFETs |
| Mfr | onsemi |
| Series | SuperFET II |
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.3Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @400µA |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 880 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 52W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252AA |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Base Product Number | FCD1300 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
| Other Names | FCD1300N80ZCT |
| ONSONSFCD1300N80Z | |
| FCD1300N80ZDKR | |
| FCD1300N80ZTR | |
| 2156-FCD1300N80Z-OS | |
| Standard Package | 2500 |
Data Picture:https://www.onsemi.com/pdf/datasheet/fcd1300n80z-d.pdf
