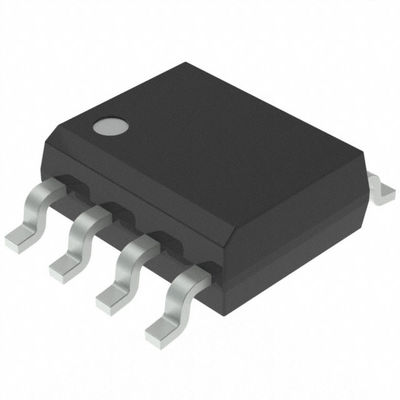

AT24CM02-SSHD-B EEPROM Chip Replacement 2Mbit I²C 1 MHz 450 Ns 8-SOIC
| Place of Origin | America |
|---|---|
| Brand Name | MICROCHIP |
| Certification | RoHS |
| Model Number | AT24CM02-SSHD-B |
| Minimum Order Quantity | 100 PCS |
| Price | Negotiable |
| Packaging Details | 100 PCS/Tube |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Memory | Mfr | Microchip Technology |
|---|---|---|---|
| Package | Tube | Memory Type | Non-Volatile |
| Memory Format | EEPROM | Technology | EEPROM |
| Memory Size | 2Mbit | Memory Organization | 256K X 8 |
| Memory Interface | I²C | Clock Frequency | 1 MHz |
| Voltage - Supply | 2.5V ~ 5.5V | Operating Temperature | -40°C ~ 85°C (TC) |
| High Light | AT24CM02-SSHD-B,EEPROM Chip Replacement,eeprom chips |
||
Product Description
AT24CM02-SSHD-B EEPROM Memory IC 2Mbit I²C 1 MHz 450 Ns 8-SOIC
Description:
The AT24CM02 provides 2,097,152 bits of Serial Electrically Erasable and Programmable Read-Only
Memory (EEPROM) organized as 262,144 words of 8 bits each. The device's cascading feature allows
up to four devices to share a common two-wire bus. This device is optimized for use in many industrial and
commercial applications where low-power and low-voltage operations are essential. The device is available
in space-saving 8-lead SOIC and 8-ball WLCSP packages. All packages operate from 1.7V to 5.5V.
Quick Detail:
|
Manufacturer
|
Microchip Technology
|
|
Manufacturer Product Number
|
AT24CM02-SSHD-B
|
|
Description
|
IC EEPROM 2MBIT I2C 1MHZ 8SOIC
|
|
Detailed Description
|
EEPROM Memory IC 2Mbit I²C 1 MHz 450 ns 8-SOIC
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Memory
|
|
Mfr
|
Microchip Technology
|
|
Package
|
Tube
|
|
Product Status
|
Active
|
|
Memory Type
|
Non-Volatile
|
|
Memory Format
|
EEPROM
|
|
Technology
|
EEPROM
|
|
Memory Size
|
2Mbit
|
|
Memory Organization
|
256K x 8
|
|
Memory Interface
|
I²C
|
|
Clock Frequency
|
1 MHz
|
|
Write Cycle Time - Word, Page
|
10ms
|
|
Access Time
|
450 ns
|
|
Voltage - Supply
|
2.5V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 85°C (TC)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
AT24CM02
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 100 |
Features
• Low-Voltage and Standard-Voltage Operation:
– VCC = 1.7V to 5.5V
– VCC = 2.5V to 5.5V
• Internally Organized as 262,144 x 8 (2‑Mbit)
• Industrial Temperature Range: -40°C to +85°C
• I2C-Compatible (Two-Wire) Serial Interface:
– 100 kHz Standard Mode, 1.7V to 5.5V
– 400 kHz Fast Mode, 1.7V to 5.5V
– 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
• Schmitt Triggers, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• Write-Protect Pin for Full Array Hardware Data Protection
• Ultra Low Active Current (3 mA maximum) and Standby Current (3 µA maximum)
• 256-byte Page Write Mode:
– Byte write and partial page writes allowed
• Random and Sequential Read Modes
• Self-Timed Write Cycle:
– All write operations complete within 10 ms maximum
• Built-in Error Detection and Correction
• High Reliability:
– Endurance: 1,000,000 write cycles
– Data retention: 100 years
• Green Package Options (Lead-free/Halide-free/RoHS compliant)
• Die Sale Options: Wafer Form and Bumped Wafers
Data Picture:
