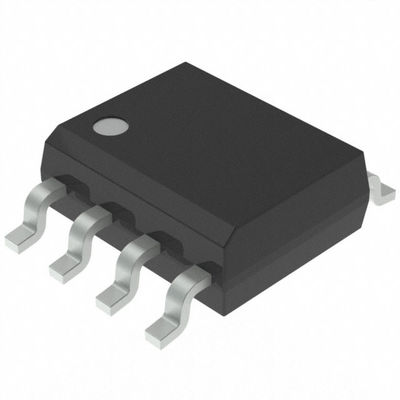

AT25M01-SSHM-T Microchip EEPROM Memory Chip 1.7-5.5V 20MHz Ind Temp 8-SOIC-N
| Place of Origin | America |
|---|---|
| Brand Name | MICROCHIP |
| Certification | RoHS |
| Model Number | AT25M01-SSHM-T |
| Minimum Order Quantity | 4000 PCS |
| Price | Negotiable |
| Packaging Details | 4000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Memory | Mfr | Microchip Technology |
|---|---|---|---|
| Package | Tape & Reel (TR)/Cut Tape (CT) | Memory Type | Non-Volatile |
| Memory Format | EEPROM | Technology | EEPROM |
| Memory Size | 1Mbit | Memory Organization | 128K X 8 |
| Memory Interface | SPI | Clock Frequency | 20 MHz |
| Voltage - Supply | 1.7V ~ 5.5V | Operating Temperature | -40°C ~ 85°C (TA) |
| High Light | at25m01-sshm-t datasheet,AT25M01-SSHM-T Microchip,eeprom chip |
||
Product Description
AT25M01-SSHM-T EEPROM 1.7-5.5V, 20MHz, Ind Temp, 8-SOIC-N
Description:
The AT25M01 provides 1,048,576 bits of Serial Electrically Erasable and Programmable Read-Only
Memory (EEPROM) organized as 131,072 words of 8 bits each. The device is optimized for use in many
industrial and commercial applications where low‑power and low‑voltage operation are essential. The
device is available in space-saving 8‑lead SOIC, 8‑lead SOIJ and 8-ball WLCSP packages. All packages
operate from 1.7V to 5.5V.
Quick Detail:
|
Manufacturer
|
Microchip Technology
|
|
Manufacturer Product Number
|
AT25M01-SSHM-T
|
|
Description
|
IC EEPROM 1MBIT SPI 20MHZ 8SOIC
|
|
Detailed Description
|
EEPROM Memory IC 1Mbit SPI 20 MHz 8-SOIC
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Memory
|
|
Product Status
|
Active
|
|
Memory Type
|
Non-Volatile
|
|
Memory Format
|
EEPROM
|
|
Technology
|
EEPROM
|
|
Memory Size
|
1Mbit
|
|
Memory Organization
|
128K x 8
|
|
Memory Interface
|
SPI
|
|
Clock Frequency
|
20 MHz
|
|
Write Cycle Time - Word, Page
|
5ms
|
|
Voltage - Supply
|
1.7V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
AT25M01
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
AT25M01-SSHM-TCT
|
|
AT25M01-SSHM-TTR
|
|
|
AT25M01-SSHM-TDKR
|
|
| Standard Package | 4000 |
Features
• Serial Peripheral Interface (SPI) Compatible
• Supports SPI Modes 0 (0,0) and 3 (1,1):
– Data sheet describes mode 0 operation
• Low-Voltage Operation:
– 1.7V (VCC = 1.7V to 5.5V)
• Industrial Temperature Range: -40°C to +85°C
• 20 MHz Clock Rate (5V)
• 256‑Byte Page Mode
• Block Write Protection:
– Protect 1/4, 1/2 or entire array
• Write-Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection
• Self-Timed Write Cycle within 5 ms Maximum
• ESD Protection > 4,000V
• High Reliability:
– Endurance: 1,000,000 write cycles
– Data retention: 100 years
• Green (Lead-free/Halide-free/RoHS Compliant) Package Options
• Die Sale Options: Wafer Form and Bumped Wafers
Data Picture:
