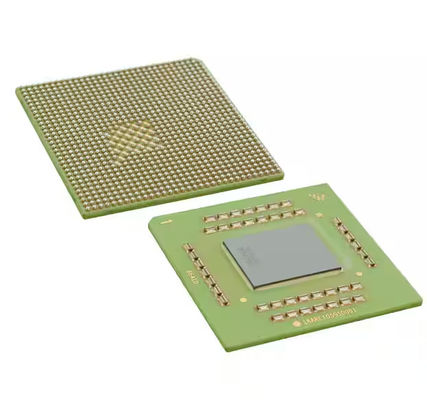

MC8640TVJ1067NE PowerPC E600 Microprocessor IC MPC86xx 1 Core, 32-Bit 1.0GHz 994-FCCBGA 33x33
| Place of Origin | USA |
|---|---|
| Brand Name | NXP |
| Certification | RoHS |
| Model Number | MC8640TVJ1067NE |
| Minimum Order Quantity | 1 PCS |
| Price | Negotiable |
| Packaging Details | 1 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 0.24K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | NXP USA Inc | Category | Microcontrollers |
|---|---|---|---|
| Product Number | MC8640TVJ1067NE | Series | S12 MagniV |
| Product Status | Active | Core Processor | S12Z |
| Core Size | 16-Bit | Speed | 32MHz |
| Connectivity | CANbus, I²C, IrDA, LINbus, SCI, SPI, UART/USART | Peripherals | LVD, POR, PWM, WDT |
| Number Of I/O | 34 | Program Memory Size | 128KB (128K X 8) |
| Program Memory Type | FLASH | EEPROM Size | 512 X 8 |
| RAM Size | 8K X 8 | Voltage - Supply (Vcc/Vdd) | 5.5V ~ 18V |
| Data Converters | A/D 10x10b | Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) | ||
| High Light | MC8640TVJ1067NE,microprocessor ic,Mc8640tvj1067ne Ic |
||
Product Description
MC8640TVJ1067NE PowerPC e600 Microprocessor IC MPC86xx 1 Core, 32-Bit 1.0GHz 994-FCCBGA (33x33)
Overview
The MPC8640 processor family integrates either one or two Power Architecture™ e600 processor cores with system logic required for networking, storage, wireless infrastructure, and general-purpose embedded applications. The MPC8640 integrates one e600 core while the MPC8640D integrates two cores. This section provides a high-level overview of the MPC8640 and MPC8640D features. When referring to the MPC8640 throughout the document, the functionality described applies to both the MPC8640 and the MPC8640D. Any differences specific to the MPC8640D are noted. Figure 1 shows the major functional units within the MPC8640 and MPC8640D. The major difference between the MPC8640 and MPC8640D is that there are two cores on the MPC8640D.
Datasheet:
| Category | Microprocessors |
| Mfr | Freescale Semiconductor |
| Series | MPC86xx |
| Package | Bulk |
| Core Processor | PowerPC e600 |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Speed | 1.067GHz |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Ethernet | 10/100/1000Mbps (4) |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 994-BCBGA, FCBGA |
| Supplier Device Package | 994-FCCBGA (33x33) |
| Additional Interfaces | DUART, HSSI, I²C, RapidIO |
Data Picture:
