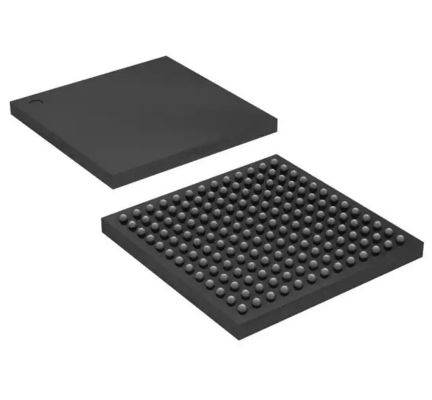

Intel EP4CGX15BF14I7N Cyclone IV GX Field Programmable Gate Array FPGA Ic Microcontroller 72 552960 14400 169-LBGA
| Place of Origin | United States |
|---|---|
| Brand Name | Intel |
| Certification | RoHS |
| Model Number | EP4CGX15BF14I7N |
| Minimum Order Quantity | 119 PCS |
| Price | Negotiable |
| Packaging Details | 119 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 3927 PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Intel | Category | FPGAs (Field Programmable Gate Array) |
|---|---|---|---|
| Product Number | EP4CGX15BF14I7N | Series | Cyclone® IV GX |
| Product Status | Active | Number Of LABs/CLBs | 900 |
| Number Of Logic Elements/Cells | 14400 | Total RAM Bits | 552960 |
| Number Of I/O | 72 | Voltage - Supply | 1.16V ~ 1.24V |
| Mounting Type | Surface Mount | Operating Temperature | -40°C ~ 100°C (TJ) |
| Package / Case | 169-LBGA | Supplier Device Package | 169-FBGA (14x14) |
| Base Product Number | EP4CGX15 | ||
| High Light | EP4CGX15BF14I7N,intel ep4cgx15bf14i7n,ic microcontroller |
||
Product Description
EP4CGX15BF14I7N Cyclone® IV GX Field Programmable Gate Array (FPGA) IC 72 552960 14400 169-LBGA
Datasheet:EP4CGX15BF14I7N
| Category | FPGAs (Field Programmable Gate Array) |
| Mfr | Intel |
| Series | Cyclone IV GX |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of LABs/CLBs | 900 |
| Number of Logic Elements/Cells | 14400 |
| Total RAM Bits | 552960 |
| Number of I/O | 72 |
| Voltage - Supply | 1.16V ~ 1.24V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package / Case | 169-LBGA |
| Supplier Device Package | 169-FBGA (14x14) |
| Base Product Number | EP4CGX15 |
Preliminary Information
The CycloneTM field programmable gate array family is based on a 1.5-V, 0.13-µm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM. With features like phaselocked loops (PLLs) for clocking and a dedicated double data rate (DDR) interface to meet DDR SDRAM and fast cycle RAM (FCRAM) memory requirements, Cyclone devices are a cost-effective solution for data-path applications. Cyclone devices support various I/O standards, including LVDS at data rates up to 311 megabits per second (Mbps) and 66-MHz, 32-bit peripheral component interconnect (PCI), for interfacing with and supporting ASSP and ASIC devices. Altera also offers new low-cost serial configuration devices to configure Cyclone devices.
Features
■ 2,910 to 20,060 LEs, see Table 1
■ Up to 294,912 RAM bits (36,864 bytes)
■ Supports configuration through low-cost serial configuration device
■ Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards
■ Support for 66-MHz, 32-bit PCI standard
■ Low speed (311 Mbps) LVDS I/O support
■ Up to two PLLs per device provide clock multiplication and phase shifting
■ Up to eight global clock lines with six clock resources available per logic array block (LAB) row
■ Support for external memory, including DDR SDRAM (133 MHz), FCRAM, and single data rate (SDR) SDRAM
■ Support for multiple intellectual property (IP) cores, including Altera MegaCore functions and Altera Megafunctions Partners Program (AMPPSM) megafunctions
Data Picture:
