PIC16F15244-I/SS PIC Microcontroller Ic 16F Functional Safety FuSa 8-Bit 32MHz 7KB 4K X 14 FLASH 20-SSOP

Place of Origin America
Brand Name MICROCHIP
Certification RoHS
Model Number PIC16F15244-I/SS
Minimum Order Quantity 67 PCS
Price Negotiable
Packaging Details 67 PCS/Tube
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 5K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Category 8-bit Microcontrollers - MCU Manufacturer Microchip
Series PIC® 16F, Functional Safety (FuSa) Package Tube
Core Processor PIC Core Size 8-Bit
Speed 32MHz Connectivity I²C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT Number Of I/O 17
Program Memory Size 7KB (4K X 14) Program Memory Type FLASH
RAM Size 512 X 8 Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Operating Temperature -40°C ~ 85°C Supplier Device Package 20-SSOP
High Light

Ics 16F 8-Bit 32MHz 7KB 20-SSOP PIC16F15244-I/SS

,

Ics 16F 8-Bit 32MHz 20-SSOP PIC16F15244-I/SS

,

Ics 16F 8-Bit 20-SSOP 32MHz PIC16F15244-I/SS

Leave a Message
Product Description

PIC16F15244-I/SS PIC 16F, Functional Safety (FuSa) Microcontroller IC 8-Bit 32MHz 7KB (4K x 14) FLASH 20-SSOP



Datasheet:PIC16F15244-I/SS



Introduction:

The PIC16F152 microcontroller family has a suite of digital and analog peripherals that enable cost-sensitive

sensor and real-time control applications. This product family is available from 8 to 44-pin packages in a memory

range of 3.5 KB to 28 KB, with speeds up to 32 MHz. The family includes a 10-bit Analog-to-Digital Converter (ADC),

Peripheral Pin Select (PPS), Memory Access Partition (MAP) to support users in data protection and bootloader

applications, Device Information Area (DIA) that stores Fixed Voltage Reference (FVR) offset values to help improve

ADC accuracy, digital communication peripherals, timers and waveform generators. This small form factor device is

well suited for low-cost sensor and control applications.



Description:

Functional Safety Solutions

Microchip Technology Functional Safety Solutions offer robustness, reliability, and safety to end-products. In some

application segments, these requirements are formalized and mandatory, while in others, this is implemented to differentiate

the product and take the step from a good product to an excellent product. The standards for functional safety depend on

the market that is targeted. Many standards support multiple levels of rigorousness, which are applied depending on the

likelihood and severity of the hazard. The methods of addressing hazards range from detecting single failures and putting

the system into a safe state, to full redundancy where failures should not only be detected but also corrected without any

interruption or degradation of service.



Quick Detail:

Manufacturer
Microchip Technology
Manufacturer Product Number
PIC16F15244-I/SS
Description
IC MCU 8BIT 7KB FLASH 20SSOP
Detailed Description
PIC PIC® 16F, Functional Safety (FuSa) Microcontroller IC 8-Bit 32MHz 7KB (4K x 14) FLASH 20-SSOP



Product Attributes:

TYPE DESCRIPTION
Category
Microcontrollers
Mfr Microchip Technology
Series PIC® 16F, Functional Safety (FuSa)
Package Tube
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 32MHz
Connectivity I²C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 17
Program Memory Size 7KB (4K x 14)
Program Memory Type FLASH
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Data Converters A/D 12/2x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package 20-SSOP
Base Product Number PIC16F15244



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names 150-PIC16F15244-I/SS
Standard Package 67



Data Picture:http://ww1.microchip.com/downloads/en/DeviceDoc/PIC16F15213-14-23-24-43-44-Data-Sheet-40002195D.pdf

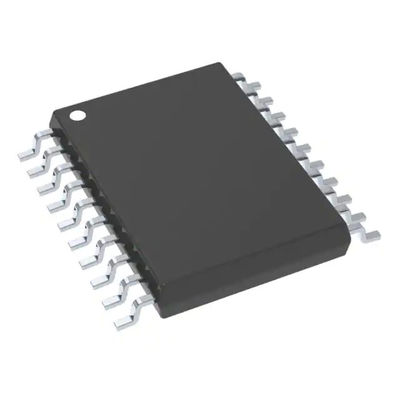

PIC16F15244-I/SS PIC Microcontroller Ic 16F Functional Safety FuSa 8-Bit 32MHz 7KB 4K X 14 FLASH 20-SSOP 0

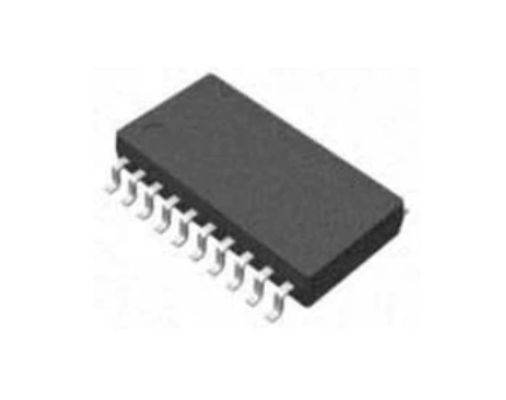

PIC16F15244-I/SS PIC Microcontroller Ic 16F Functional Safety FuSa 8-Bit 32MHz 7KB 4K X 14 FLASH 20-SSOP 1
