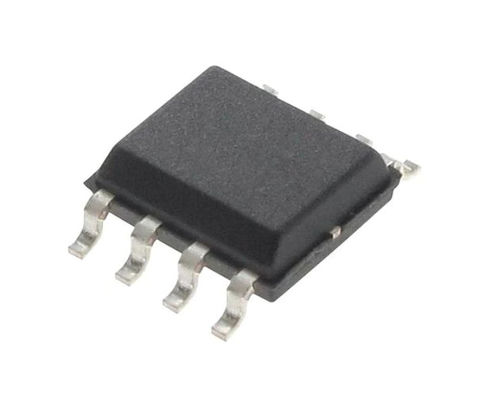

STMicroelectronics M24C32-DRMN3TP/K EEPROM Memory IC Chip 32Kbit I²C 1 MHz 450 Ns 8-SOIC

Place of Origin America
Brand Name ST
Certification RoHS
Model Number M24C32-DRMN3TP/K
Minimum Order Quantity 2500 PCS
Price Negotiable
Packaging Details 2500 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 6K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Category Memory Mfr STMicroelectronics
Series M24C32-A125 Memory Format EEPROM
Technology EEPROM Memory Size 32Kbit
Memory Organization 4K X 8 Memory Interface I²C
Clock Frequency 1 MHz Access Time 450 Ns
Voltage - Supply 1.8V ~ 5.5V
High Light

M24C32-DRMN3TP/K 1 MHz 450 Ns 8-SOIC

,

M24C32-DRMN3TP/K 450 Ns 8-SOIC

,

450 Ns 8-SOIC M24C32-DRMN3TP/K

Leave a Message
Product Description

M24C32-DRMN3TP/K EEPROM Memory IC 32Kbit I²C 1 MHz 450 Ns 8-SOIC



Description:

The M24C32-A125 is a 32-Kbit serial EEPROM automotive grade device operating up to 125 °C. The M24C32- A125 is

compliant with the very high level of reliability defined by the automotive standard AEC-Q100 grade 1. The device is accessed

by a simple serial I2C compatible interface running up to 1 MHz. The memory array is based on advanced true EEPROM

technology (electrically erasable programmable memory). The M24C32-A125 is byte-alterable memories (4096 K × 8 bits) organized

as 128 pages of 32 byte in which the data integrity is significantly improved with an embedded error correction code logic.

The M24C32-A125 offers an additional identification page (32 byte) in which the ST device identification can be read. This page

can also be used to store sensitive application parameters which can be later permanently locked in read-only mode.



Features

• AEC-Q100 qualified

• Compatible with all I2C bus modes

– 1 MHz

– 400 kHz

– 100 kHz

• Memory array

– 32 Kbit (4 Kbyte) of EEPROM

– Page size: 32 byte

– Additional write lockable page (identification page)

• Extended temperature and voltage ranges

– -40 °C to 125 °C; 1.7 V to 5.5 V

• Schmitt trigger inputs for noise filtering.

• Short write cycle time

– Byte write within 4 ms

– Page write within 4 ms

• Write cycle endurance

– 4 million write cycles at 25 °C

– 1.2 million write cycles at 85 °C

– 600 k write cycles at 125 °C

• Data retention

– 50 years at 125 °C

– 100 years at 25 °C

• ESD protection (human body model)

– 4000 V

• Packages

– RoHS compliant and halogen-free (ECOPACK2 )



Quick Detail:

Manufacturer
STMicroelectronics
Manufacturer Product Number
M24C32-DRMN3TP/K
Description
IC EEPROM 32KBIT I2C 1MHZ 8SOIC
Detailed Description
EEPROM Memory IC 32Kbit I²C 1 MHz 450 ns 8-SOIC



Product Attributes:

TYPE
DESCRIPTION
Category
Memory
Mfr
STMicroelectronics
Series
Automotive, AEC-Q100
Product Status
Active
Memory Type
Non-Volatile
Memory Format
EEPROM
Technology
EEPROM
Memory Size
32Kb
Memory Organization
4K x 8
Memory Interface
I²C
Clock Frequency
1 MHz
Write Cycle Time - Word, Page
4ms
Access Time
450 ns
Voltage - Supply
1.8V ~ 5.5V
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Base Product Number
M24C32



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names
497-14425-1
497-14425-2
497-14425-6
Standard Package 2500



DataPicture:

STMicroelectronics M24C32-DRMN3TP/K EEPROM Memory IC Chip 32Kbit I²C 1 MHz 450 Ns 8-SOIC 0

STMicroelectronics M24C32-DRMN3TP/K EEPROM Memory IC Chip 32Kbit I²C 1 MHz 450 Ns 8-SOIC 1
