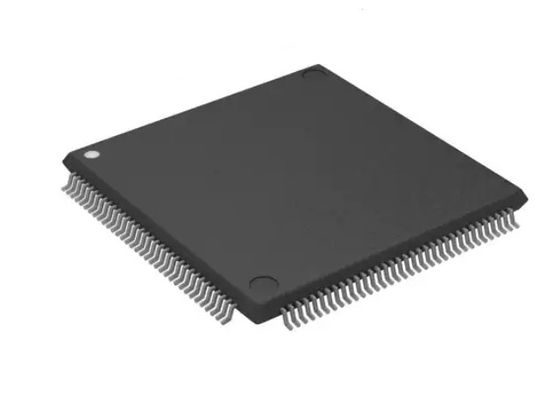

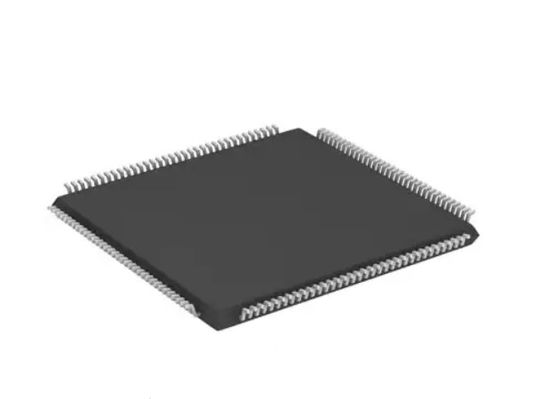

MCF52258CAG66 Microcontroller IC smd 32 Bit Single-Core 66MHz 512KB 512K x 8 FLASH 144-LQFP 20x20
| Place of Origin | America |
|---|---|
| Brand Name | NXP |
| Certification | RoHS |
| Model Number | MCF52258CAG66 |
| Minimum Order Quantity | 300 PCS |
| Price | Negotiable |
| Packaging Details | 300 PCS/Tube |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Microcontrollers | Manufacturer | NXP |
|---|---|---|---|
| CPU Core | AVR | Series | MCF5225X |
| Working Voltage Range | LQFP-144 | Core Processor | ColdFire V2 |
| Program Memory Size | 512 KB | Data RAM Size | 64 KB |
| Data Bus Width | 32 Bit | ADC Resolution | 12 Bit |
| Maximum Clock Frequency | 80 MHz | Number Of I/Os | 96 I/O |
| Supply Voltage | 3V ~ 3.6V | Operating Temperature | -40°C ~ 85°C |
| Data Converters | A/D 8x12b | Supplier Device Package | 144-LQFP (20x20) |
| High Light | MCF52258CAG66,microcontroller ic smd,mcf52258cag66 datasheet |
||
Product Description
MCF52258CAG66 Microcontroller IC 32-Bit Single-Core 66MHz 512KB (512K x 8) FLASH 144-LQFP (20x20)
Datasheet:MCF52258CAG66
Coldfire V2 MCF5225x Microcontroller IC 32-Bit Single-Core 66MHz 512KB (512K x 8) FLASH 144-LQFP (20x20)
Introduction:
The MCF52259 microcontroller family (MCF52252, MCF52254, MCF52255, MCF52256, MCF52258, and MCF52259
devices) is a member of the ColdFire family of reduced instruction set computing (RISC) microprocessors. This document
provides an overview of the 32-bit MCF52259 microcontroller, focusing on its highly integrated and diverse feature set.
This 32-bit device is based on the Version 2 ColdFire core operating at a frequency up to 80 MHz, offering high performance
and low power consumption. On-chip memories connected tightly to the processor core include up to 512 KB of flash memory
and 64 KB of static random access memory (SRAM). On-chip modules include
Description:
MCF5225x ColdFire® Microcontrollers
NXP Semiconductor MCF5225x ColdFire® 32-bit microcontroller (MCU) family delivers one-stop-shop connectivity with
on-chip USB, Ethernet, CAN, and encryption. The NXP Semiconductor MCF5225x ColdFire MCU family includes complementary
and ready-to-go NXP MQX RTOS, software stacks, training resources, and a suite of third party solutions that make it easy to
design for any connectivity application. The MCF5225x MCU consists of a RISC microprocessor based on the Version 2 ColdFire
core that operates at a frequency up to 80 MHz. The MCF5225x family's on-chip memories include up to 512 KB of Flash memory
and 64KB of SRAM.
Quick Detail:
|
Manufacturer
|
NXP USA Inc. |
|
Manufacturer Product Number
|
MCF52258CAG66 |
|
Description
|
IC MCU 32BIT 512KB FLASH 144LQFP |
|
Detailed Description
|
Coldfire V2 MCF5225x Microcontroller IC 32-Bit Single-Core 66MHz 512KB (512K x 8) FLASH 144-LQFP (20x20) |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Microcontrollers
|
|
Mfr
|
NXP USA Inc.
|
|
Series
|
MCF5225x
|
|
Package
|
Tray
|
|
Product Status
|
Active
|
|
Core Processor
|
Coldfire V2
|
|
Core Size
|
32-Bit Single-Core
|
|
Speed
|
66MHz
|
|
Connectivity
|
CANbus, EBI/EMI, Ethernet, I²C, QSPI, UART/USART, USB OTG
|
|
Peripherals
|
DMA, LVD, POR, PWM, WDT
|
|
Number of I/O
|
96
|
|
Program Memory Size
|
512KB (512K x 8)
|
|
Program Memory Type
|
FLASH
|
|
RAM Size
|
64K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
3V ~ 3.6V
|
|
Data Converters
|
A/D 8x12b
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
144-LQFP
|
|
Supplier Device Package
|
144-LQFP (20x20)
|
|
Base Product Number
|
MCF52258
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 935314016557 |
| Standard Package | 300 |
Data Picture:http://www.nxp.com.cn/docs/en/data-sheet/MCF52259.pdf
