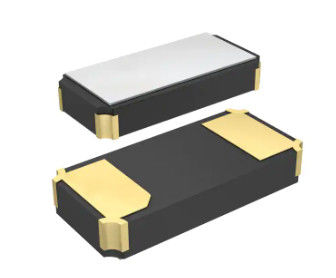

FC-135 32.7680KA-A5 Passive Crystal Oscillator 32.768kHz ±20ppm 12.5pF 70kΩ
| Place of Origin | JAPAN |
|---|---|
| Brand Name | EPSON |
| Certification | RoHS |
| Model Number | FC-135 32.7680KA-A5 |
| Minimum Order Quantity | 3000 PCS |
| Price | Negotiable |
| Packaging Details | 3000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | FC-135 32.7680KA-A5 | Category | Crystals |
|---|---|---|---|
| Manufacturer | EPSON | Series | FC-135 |
| Package | Tape & Reel (TR)/Cut Tape (CT) | Frequency | 32.768kHz |
| Frequency Tolerance | ±20ppm | Load Capacitance | 12.5pF |
| Equivalent Series Resistance | 70kΩ | Operating Temperature | -40℃~85℃ |
| Length | 3.2mm | Width | 1.5mm |
| Height | 0.9mm | Part # Aliases | Q13FC1350000400 |
Product Description
Datasheet:FC-135 32.7680KA-A5.pdf
32.768 kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead
Features:
● Frequency range:32.768 kHz (32 kHz to 100 kHz)
●External dimensions:3.2 × 1.5 × 0.80 mm ···FC-135R/FC-135
●Overtone order:Fundamental
●Applications:Small communications devices
●Applications:Small communications devices
Description:
FC-135 Tuning Fork Crystals
Epson Timing FC-135 Tuning Fork Crystals are 32.768kHz (32kHz to 100kHz) frequency range
crystals designed for small communications devices. Epson Timing FC-135 Tuning Fork Crystals
feature 3.2mm x 1.5mm x 0.80mm external dimensions, a fundamental overtone order, and a 0.5µW
(1.0µW maximum) level of drive. The series operates over a -40°C to +85°C operating temperature range.
Quick Detail:
| Packaging |
Tape & Reel (TR)
|
|
Cut Tape (CT)
|
|
|
Manufacturer
|
EPSON
|
|
Manufacturer Product Number
|
FC-135 32.7680KA-A5
|
|
Description
|
CRYSTAL 32.7680KHZ 12.5PF SMD
|
|
Detailed Description
|
32.768 kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
| Category |
Crystals
|
|
Mfr
|
EPSON
|
|
Series
|
FC-135
|
|
Package
|
Tape & Reel (TR)
|
|
Cut Tape (CT)
|
|
|
Product Status
|
Active
|
|
Type
|
kHz Crystal (Tuning Fork)
|
|
Frequency
|
32.768 kHz
|
|
Frequency Tolerance
|
±20ppm
|
|
Load Capacitance
|
12.5pF
|
|
ESR (Equivalent Series Resistance)
|
70 kOhms
|
|
Operating Mode
|
Fundamental
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
2-SMD, No Lead
|
|
Size / Dimension
|
0.126" L x 0.059" W (3.20mm x 1.50mm)
|
|
Height - Seated (Max)
|
0.035" (0.90mm)
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
FC-135 32.7680KA-A5-ND
|
|
SER4103CT
|
|
|
Q13FC13500004
|
|
|
Q13FC1350000400
|
|
|
SER4103DKR
|
|
|
SER4103TR
|
|
|
FC-13532.7680KA-A5
|
|
| Standard Package | 3000 |

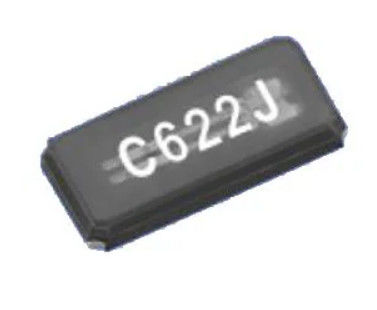

Data Picture:
