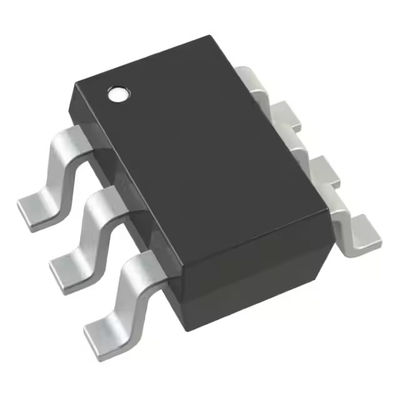

AD5601BKSZ-REEL7 8 Bit Dac Chip Data Converter IC 1 SC-70-6 Package
| Place of Origin | United States |
|---|---|
| Brand Name | ADI |
| Certification | RoHS |
| Model Number | AD5601BKSZ-REEL7 |
| Minimum Order Quantity | 3000 PCS |
| Price | Negotiable |
| Packaging Details | 3000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Digital To Analog Converters - DAC | Mfr | Analog Devices Inc. |
|---|---|---|---|
| Series | AD5601 | Number Of Bits | 8 |
| Number Of D/A Converters | 1 | Settling Time | 10µs |
| Output Type | Voltage - Buffered | Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | Operating Temperature | -40°C ~ 125°C |
| High Light | AD5601BKSZ-REEL7,8 bit dac chip,sc70-6 package |
||
Product Description
Description:
The AD5601/AD5611/AD5621, members of the nanoDAC® family, are single, 8-/10-/12-bit, buffered
voltage output DACs that operate from a single 2.7 V to 5.5 V supply, consuming typically 75 µA at 5 V.
The parts come in tiny LFCSP and SC70 packages. Their on-chip precision output amplifier allows railto-rail
output swing to be achieved. The AD5601/AD5611/ AD5621 utilize a versatile 3-wire serial interface that
operates at clock rates up to 30 MHz and is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards.
Quick Detail:
|
Manufacturer
|
Analog Devices Inc.
|
|
Manufacturer Product Number
|
AD5601BKSZ-REEL7
|
|
Description
|
IC DAC 8BIT V-OUT SC70-6
|
|
Detailed Description
|
8 Bit Digital to Analog Converter 1 SC-70-6
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Digital to Analog Converters (DAC)
|
|
Mfr
|
Analog Devices Inc.
|
|
Series
|
nanoDAC®
|
|
Product Status
|
Active
|
|
Number of Bits
|
8
|
|
Number of D/A Converters
|
1
|
|
Settling Time
|
10µs
|
|
Output Type
|
Voltage - Buffered
|
|
Differential Output
|
No
|
|
Data Interface
|
SPI, DSP
|
|
Reference Type
|
Supply
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.5V
|
|
Voltage - Supply, Digital
|
2.7V ~ 5.5V
|
|
INL/DNL (LSB)
|
±0.5 (Max), ±0.5 (Max)
|
|
Architecture
|
String DAC
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Package / Case
|
6-TSSOP, SC-88, SOT-363
|
|
Supplier Device Package
|
SC-70-6
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
AD5601
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
AD5601BKSZ-REEL7DKR
|
|
AD5601BKSZ-REEL7CT
|
|
|
AD5601BKSZREEL7
|
|
|
AD5601BKSZ-REEL7-ND
|
|
|
AD5601BKSZ-REEL7TR
|
|
| Standard Package | 3000 |
