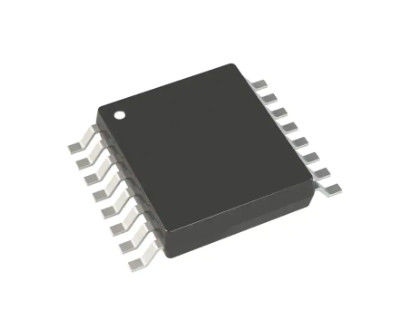

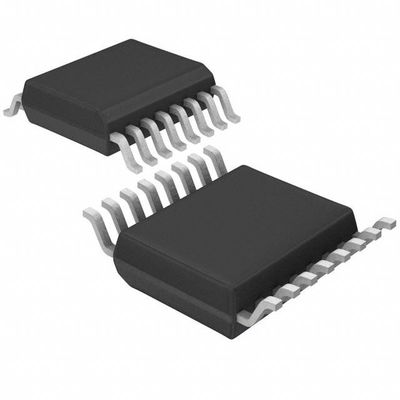

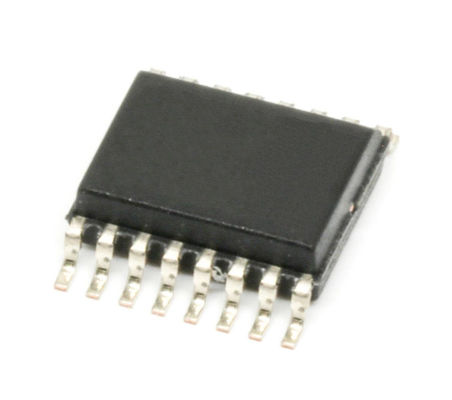

AD7792BRUZ-REEL 16 Bit Dac Converter Ic 3 Input 1 Sigma-Delta 16-TSSOP

Place of Origin United States
Brand Name ADI
Certification RoHS
Model Number AD7792BRUZ-REEL
Minimum Order Quantity 2500 PCS
Price USD
Packaging Details 2500 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms T/T
Supply Ability 10K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Catalogue Analog To Digital Converters (ADC) RoHS Compliant
General Package TSSOP-16 Length 5mm
Width 4.4mm Height 1.2mm
Operating Temperature -40℃~105℃ Number Of Bits 16
Number Of Analog In Channels 3 Analog Input Voltage-Max 5V
Interface Type DSP/SPI Architecture Sigma Delta
Input Type Differential
High Light

16 Bit Dac Converter Ics AD7792BRUZ-REEL

,

16 Bit Dac Ics AD7792BRUZ-REEL

,

16 Bits Dac AD7792BRUZ-REEL

Leave a Message
Product Description

Datasheet:AD7792BRUZ-REEL

Category Analog to Digital Converters (ADC)
Mfr Analog Devices Inc.
Product Status Active
Number of Bits 16
Sampling Rate (Per Second) 470
Number of Inputs 3
Input Type Differential
Data Interface SPI, DSP
Configuration MUX-ADC
Number of A/D Converters 1
Architecture Sigma-Delta
Reference Type External, Internal
Voltage - Supply, Analog 2.7V ~ 5.25V
Voltage - Supply, Digital 2.7V ~ 5.25V
Features PGA
Operating Temperature -40°C ~ 105°C
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
Mounting Type Surface Mount
Base Product Number AD7792

FEATURES

Up to 23 bits effective resolution RMS noise 40 nV @ 4.17 Hz 85 nV @ 16.7 Hz Current: 400 μA typical Power-down: 1 μA maximum Low noise programmable gain instrumentation amp Band gap reference with 4 ppm/°C drift typical Update rate: 4.17 Hz to 470 Hz 3 differential inputs Internal clock oscillator Simultaneous 50 Hz/60 Hz rejection Programmable current sources On-chip bias voltage generator Burnout currents Power supply: 2.7 V to 5.25 V –40°C to +105°C temperature range Independent interface power supply 16-lead TSSOP package Interface 3-wire serial SPI®, QSPI™, MICROWIRE™, and DSP compatible Schmitt trigger on SCLK

GENERAL DESCRIPTION

The AD7792/AD7793 are low power, low noise, complete analog front ends for high precision measurement applications. The AD7792/AD7793 contain a low noise 16-/24-bit ∑-Δ ADC with three differential analog inputs. The on-chip, low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the rms noise is 40 nV when the update rate equals 4.17 Hz. The devices contain a precision low noise, low drift internal band gap reference and can accept an external differential reference. Other on-chip features include programmable excitation current sources, burnout currents, and a bias voltage generator. The bias voltage generator sets the common-mode voltage of a channel to AVDD/2. The devices can be operated with either the internal clock or an external clock. The output data rate from the parts is softwareprogrammable and can be varied from 4.17 Hz to 470 Hz. The parts operate with a power supply from 2.7 V to 5.25 V. They consume a current of 400 μA typical and are housed in a 16-lead TSSOP package.



AD7792BRUZ-REEL 16 Bit Dac Converter Ic 3 Input 1 Sigma-Delta 16-TSSOP 0
