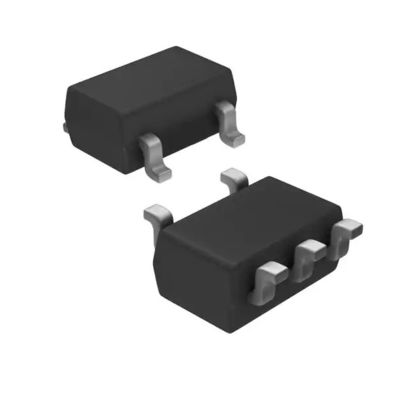

TC7S04F TE85L F Inverter IC 1 Channel Switch IC Chip Digital Regulator SMV
| Place of Origin | Japan |
|---|---|
| Brand Name | Toshiba Semiconductor and Storage |
| Certification | RoHS |
| Model Number | TC7S04F(TE85L,F) |
| Minimum Order Quantity | 3000PCS |
| Price | Negotiable |
| Packaging Details | 3000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 15K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | TC7S04F(TE85L,F) | Category | Gates And Inverters |
|---|---|---|---|
| Manufacturer | Toshiba Semiconductor And Storage | Series | TC7S |
| Logic Type | Inverter | Number Of Circuits | 1 |
| Number Of Inputs | 1 | Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA | Current - Output High, Low | 2.6mA, 2.6mA |
| Input Logic Level - Low | 0.5V ~ 1.8V | Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | SC-74A, SOT-753 |
| High Light | Inverter IC 1 Switch IC Chips TC7S04F TE85L F,Inverter IC 1 Switch ICs TC7S04F TE85L F,Inverter 1 Switch ICs TC7S04F TE85L F |
||
Product Description
TC7S04F(TE85L,F) Inverter IC 1 Channel SMV
Datasheet:TC7S04F(TE85L,F)
| Category | Gates and Inverters |
| Mfr | Toshiba Semiconductor and Storage |
| Series | TC7S |
| Product Status | Active |
| Logic Type | Inverter |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SMV |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 7S08 |
The TC7S04 is a high speed C2 MOS Inverter fabricated with silicon gate C2 MOS technology.
It achieves high speed operation similar to equivalent LSTTL while maintaining the C2 MOS low power dissipation.
The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output.
The input is equipped with protection circuits against static discharge or transient excess voltage.
Output currents are 1/2 compared to TC74HC series models
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | TC7S04F(TE85L,F) |
| TC7S04FLFDKR | |
| TC7S04F(T5LFT)CT | |
| TC7S04F(T5LFT)DKR-ND | |
| TC7S04FT5LFT | |
| TC7S04FTFTR | |
| TC7S04FTCT-NDR | |
| TC7S04F(T5LFT)TR | |
| TC7S04F(TE85LF)TR-ND | |
| TC7S04F(T5LFT)CT-ND | |
| TC7S04FTTR-NDR | |
| TC7S04F(T5LFT)TR-ND | |
| TC7S04F,LF(T | |
| TC7S04F(TE85LF)CT | |
| TC7S04F(TE85LF)CT-ND | |
| TC7S04F(TE85LF)DKR-ND | |
| TC7S04F(TE85LF)TR | |
| TC7S04FTFDKR | |
| TC7S04FTFDKR-ND | |
| TC7S04F,LF(B | |
| TC7S04FLFTR | |
| TC7S04F(T5L,F,T) | |
| TC7S04F (T5L,F,T) | |
| TC7S04F(T5LFT)DKR | |
| TC7S04FTFCT | |
| TC7S04FTFCT-ND | |
| TC7S04F(TE85LF)DKR | |
| TC7S04FTFTR-ND | |
| TC7S04FLFCT | |
| Standard Package | 3000 |
Features
• High speed: tpd = 7 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 1 μA (max) at Ta = 25°C
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Output drive capability: 5 LSTTL loads
• Symmetrical output impedance: |IOH| = IOL = 2 mA (min)
• Balanced propagation delays: tpLH ∼− tpHL
• Wide operating voltage range: VCC (opr) = 2 to 6 V
