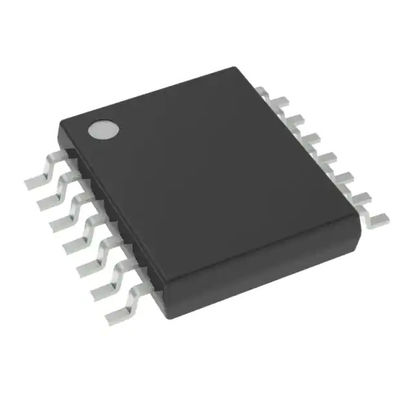

CD4069UBPWR Power Inverter Ic Chip 6 Channel 14-TSSOP Multi Channel Switch Ic Chip
| Place of Origin | America |
|---|---|
| Brand Name | TI |
| Certification | RoHS |
| Model Number | CD4069UBPWR |
| Minimum Order Quantity | 2000 PCS |
| Price | USD |
| Packaging Details | 2000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | T/T |
| Supply Ability | 20K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Catalogue | Gates And Inverters | Mfr | Texas Instruments |
|---|---|---|---|
| Series | 4000B | Logic Type | Inverter |
| Number Of Circuits | 6 | Number Of Inputs | 1 |
| Voltage - Supply | 3V ~ 18V | Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 3.4mA, 3.4mA | Input Logic Level - Low | 1V ~ 2.5V |
| Input Logic Level - High | 4V ~ 12.5V | Max Propagation Delay @ V, Max CL | 50ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | ||
| High Light | Ics 6 Channel 14-TSSOP CD4069UBPWR,Ics 14-TSSOP 6 Channel CD4069UBPWR,CD4069UBPWR Ics 14-TSSOP 6 Channel |
||
Product Description
CD4069UBPWR Inverter IC 6 Channel 14-TSSOP
Datasheet:CD4069UBPWR
| Category | Gates and Inverters |
| Mfr | Texas Instruments |
| Series | 4000B |
| Product Status | Active |
| Logic Type | Inverter |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 1V ~ 2.5V |
| Input Logic Level - High | 4V ~ 12.5V |
| Max Propagation Delay @ V, Max CL | 50ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | CD4069 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | CD4069UBPWRG4 |
| 296-14127-6-NDR | |
| -CD4069UBPWRE4 | |
| -CD4069UBPWR-NDR | |
| -CD4069UBPWRE4-NDR | |
| CD4069UBPWRG4-ND | |
| 2156-CD4069UBPWR | |
| TEXTISCD4069UBPWR | |
| 296-14127-1 | |
| 296-14127-2 | |
| -296-14127-1-ND | |
| -CD4069UBPWRG4 | |
| 296-14127-6 | |
| -CD4069UBPWRG4-NDR | |
| Standard Package | 2000 |
Description
The CD4069UB device consist of six CMOS inverter circuits. These devices are intended for all generalpurpose inverter applications where the mediumpower TTL-drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required.
Features
• Standardized symmetrical output characteristics
• Medium speed operation: tPHL, tPLH = 30 ns at 10 V (Typical)
• 100% Tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range, 100 nA at 18 V and 25°C
• Meets all requirements of JEDEC tentative standard No. 13B, Standard Specifications for Description of B Series CMOS Devices
