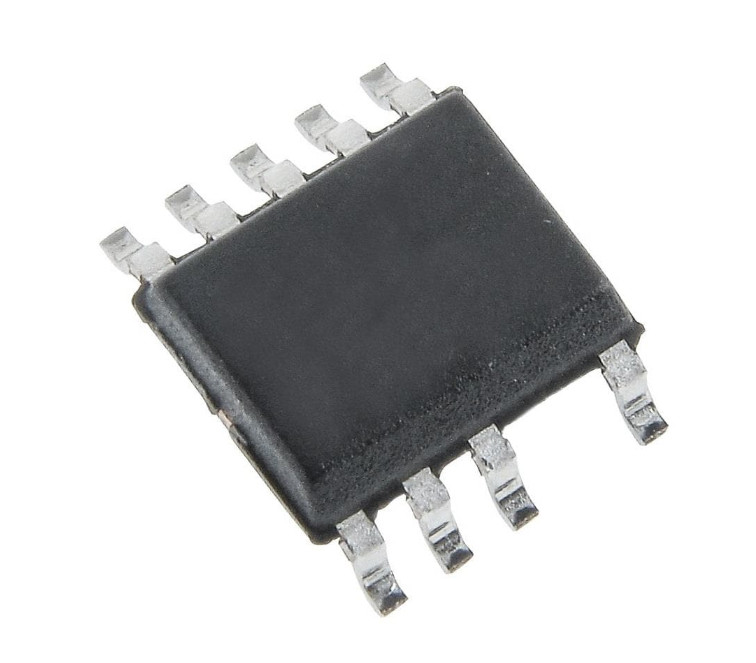

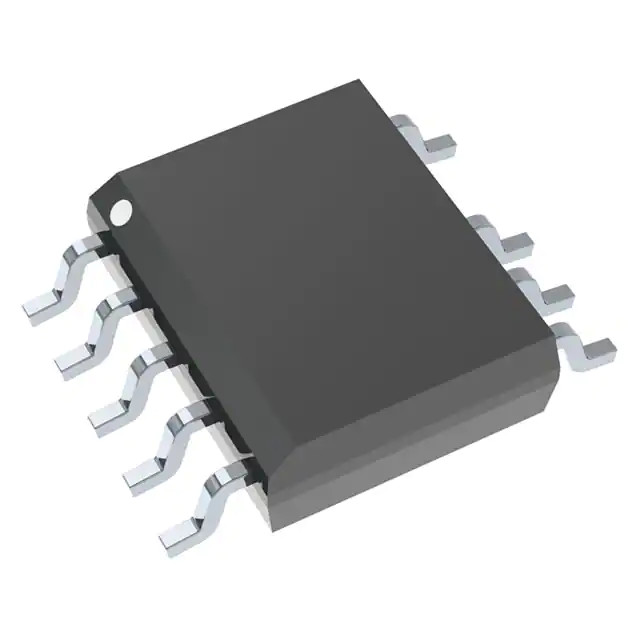

NCP1342AMDCDAD1R2G Onsemi Converter Offline Flyback Topology 25kHz 500kHz 9-SOIC Switch IC Chip
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCategory | AC DC Converters, Offline Switches | Mfr | Onsemi |
---|---|---|---|
Output Isolation | Isolated | Voltage - Breakdown | 700V |
Voltage - Start Up | 17 V | Voltage - Supply (Vcc/Vdd) | 9V ~ 28V |
Frequency - Switching | 25kHz ~ 500kHz | Control Features | Frequency Control, Soft Start |
Operating Temperature | -40°C ~ 125°C | Package / Case | 10-SOP (0.154", 3.90mm Width), 9 Leads |
Supplier Device Package | 9-SOIC | Mounting Type | Surface Mount |
High Light | NCP1342AMDCDAD1R2G,NCP1342AMDCDAD1R2G onsemi,Switch Chip |
NCP1342AMDCDAD1R2G Converter Offline Flyback Topology 25kHz ~ 500kHz 9-SOIC
Description:
onsemi NCP1342 Quasi-Resonant Flyback Controller is a highly integrated High-Frequency PWM
(Pulse Width Modulation) Controller intended to simplify the design of high-performance off-line power converters.
With an integrated active X2 capacitor-discharge feature, the NCP1342 Controller can enable no-load power consumption below 30mW.
Quick Detail:
Manufacturer
|
onsemi
|
Manufacturer Product Number
|
NCP1342AMDCDAD1R2G
|
Description
|
IC OFFLINE SWITCH SOIC9NB
|
Detailed Description
|
Converter Offline Flyback Topology 25kHz ~ 500kHz 9-SOIC
|
Product Attributes:
TYPE
|
DESCRIPTION
|
Category
|
AC DC Converters, Offline Switches
|
Mfr
|
onsemi
|
Product Status
|
Active
|
Output Isolation
|
Isolated
|
Internal Switch(s)
|
No
|
Voltage - Breakdown
|
700V
|
Topology
|
Flyback
|
Voltage - Start Up
|
17 V
|
Voltage - Supply (Vcc/Vdd)
|
9V ~ 28V
|
Frequency - Switching
|
25kHz ~ 500kHz
|
Fault Protection
|
Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit
|
Control Features
|
Frequency Control, Soft Start
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
Package / Case
|
10-SOP (0.154", 3.90mm Width), 9 Leads
|
Supplier Device Package
|
9-SOIC
|
Mounting Type
|
Surface Mount
|
Base Product Number
|
NCP1342
|
Additional Resources:
ATTRIBUTE | DESCRIPTION |
Other Names |
NCP1342AMDCDAD1R2G-ND
|
488-NCP1342AMDCDAD1R2GCT
|
|
Q12063210
|
|
488-NCP1342AMDCDAD1R2GDKR
|
|
488-NCP1342AMDCDAD1R2GTR
|
|
Standard Package | 2500 |
Data Picture:http://www.onsemi.com/download/data-sheet/pdf/ncp1342-d.pdf
