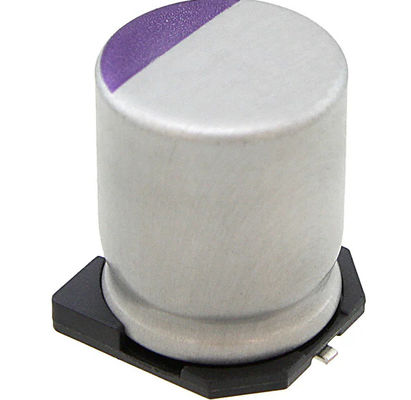

Panasonic 16svpf1000m 1000 µF 16V Aluminum Electrolytic Capacitors Smd Type
| Place of Origin | Japan |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | 16SVPF1000M |
| Minimum Order Quantity | 400 PCS |
| Price | Negotiable |
| Packaging Details | 400 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 58K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | 16SVPF1000M | Category | Aluminum Electrolytic Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | OS-CON™, SVPF |
| Capacitance | 1000 µF | Tolerance | ±20% |
| Voltage Rating | 16V | ESR (Equivalent Series Resistance) | 12mOhm |
| Operating Temperature | -55°C ~ 105°C | Ripple Current @ Low Frequency | 270 MA @ 120 Hz |
| Ripple Current @ High Frequency | 5.4 A @ 100 KHz | Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | Surface Mount Land Size | 0.406" L X 0.406" W (10.30mm X 10.30mm) |
| Base Product Number | 16SVPF | ||
| High Light | 16SVPF1000M,panasonic 16svpf1000m,aluminum electrolytic capacitors smd type |
||
Product Description
16SVPF1000M 1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 12mOhm 5000 Hrs @ 105°C
Datasheet:16SVPF1000M
| Category | Aluminum - Polymer Capacitors |
| Mfr | Panasonic Electronic Components |
| Series | OS-CON™, SVPF |
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 270 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.4 A @ 100 kHz |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | 16SVPF |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | P16478DKR |
| P16478TR | |
| P16478CT | |
| Standard Package | 400 |
