EEUFM1C471L 470uf 16v Electrolytic Capacitor Smd Resistors Capacitors Inductors
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEUFM1C471L |
| Minimum Order Quantity | 200 PCS |
| Price | Negotiable |
| Packaging Details | 200 PCS/Bulk |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEUFM1C471L | Category | Aluminum Electrolytic Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | FM-A |
| Capacitance | 470uF | Tolerance | ±20% |
| Voltage Rating | 16V | Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | Ripple Current @ High Frequency | 930 MA @ 100 KHz |
| Ripple Current @ Low Frequency | 930 MA @ 120 Hz | Impedance | 41 MOhms |
| Lead Spacing | 0.138" (3.50mm) | Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | ||
| High Light | EEUFM1C471L 470uf 16v Capacitors Inductors,EEUFM1C471L 470uf 16v Inductors,470uf 16v Inductors EEUFM1C471L |
||
Product Description
470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Features:
● Endurance : 105 ℃ 4000 h to 7000h
● Low inpedance (40% to 70% less than FC series)
● RoHS compliant
Description:
Panasonic FM Series Thru-Hole Aluminum Electrolytic Capacitors offer low impedance, 2000h to 7000h
at +105°C, and are RoHS directive compliant. The HC Series from Panasonic features a rated w.v. range
of 6.3VDC to 50VDC, a nominal capacitance range of 22μF to 6800μF, a capacitance tolerance of ±20%
(120Hz/+20°C), and a DC leakage current of I<0.01CV after 2 minutes.
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEU-FM1C471L |
|
Description
|
CAP ALUM 470UF 20% 16V RADIAL |
| Detailed Description | 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
FM-A
|
|
Package
|
Bulk
|
|
Product Status
|
Active
|
|
Capacitance
|
470 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
16 V
|
|
Lifetime @ Temp.
|
3000 Hrs @ 105°C
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Polarization
|
Polar
|
|
Applications
|
General Purpose
|
|
Ripple Current @ Low Frequency
|
930 mA @ 120 Hz
|
|
Ripple Current @ High Frequency
|
1.24 A @ 100 kHz
|
|
Impedance
|
41 mOhms
|
|
Lead Spacing
|
0.138" (3.50mm)
|
|
Size / Dimension
|
0.315" Dia (8.00mm)
|
|
Height - Seated (Max)
|
0.650" (16.50mm)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
Radial, Can
|
|
Base Product Number
|
EEU-FM
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
EEUFM1C471L
|
|
P12376
|
|
| Standard Package | 200 |

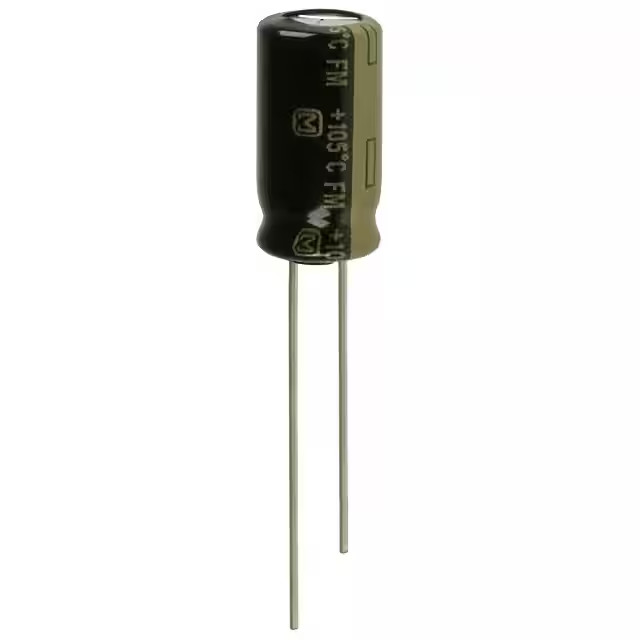

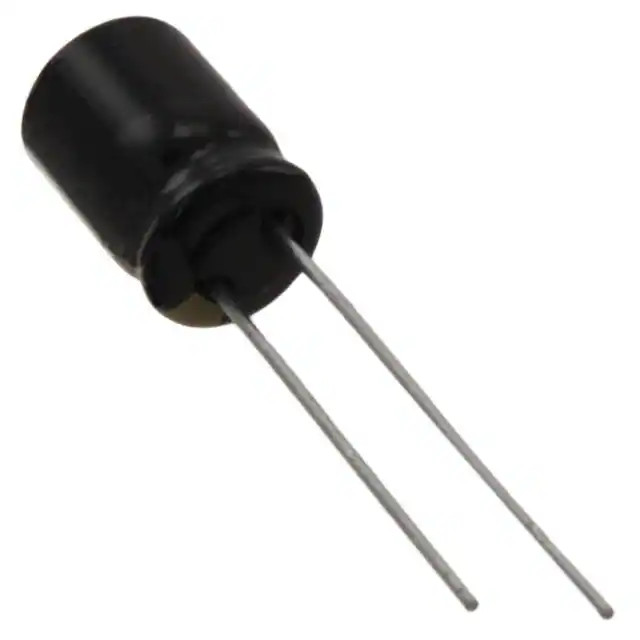

Data Picture:
