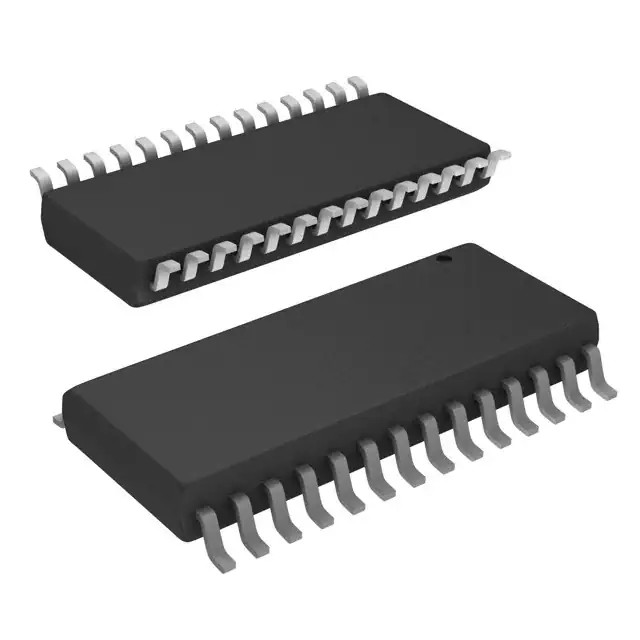

L9848TR STMicroelectronics Power Switch Driver Circuit 1:8 800mA 28-SO
| Place of Origin | Malaysia |
|---|---|
| Brand Name | ST |
| Certification | RoHS |
| Model Number | L9848TR |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Power Distribution Switches, Load Drivers | Mfr | STMicroelectronics |
|---|---|---|---|
| Switch Type | General Purpose | Number Of Outputs | 8 |
| Output Configuration | High Side Or Low Side | Interface | SPI |
| Voltage - Load | 4.75V ~ 5.25V | Current - Output (Max) | 800mA |
| Rds On (Typ) | 1.5Ohm (Max) | Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 28-SO | ||
| High Light | L9848TR,L9848TR STMicroelectronics,power switch driver circuit |
||
Product Description
L9848TR Power Switch/Driver 1:8 800mA 28-SO
Description:L9848TR
The L9848 IC is a highly flexible monolithic medium current output driver that incorporates 2 dedicated low side
outputs (outputs 7-8) and 6 outputs that can be used as either internal low or high side drives in any combination
(outputs 1-6). In addition, 2 outputs are capable of being PWMed via an external pin (outputs 5-6). The integrated
standard serial peripheral interface (SPI) controls all outputs and provides diagnostic information. Integrated clamping
circuits, waveshaping, protection against positive and negative voltage transients and thermal shutdown for all outputs
open a wide range of automotive and industrial applications
Quick Detail:
|
Manufacturer
|
STMicroelectronics
|
|
Manufacturer Product Number
|
L9848TR
|
|
Description
|
IC PWR DRIVER 1:8 28SO
|
|
Detailed Description
|
Power Switch/Driver 1:8 800mA 28-SO
|
Product Attributes:
| Category | Power Distribution Switches, Load Drivers |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | High Side or Low Side |
| Interface | SPI |
| Voltage - Load | 4.75V ~ 5.25V |
| Current - Output (Max) | 800mA |
| Rds On (Typ) | 1.5Ohm (Max) |
| Features | PWM Input |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SO |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Base Product Number | L9848 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 497-19282-6 |
| Standard Package | 1000 |
