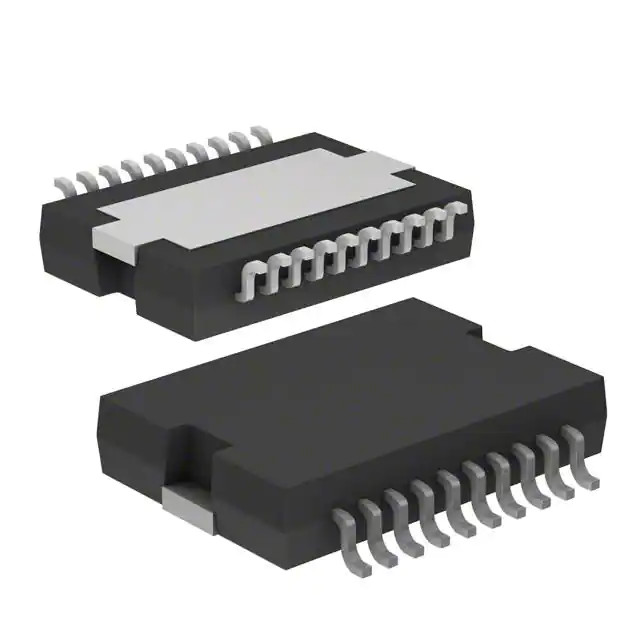

L9822EPD013TR STMicroelectronics Power Switch IC Chip 1:8 PowerSO-20
| Place of Origin | Malaysia |
|---|---|
| Brand Name | ST |
| Certification | RoHS |
| Model Number | L9822EPD013TR |
| Minimum Order Quantity | 600 PCS |
| Price | Negotiable |
| Packaging Details | 600 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Power Distribution Switches, Load Drivers | Mfr | STMicroelectronics |
|---|---|---|---|
| Switch Type | Relay, Solenoid Driver | Number Of Outputs | 8 |
| Ratio - InputOutput | 1:8 | Output Configuration | Low Side |
| Interface | SPI | Voltage - Load | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | ||
| High Light | Power Switch ICs PowerSO-20 L9822EPD013TR,Switch ICs PowerSO-20 L9822EPD013TR,L9822EPD013TR Switch ICs PowerSO-20 |
||
Product Description
L9822EPD013TR Power Switch/Driver 1:8 PowerSO-20
Description:L9822EPD013TR
The L9822E is an octal low side solenoid driver rea lized in Multipower-BCD technology particularly
suited for driving lamps, relays and solenoids in automotive environment. The DMOS outpts L9822E
has a very low power consumption. Data is transmitted serially to the device using the Serial Peripheral
Interface (SPI) protocol. The L9822E features the outputs status monitoring function.
Quick Detail:
|
Manufacturer
|
STMicroelectronics
|
|
Manufacturer Product Number
|
L9822EPD013TR
|
|
Description
|
IC PWR DRIVER 1:8 PWRSO20
|
|
Detailed Description
|
Power Switch/Driver 1:8 PowerSO-20
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Power Distribution Switches, Load Drivers
|
|
Mfr
|
STMicroelectronics
|
|
Product Status
|
Active
|
|
Switch Type
|
Relay, Solenoid Driver
|
|
Number of Outputs
|
8
|
|
Output Configuration
|
Low Side
|
|
Interface
|
SPI
|
|
Voltage - Load
|
4.5V ~ 5.5V
|
|
Rds On (Typ)
|
550mOhm
|
|
Features
|
Status Flag
|
|
Fault Protection
|
Current Limiting (Fixed)
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PowerSO-20
|
|
Package / Case
|
20-SOIC (0.433", 11.00mm Width) Exposed Pad
|
|
Base Product Number
|
L9822
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
497-3660-ND
|
|
497-3660
|
|
|
497-3660-1
|
|
|
497-3660-2
|
|
|
497-3660-6
|
|
|
497-3660-1-NDR
|
|
|
497-3660-2-NDR
|
|
| Standard Package | 600 |
Data Picture:https://media.digikey.com/pdf/Data%20Sheets/ST%20Microelectronics%20PDFS/L9822E.pdf
