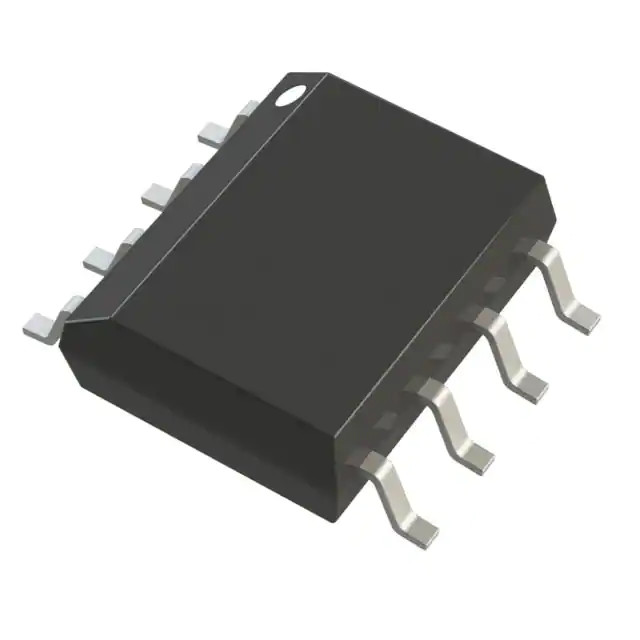

AD5541CRZ-REEL7 16 Bit Dac Ic Digital To Analog Converter 1 8-SOIC
| Place of Origin | United States |
|---|---|
| Brand Name | Analog Devices Inc |
| Certification | RoHS |
| Model Number | AD5541CRZ-REEL7 |
| Minimum Order Quantity | 100PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 4K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Analog Devices Inc. | Category | Digital To Analog Converters (DAC) |
|---|---|---|---|
| Product Number | AD5541CRZ-REEL7 | Number Of Bits | 16 |
| Number Of D/A Converters | 1 | Settling Time | 1µs (Typ) |
| Output Type | Voltage - Unbuffered | Differential Output | No |
| Data Interface | SPI, DSP | Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R | Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount | ||
| High Light | AD5541CRZ-REEL7,16 bit dac ic,ic digital to analog converter |
||
Product Description
Datasheet:AD5541CRZ-REEL7
| Category | Digital to Analog Converters (DAC) |
| Mfr | Analog Devices Inc. |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs (Typ) |
| Output Type | Voltage - Unbuffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | AD5541 |
GENERAL DESCRIPTION
The AD5541/AD5542 are single, 16-bit, serial input, voltage output digital-to-analog converters (DACs) that operate from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREF. The DAC output range extends from 0 V to VREF and is guaranteed monotonic, providing 1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +85°C. Offering unbuffered outputs, the AD5541/AD5542 achieve a 1 µs settling time with low power consumption and low offset errors. Providing a low noise performance of 11.8 nV/√Hz and low glitch, the AD5541/AD5542 is suitable for deployment across multiple end systems. The AD5542 can be operated in bipolar mode, which generates a ±VREF output swing. The AD5542 also includes Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity. The AD5541/AD5542 utilize a versatile 3-wire interface that is compatible with SPI, QSPI™, MICROWIRE™ and DSP interface standards. The AD5541/AD5542 are available in 8-lead and 14-lead SOIC packages.
FEATURES
Full 16-bit performance 3 V and 5 V single-supply operation Low 0.625 mW power dissipation 1 µs settling time Unbuffered voltage output capable of driving 60 kΩ loads directly SPI-/QSPI-/MICROWIRE-compatible interface standards Power-on reset clears DAC output to 0 V (unipolar mode) 5 kV HBM ESD classification Low glitch: 1.1 nV-sec
