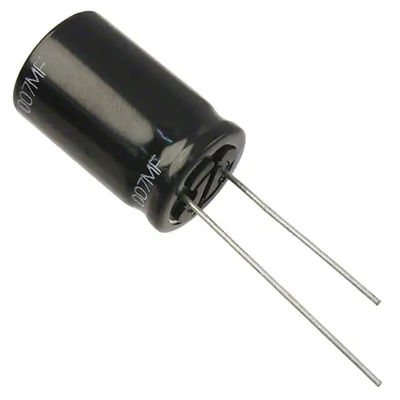

EEUFR1H561B Panasonic Aluminum Electrolytic Capacitors 5600uf 50v Resistors Capacitors Inductors
| Place of Origin | Malaysia |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEUFR1H561B |
| Minimum Order Quantity | 500 PCS |
| Price | Negotiable |
| Packaging Details | 500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEUFR1H561B | Category | Aluminum Electrolytic Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | FR-A |
| Package | Cut Tape (CT)/Tape & Box (TB) | Capacitance | 560uF |
| Tolerance | ±20% | Voltage Rating | 50V |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | Operating Temperature | -40°C ~ 105°C |
| Ripple Current @ High Frequency | 2660 MA @ 100 KHz | Ripple Current @ Low Frequency | 1.995 A @ 120 Hz |
| Impedance | 18 MOhms | Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | Height - Seated (Max) | 1.063" (27.00mm) |
| High Light | EEUFR1H561B,capacitor 5600uf 50v,panasonic aluminum electrolytic capacitors |
||
Product Description
560 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Features:
● Endurance : 105 ℃ 5000 h to 10000 h
● Low ESR (Same as FM Series)
● RoHS compliant
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEU-FR1H561B |
|
Description
|
CAP ALUM 560UF 20% 50V RADIAL |
| Detailed Description | 560 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
FR-A
|
|
Product Status
|
Active
|
|
Capacitance
|
560 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
50 V
|
|
Lifetime @ Temp.
|
10000 Hrs @ 105°C
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Polarization
|
Polar
|
|
Applications
|
General Purpose
|
|
Ripple Current @ Low Frequency
|
1.995 A @ 120 Hz
|
|
Ripple Current @ High Frequency
|
2.66 A @ 100 kHz
|
|
Impedance
|
18 mOhms
|
|
Lead Spacing
|
0.197" (5.00mm)
|
|
Size / Dimension
|
0.492" Dia (12.50mm)
|
|
Height - Seated (Max)
|
1.063" (27.00mm)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
Radial, Can
|
|
Base Product Number
|
EEU-FR
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
P15380CT
|
|
EEU-FR1H561B-ND
|
|
|
EEUFR1H561B
|
|
|
P15380TB
|
|
| Standard Package | 500 |
Description:
Panasonic EEU-FR Series Aluminum Capacitors achieves an endurance of up to 10,000 hours at 105°C - a 100%
increase over previous generations. In addition, the series offers improved capacitance by up to 30% (22 to 8200µF)
and ultra-low ESR - down to just 12mΩ (20°C/1000kHz). Panasonic's EEU-FR Series 10,000 Hour Radial Aluminum
Capacitors operate between 6.3VDC and 50VDC and are ideal for switching mode power supplies, LCD backlighting,
LED systems, and products with long lifetime requirements.

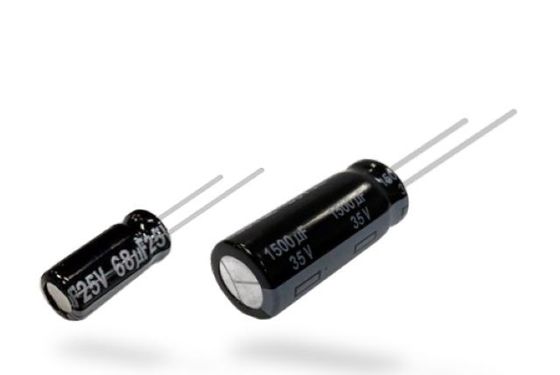

Data Picture:
