EEUFR1C471 470uf 16v Smd Aluminum Capacitors Electrolytic Radial

Place of Origin Malaysia
Brand Name PANASONIC
Certification RoHS
Model Number EEUFR1C471
Minimum Order Quantity 200 PCS
Price Negotiable
Packaging Details 200 PCS/Bulk
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Number EEUFR1C471 Category Aluminum Electrolytic Capacitors
Manufacturer Panasonic Series FR-A
Package Bulk Capacitance 470uF
Tolerance ±20% Voltage Rating 16V
Lifetime @ Temp. 6000 Hrs @ 105°C Operating Temperature -40°C ~ 105°C
Ripple Current @ High Frequency 950 MA @ 100 KHz Ripple Current @ Low Frequency 712.5 MA @ 120 Hz
Impedance 56 MOhms Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm) Height - Seated (Max) 0.512" (13.00mm)
High Light

EEUFR1C471

,

470uf 16v capacitor

,

smd electrolytic

Leave a Message
Product Description

470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C

Features:
● Endurance : 105 ℃ 5000 h to 10000 h
● Low ESR (Same as FM Series)
● RoHS compliant

Description:

Panasonic EEU-FR Series Aluminum Capacitors achieves an endurance of up to 10,000 hours at 105°C - a 100%

increase over previous generations. In addition, the series offers improved capacitance by up to 30% (22 to 8200µF)

and ultra-low ESR - down to just 12mΩ (20°C/1000kHz). Panasonic's EEU-FR Series 10,000 Hour Radial Aluminum

Capacitors operate between 6.3VDC and 50VDC and are ideal for switching mode power supplies, LCD backlighting,

LED systems, and products with long lifetime requirements.



Quick Detail:

Manufacturer
Panasonic Electronic Components
Manufacturer Product Number
EEU-FR1C471
Description
CAP ALUM 470UF 20% 16V RADIAL
Detailed Description 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C

Product Attributes:
TYPE
DESCRIPTION
Category
Aluminum Electrolytic Capacitors
Mfr
Panasonic Electronic Components
Series
FR-A
Package
Bulk
Product Status
Active
Capacitance
470 µF
Tolerance
±20%
Voltage - Rated
16 V
Lifetime @ Temp.
6000 Hrs @ 105°C
Operating Temperature
-40°C ~ 105°C
Polarization
Polar
Applications
General Purpose
Ripple Current @ Low Frequency
712.5 mA @ 120 Hz
Ripple Current @ High Frequency
950 mA @ 100 kHz
Impedance
56 mOhms
Lead Spacing
0.138" (3.50mm)
Size / Dimension
0.315" Dia (8.00mm)
Height - Seated (Max)
0.512" (13.00mm)
Mounting Type
Through Hole
Package / Case
Radial, Can
Base Product Number
EEU-FR

Additional Resources:
ATTRIBUTE DESCRIPTION
Other Names
P14394
EEUFR1C471
Standard Package 200

Data Picture:

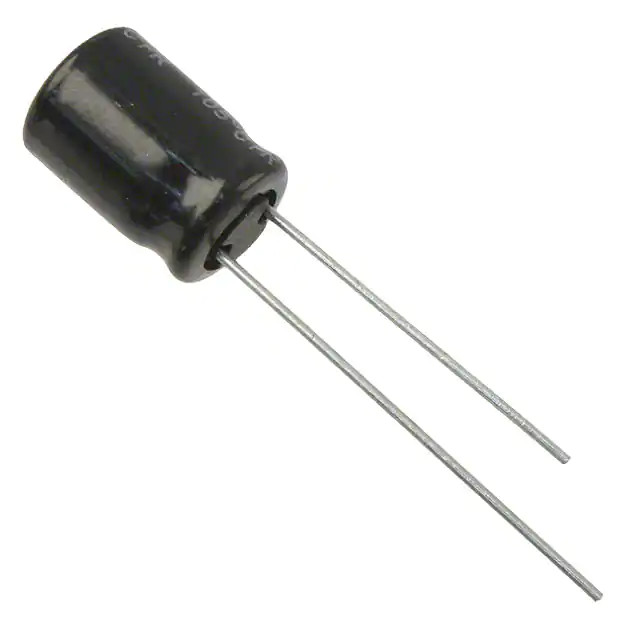

EEUFR1C471 470uf 16v Smd Aluminum Capacitors Electrolytic Radial 0  EEUFR1C471 470uf 16v Smd Aluminum Capacitors Electrolytic Radial 1
EEUFR1C471 470uf 16v Smd Aluminum Capacitors Electrolytic Radial 2
