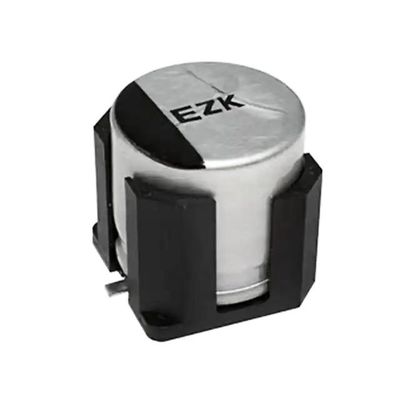

EEHZK1V221UV Polymer Aluminum Electrolytic Capacitors 220µF 35V Resistors Capacitors Inductors
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEHZK1V221UV |
| Minimum Order Quantity | 500 PCS |
| Price | Negotiable |
| Packaging Details | 500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEHZK1V221UV | Category | Aluminum Organic Polymer Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | ZKU |
| Capacitance | 220uF | Tolerance | ±20% |
| Voltage Rating | 35V | Equivalent Series Resistance | 27mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C | Operating Temperature | -55°C ~ 125°C |
| Ripple Current @ High Frequency | 2 A @ 100 KHz | Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) | Surface Mount Land Size | 0.327" L X 0.327" W (8.30mm X 8.30mm) |
| Mounting Type | Surface Mount | ||
| High Light | EEHZK1V221UV,polymer aluminum electrolytic capacitors,polymer aluminum capacitor |
||
Product Description
EEHZK1V221UV 220µF 35V Aluminum - Polymer Capacitors Radial 27mOhm 4000 Hrs
Features:
● Endurance : 4000 h at 125 ℃ (High temperature / Long life)
● Large capacitance compared with ZK series
● Low ESR
● Characteristics dependencies in frequency and low temperature are as small as polymer type
● Vibration-proof product is available upon request.(ø6.3, ø8, ø10)
● AEC-Q200 compliant
● RoHS compliant
Description:
Panasonic ZKU Conductive Polymer Aluminum Capacitors feature high capacitance,
an endurance of 4000h at 125°C, and AEC-Q200 compliance. These aluminum capacitors
combine the advantages of electrolytic capacitors with solid polymer capacitors for reliant
and across-the-board solutions in automotive and industrial applications. The ZKU conductive
polymer capacitors operate at -55°C to +125°C temperature range and 25VDC to 35VDC rated
voltage range. These aluminum capacitors with hybrid technology offer low leakage current and
long life in combination with low Equivalent Series Resistance (ESR) in smaller case sizes. The
ZKU conductive polymer capacitors include high endurance ratings and are available in vibrant
variants that can withstand shocks of as much as 30G. These aluminum capacitors are ideal for
use in DC/DC converters, AC/DC converters, under-the-hood applications, and DC side of both
inverter and rectifier circuits.
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEH-ZK1V221UV |
|
Description
|
CAP ALUM POLY HYB 220UF 35V SMD |
| Detailed Description | 220 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 27mOhm 4000 Hrs @ 125°C |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Aluminum - Polymer Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
ZKU, Anti-Vibration
|
|
Product Status
|
Active
|
|
Type
|
Hybrid
|
|
Capacitance
|
220 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
35 V
|
|
ESR (Equivalent Series Resistance)
|
27mOhm
|
|
Lifetime @ Temp.
|
4000 Hrs @ 125°C
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Ratings
|
AEC-Q200
|
|
Applications
|
Automotive
|
|
Ripple Current @ Low Frequency
|
300 mA @ 100 Hz
|
|
Ripple Current @ High Frequency
|
2 A @ 100 kHz
|
|
Size / Dimension
|
0.315" Dia (8.00mm)
|
|
Height - Seated (Max)
|
0.425" (10.80mm)
|
|
Surface Mount Land Size
|
0.327" L x 0.327" W (8.30mm x 8.30mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
|
Base Product Number
|
EEH-ZK
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
P125008CT
|
|
EEHZK1V221UV
|
|
|
P125008TR
|
|
|
P125008DKR
|
|
| Standard Package | 500 |
Data Picture:
