EEHZC1J560P Replace Polymer Aluminium Electrolytic Capacitor 56µF 63V Resistors Capacitors Inductors
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEHZC1J560P |
| Minimum Order Quantity | 500 PCS |
| Price | Negotiable |
| Packaging Details | 500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEHZC1J560P | Category | Aluminum Organic Polymer Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | ZC |
| Package | Tape & Reel (TR)/Cut Tape (CT) | Capacitance | 56uF |
| Tolerance | ±20% | Voltage Rating | 63V |
| Equivalent Series Resistance | 30mOhm @ 100kHz | Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | Ripple Current @ High Frequency | 1400 MA @ 100 KHz |
| Ripple Current @ Low Frequency | 210 MA @ 100 Hz | Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | Surface Mount Land Size | 0.406" L X 0.406" W (10.30mm X 10.30mm) |
| High Light | EEHZC1J560P,polymer aluminium electrolytic capacitor,replace electrolytic capacitor with polymer |
||
Product Description
56 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 4000 Hrs @ 125°C
Features:
● Endurance: 4000 h at 125 ℃ (High temperature / Long life)
● Low ESR and high ripple current (over 85% lower ESR than V-TP)
● High-withstand voltage (to 80 V)
● Characteristics dependencies in frequency and low temperature are as small as polymer type
● Vibration-proof product is available upon request (ø6.3, ø8, ø10)
● AEC-Q200 compliant
● RoHS compliant
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEH-ZC1J560P
|
|
Description
|
CAP ALUM POLY HYB 56UF 63V SMD |
| Detailed Description | 56 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 4000 Hrs @ 125°C |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Aluminum - Polymer Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
ZC
|
|
Product Status
|
Active
|
|
Type
|
Hybrid
|
|
Capacitance
|
56 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
63 V
|
|
ESR (Equivalent Series Resistance)
|
30mOhm
|
|
Lifetime @ Temp.
|
4000 Hrs @ 125°C
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Ratings
|
AEC-Q200
|
|
Applications
|
Automotive
|
|
Ripple Current @ Low Frequency
|
210 mA @ 100 Hz
|
|
Ripple Current @ High Frequency
|
1.4 A @ 100 kHz
|
|
Size / Dimension
|
0.394" Dia (10.00mm)
|
|
Height - Seated (Max)
|
0.413" (10.50mm)
|
|
Surface Mount Land Size
|
0.406" L x 0.406" W (10.30mm x 10.30mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
|
Base Product Number
|
EEH-ZC
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
10-EEH-ZC1J560PDKR
|
|
P15469DKR-ND
|
|
|
P15469DKR
|
|
| Standard Package | 500 |

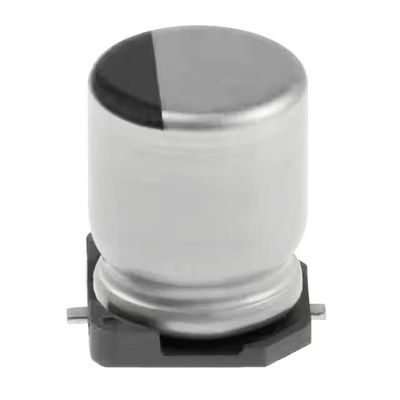

Data Picture:
