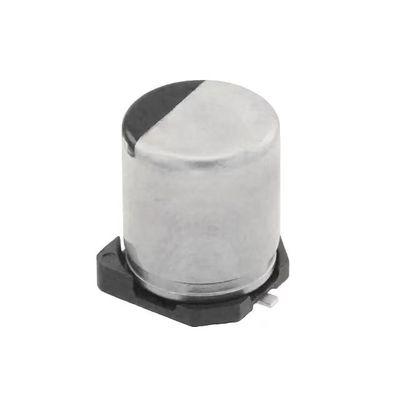

EEHZC1J220XP 22µF 63V Polymer Aluminum Capacitor 80mOhm 4000 Hrs Resistors Capacitors Inductors
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEHZC1J220XP |
| Minimum Order Quantity | 900 PCS |
| Price | Negotiable |
| Packaging Details | 900 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEHZC1J220XP | Category | Aluminum - Polymer Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | ZC |
| Capacitance | 22uF | Tolerance | ±20% |
| Voltage Rating | 63V | Equivalent Series Resistance | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C | Operating Temperature | -55°C ~ 125°C |
| Ripple Current @ High Frequency | 900 MA @ 100 KHz | Ripple Current @ Low Frequency | 90 MA @ 100 Hz |
| Size / Dimension | 0.248" Dia (6.30mm) | Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L X 0.260" W (6.60mm X 6.60mm) | ||
| High Light | EEHZC1J220XP 22µF 63V 80mOhm,EEHZC1J220XP 22µF 80mOhm 63V,EEHZC1J220XP 80mOhm 63V 22µF |
||
Product Description
22 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 80mOhm 4000 Hrs @ 125°C
Features:
● Endurance: 4000 h at 125 ℃ (High temperature / Long life)
● Low ESR and high ripple current (over 85% lower ESR than V-TP)
● High-withstand voltage (to 80 V)
● Characteristics dependencies in frequency and low temperature are as small as polymer type
● Vibration-proof product is available upon request (ø6.3, ø8, ø10)
● AEC-Q200 compliant
● RoHS compliant
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEH-ZC1J220XP
|
|
Description
|
CAP ALUM POLY HYB 22UF 63V SMD |
|
Detailed Description
|
22 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 80mOhm 4000 Hrs @ 125°C |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Aluminum - Polymer Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
ZC
|
|
Product Status
|
Active
|
|
Type
|
Hybrid
|
|
Capacitance
|
22 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
63 V
|
|
ESR (Equivalent Series Resistance)
|
80mOhm
|
|
Lifetime @ Temp.
|
4000 Hrs @ 125°C
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Ratings
|
AEC-Q200
|
|
Applications
|
Automotive
|
|
Ripple Current @ Low Frequency
|
90 mA @ 100 Hz
|
|
Ripple Current @ High Frequency
|
900 mA @ 100 kHz
|
|
Size / Dimension
|
0.248" Dia (6.30mm)
|
|
Height - Seated (Max)
|
0.315" (8.00mm)
|
|
Surface Mount Land Size
|
0.260" L x 0.260" W (6.60mm x 6.60mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
|
Base Product Number
|
EEH-ZC
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
P15467CT
|
|
2266-EEH-ZC1J220XP
|
|
|
EEHZC1J220XP
|
|
|
P15467TR
|
|
|
P15467DKR
|
|
| Standard Package | 900 |

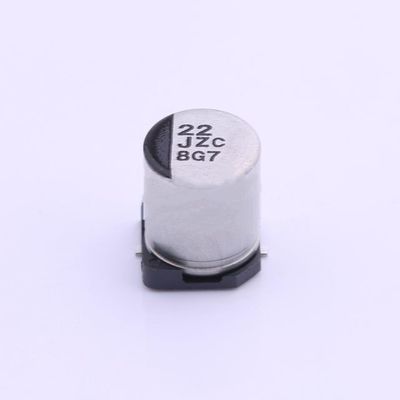

Data Picture:
