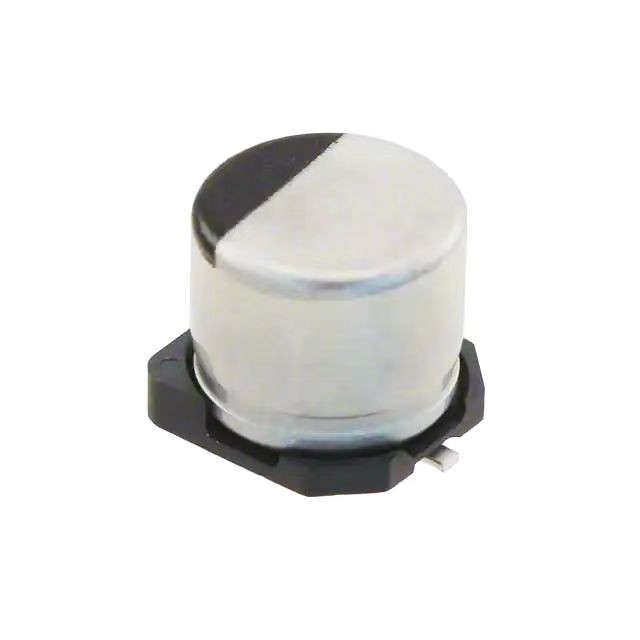

EEHZC1J100P 10uf 63v Electrolytic Capacitor Replacement Resistors Capacitors Inductors
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEHZC1J100P |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEHZC1J100P | Category | Aluminum Electrolytic Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | ZC |
| Package | Tape & Reel (TR)/Cut Tape (CT) | Capacitance | 10uF |
| Tolerance | ±20% | Voltage Rating | 63V |
| Equivalent Series Resistance | 120mOhm @ 100kHz | Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | Ripple Current @ High Frequency | 700 MA @ 100 KHz |
| Ripple Current @ Low Frequency | 70 MA @ 100 Hz | Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | Surface Mount Land Size | 0.260" L X 0.260" W (6.60mm X 6.60mm) |
| High Light | EEHZC1J100P,10uf 63v electrolytic capacitor,electrolytic capacitor 10μf |
||
Product Description
10 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 120mOhm 4000 Hrs @ 125°C
Features:
● Endurance: 4000 h at 125 ℃ (High temperature / Long life)
● Low ESR and high ripple current (over 85% lower ESR than V-TP)
● High-withstand voltage (to 80 V)
● Characteristics dependencies in frequency and low temperature are as small as polymer type
● Vibration-proof product is available upon request (ø6.3, ø8, ø10)
● AEC-Q200 compliant
● RoHS compliant
Description:
Panasonic Capacitors offer a wide range of technologies that can be used in the most demanding applications.
OS-CON™ parts are characterized by a long life span and minimal changes in ESR throughout the entire rated
temperature range. POSCAP (Tantalum Polymer) parts offer high reliability and high heat resistance, making them
the ideal Chip Capacitor for digital, high-frequency devices, and more. The SP-Cap (Aluminum Polymer SMD) line
from Panasonic is composed of multiple series that offer an extremely low ESR, a capacitance range up to 560µF,
and a voltage range from 2V to 16V, achieving very good noise suppression and transient response. Unlike MLCCs,
SP-Caps are not susceptible to temperature drift and DC/AC bias characteristics. The EEH-ZA/ZC/ZK series utilizes
the benefits of both electrolytic and aluminum polymer capacitor technologies and combines them, creating a capacitor
with low ESR, low leakage current, high ripple current, and smaller case sizes.
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEH-ZC1J100P
|
|
Description
|
CAP ALUM POLY HYB 10UF 63V SMD |
|
Detailed Description
|
10 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 120mOhm 4000 Hrs @ 125°C |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
| Category |
Aluminum - Polymer Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
ZC
|
|
Product Status
|
Active
|
|
Type
|
Hybrid
|
|
Capacitance
|
10 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
63 V
|
|
ESR (Equivalent Series Resistance)
|
120mOhm
|
|
Lifetime @ Temp.
|
4000 Hrs @ 125°C
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Ratings
|
AEC-Q200
|
|
Applications
|
Automotive
|
|
Ripple Current @ Low Frequency
|
70 mA @ 100 Hz
|
|
Ripple Current @ High Frequency
|
700 mA @ 100 kHz
|
|
Size / Dimension
|
0.248" Dia (6.30mm)
|
|
Height - Seated (Max)
|
0.240" (6.10mm)
|
|
Surface Mount Land Size
|
0.260" L x 0.260" W (6.60mm x 6.60mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
|
Base Product Number
|
EEH-ZC
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
P15466CT
|
|
EEHZC1J100P
|
|
|
P15466TR
|
|
|
2266-EEH-ZC1J100P
|
|
|
P15466DKR
|
|
| Standard Package | 1000 |
