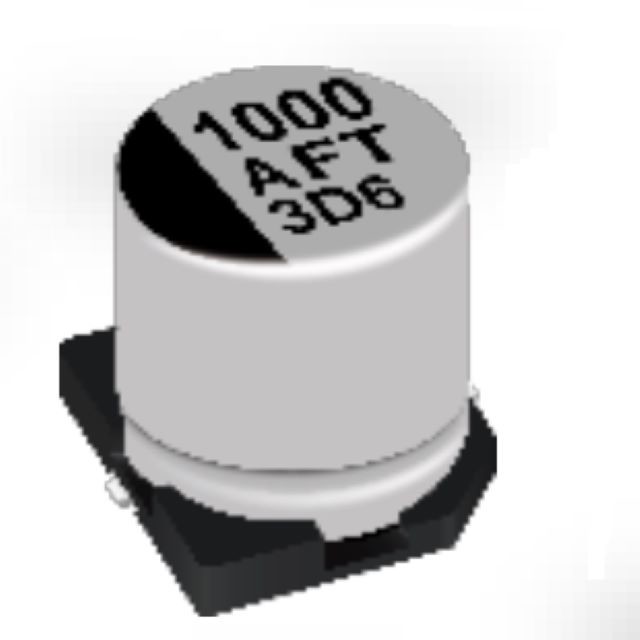

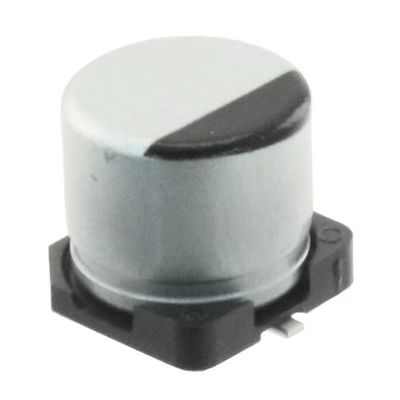

EEEFT1H470AP 47uf 50v Electrolytic Capacitors In Parallel 47uf50v
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEEFT1H470AP |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEEFT1H470AP | Category | Aluminum Electrolytic Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | FT |
| Capacitance | 47uF | Tolerance | ±20% |
| Voltage Rating | 50V | Equivalent Series Resistance | 680mOhm @ 100kHz |
| Lifetime @ Temp. | 2000hrs@105℃ | Operating Temperature | -55℃~105℃ |
| Ripple Current @ High Frequency | 195 MA @ 100 KHz | Ripple Current @ Low Frequency | 126.8 MA @ 120 Hz |
| Size / Dimension | 0.248" Dia (6.30mm) | Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L X 0.260" W (6.60mm X 6.60mm) | ||
| High Light | EEEFT1H470AP Parallel 47uf50v,EEEFT1H470AP 47uf50v Parallel,47uf50v Parallel EEEFT1H470AP |
||
Product Description
47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 680mOhm @ 100kHz 2000 Hrs @ 105°C
Features:
● Endurance:105 ℃ 2000 h to 5000 h
● Miniaturized, Low ESR (1 size smaller than series FK)
● AEC-Q200 compliant
● RoHS compliant
Description:
FT Aluminum Electrolytic Capacitors
Panasonic FT Aluminum Electrolytic Capacitors are one case size smaller than FK SMT Aluminum
Electrolytic Capacitors and feature 2000 to 5000 hours endurance at +105°C. These surface-mount
devices offer low Equivalent Series Resistance (ESR) with capacitance values from 10µF to 2200µF
and a voltage range from 6.3VDC to 50VDC. Panasonic FT Aluminum Electrolytic Capacitors are AEC-Q200
qualified and ideal for a variety of applications in which space is limited and high performance is crucial.
This series includes an anti-vibration capacitor option.
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEE-FT1H470AP
|
|
Description
|
CAP ALUM 47UF 20% 50V SMD
|
|
Detailed Description
|
47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 680mOhm @ 100kHz 2000 Hrs @ 105°C
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
FT
|
|
Product Status
|
Active
|
|
Capacitance
|
47 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
50 V
|
|
ESR (Equivalent Series Resistance)
|
680mOhm @ 100kHz
|
|
Lifetime @ Temp.
|
2000 Hrs @ 105°C
|
|
Operating Temperature
|
-55°C ~ 105°C
|
|
Polarization
|
Polar
|
|
Ratings
|
AEC-Q200
|
|
Applications
|
Automotive
|
|
Ripple Current @ Low Frequency
|
126.8 mA @ 120 Hz
|
|
Ripple Current @ High Frequency
|
195 mA @ 100 kHz
|
|
Size / Dimension
|
0.248" Dia (6.30mm)
|
|
Height - Seated (Max)
|
0.240" (6.10mm)
|
|
Surface Mount Land Size
|
0.260" L x 0.260" W (6.60mm x 6.60mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
|
Base Product Number
|
EEE-FT
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
PCE5023TR
|
|
PCE5023CT
|
|
|
PCE5023DKR
|
|
|
EEEFT1H470AP
|
|
| Standard Package | 1000 |
