EEEFT1H100AR 10uf 50v Electrolytic Capacitor 10uf 50v Smd 880mOhm 2000 Hrs Resistors Capacitors Inductors

Place of Origin JAPAN
Brand Name PANASONIC
Certification RoHS
Model Number EEEFT1H100AR
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Number EEEFT1H100AR Category Aluminum Electrolytic Capacitors
Manufacturer Panasonic Series FT
Capacitance 10uF Tolerance ±20%
Voltage Rating 50V Equivalent Series Resistance 880mOhm @ 100kHz
Lifetime @ Temp. 2000hrs@105℃ Operating Temperature -55℃~105℃
Ripple Current @ High Frequency 165 MA @ 100 KHz Ripple Current @ Low Frequency 107.3 MA @ 120 Hz
Size / Dimension 0.197" Dia (5.00mm) Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L X 0.209" W (5.30mm X 5.30mm)
High Light

EEEFT1H100AR 10uf 50v Electrolytic 880mOhm

,

EEEFT1H100AR 10uf 50v 880mOhm

,

EEEFT1H100AR 880mOhm 10uf 50v

Leave a Message
Product Description
EEEFT1H100AR 10 µF 50 V Aluminum Electrolytic Capacitors Radial 880mOhm 2000 Hrs
Features:
● Endurance:105 ℃ 2000 h to 5000 h
● Miniaturized, Low ESR (1 size smaller than series FK)
● AEC-Q200 compliant
● RoHS compliant


Quick Detail:

Manufacturer
Panasonic Electronic Components
Manufacturer Product Number
EEE-FT1H100AR
Description
CAP ALUM 10UF 20% 50V SMD
Detailed Description
10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 880mOhm @ 100kHz 2000 Hrs @ 105°C

Product Attributes:
TYPE
DESCRIPTION
Category
Aluminum Electrolytic Capacitors
Mfr
Panasonic Electronic Components
Series
FT
Product Status
Active
Capacitance
10 µF
Tolerance
±20%
Voltage - Rated
50 V
ESR (Equivalent Series Resistance)
880mOhm @ 100kHz
Lifetime @ Temp.
2000 Hrs @ 105°C
Operating Temperature
-55°C ~ 105°C
Polarization
Polar
Ratings
AEC-Q200
Applications
Automotive
Ripple Current @ Low Frequency
107.3 mA @ 120 Hz
Ripple Current @ High Frequency
165 mA @ 100 kHz
Size / Dimension
0.197" Dia (5.00mm)
Height - Seated (Max)
0.240" (6.10mm)
Surface Mount Land Size
0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Base Product Number
EEE-FT



Additional Resources:
ATTRIBUTE DESCRIPTION
Other Names
PCE5021CT
PCE5021TR
PCE5021DKR
EEEFT1H100AR
Standard Package 1000

Description:
FT Aluminum Electrolytic Capacitors
Panasonic FT Aluminum Electrolytic Capacitors are one case size smaller than FK SMT Aluminum
Electrolytic Capacitors and feature 2000 to 5000 hours endurance at +105°C. These surface-mount
devices offer low Equivalent Series Resistance (ESR) with capacitance values from 10µF to 2200µF
and a voltage range from 6.3VDC to 50VDC. Panasonic FT Aluminum Electrolytic Capacitors are AEC-Q200
qualified and ideal for a variety of applications in which space is limited and high performance is crucial.
This series includes an anti-vibration capacitor option.

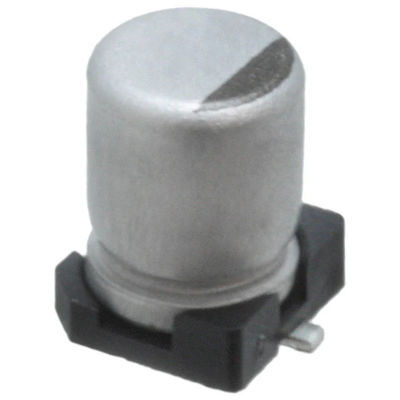

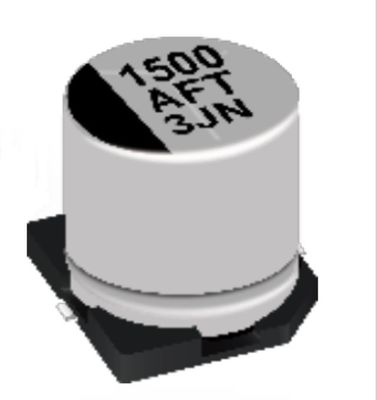

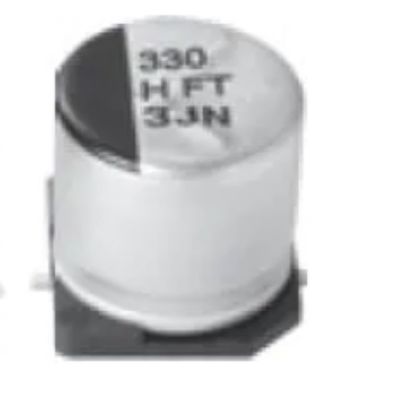

Data Picture:
EEEFT1H100AR 10uf 50v Electrolytic Capacitor 10uf 50v Smd 880mOhm 2000 Hrs Resistors Capacitors Inductors 0
EEEFT1H100AR 10uf 50v Electrolytic Capacitor 10uf 50v Smd 880mOhm 2000 Hrs Resistors Capacitors Inductors 1
