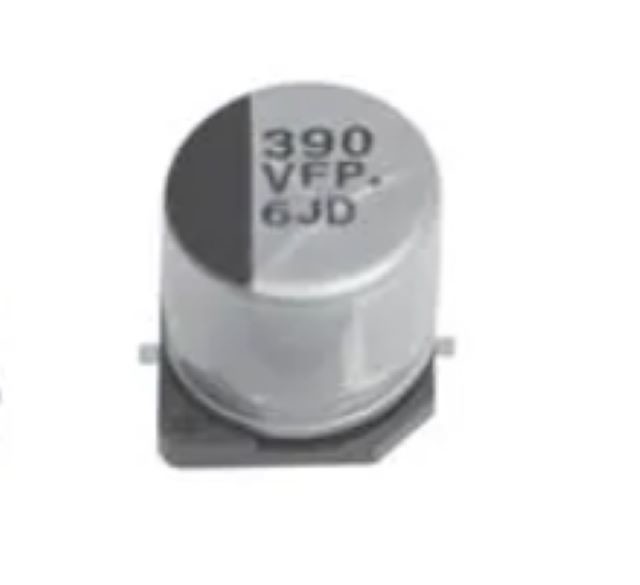

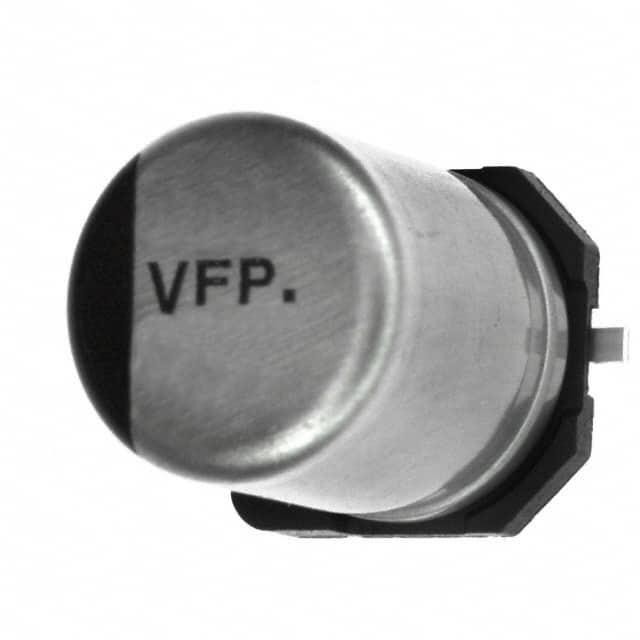

EEEFPC101XAP 100uf 16v Electrolytic Capacitor SMD Resistors Capacitors Inductors
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEEFPC101XAP |
| Minimum Order Quantity | 900 PCS |
| Price | Negotiable |
| Packaging Details | 900 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEEFPC101XAP | Category | Aluminum Electrolytic Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | FP |
| Capacitance | 100uF | Tolerance | ±20% |
| Voltage Rating | 16V | Equivalent Series Resistance | 160mOhm @ 100kHz |
| Lifetime @ Temp. | 2000hrs@105℃ | Operating Temperature | -55℃~105℃ |
| Ripple Current @ High Frequency | 600 MA @ 100 KHz | Ripple Current @ Low Frequency | 390 MA @ 120 Hz |
| Size / Dimension | 0.248" Dia (6.30mm) | Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L X 0.260" W (6.60mm X 6.60mm) | ||
| High Light | EEEFPC101XAP,electrolytic capacitor 100uf 16v,100v electrolytic capacitor |
||
Product Description
Datasheet:EEEFPC101XAP
100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 160mOhm @ 100kHz 2000 Hrs @ 105°C
Features:
● Endurance:105 ℃ 2000 h
● Low ESR (30 % to 50 % less than FK series)
● Vibration-proof product (30G guaranteed) is available upon request (ø6.3 ≦)
● AEC-Q200 compliant
● RoHS compliant
Description:

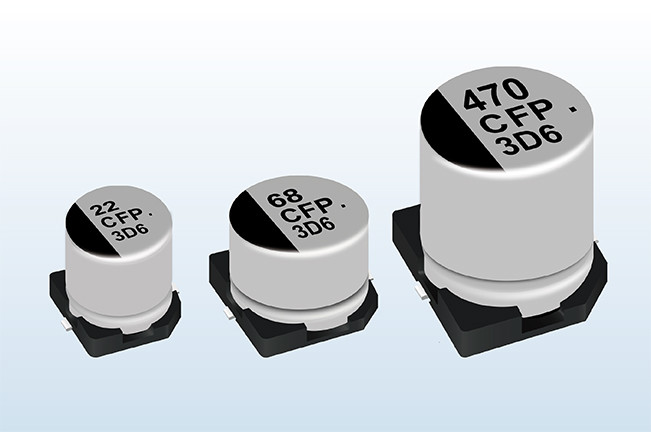

FP Aluminum Electrolytic Capacitors
Panasonic FP Aluminum Electrolytic Capacitors feature Equivalent Series Resistance (ESR)
values of 60mΩ in the G-case size and 80mΩ max over the capacitor lifetime (2000 hours at +105°C) f
or the F-case size. These very low ESR values allow a ripple current of 1190mA at 100kHz/+105°C.
These capacitors offer a voltage range from 6.3VDC to 50VDC with capacitance values from 10µF to
1800µF. Panasonic FP Aluminum Electrolytic Capacitors are AEC-Q200 qualified and withstand higher
soldering temperatures for lead-free reflow soldering. Devices up to 6.3mm in diameter can survive peak
temperatures of +260°C. This series includes a vibration-proof capacitor that withstands up to 30G acceleration.
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEE-FPC101XAP
|
|
Description
|
CAP ALUM 100UF 20% 16V SMD
|
|
Detailed Description
|
100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 160mOhm @ 100kHz 2000 Hrs @ 105°C
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Aluminum Electrolytic Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
FP
|
|
Product Status
|
Active
|
|
Capacitance
|
100 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
16 V
|
|
ESR (Equivalent Series Resistance)
|
160mOhm @ 100kHz
|
|
Lifetime @ Temp.
|
2000 Hrs @ 105°C
|
|
Operating Temperature
|
-55°C ~ 105°C
|
|
Polarization
|
Polar
|
|
Ratings
|
AEC-Q200
|
|
Applications
|
Automotive
|
|
Ripple Current @ Low Frequency
|
390 mA @ 120 Hz
|
|
Ripple Current @ High Frequency
|
600 mA @ 100 kHz
|
|
Size / Dimension
|
0.248" Dia (6.30mm)
|
|
Height - Seated (Max)
|
0.303" (7.70mm)
|
|
Surface Mount Land Size
|
0.260" L x 0.260" W (6.60mm x 6.60mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Radial, Can - SMD
|
|
Base Product Number
|
EEE-FPC
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
EEEFPC101XAP
|
|
2266-EEE-FPC101XAP
|
|
|
PCE4534CT
|
|
|
PCE4534TR
|
|
|
PCE4534DKR
|
|
| Standard Package | 900 |
