EEFSX0E471E4 2.5 V 470uf Electrolytic Capacitor Aluminum Polymer 2917 7343 Metric
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | EEFSX0E471E4 |
| Minimum Order Quantity | 3500 PCS |
| Price | Negotiable |
| Packaging Details | 3500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 7K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | EEFSX0E471E4 | Category | Aluminum Organic Polymer Capacitors |
|---|---|---|---|
| Manufacturer | Panasonic | Series | SP-Cap SX |
| Dielectric Material | Polymer | Capacitance | 470uF |
| Tolerance | ±20% | Voltage Rating | 2.5V |
| Equivalent Series Resistance | 4.5mΩ@100kHz | Lifetime @ Temp. | 2000hrs@105℃ |
| Operating Temperature | -55℃~105℃ | Ripple Current @ High Frequency | 8.5A@100kHz |
| Length | 7.3mm | Width | 4.3mm |
| Height | 2mm | ||
| High Light | EEFSX0E471E4,470uf electrolytic capacitor,electrolytic capacitor 470uf |
||
Product Description
EEFSX0E471E4 470 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 4.5mOhm 2000 Hrs @ 105°C
Datasheet:EEFSX0E471E4
470uF 20% 2.5V Aluminum - Polymer Capacitors 2917 (7343 Metric) 4.5mOhm 2000 Hrs @ 105°C
Features:
● Large capacitance(560 μF max.)
● Low ESR(4.5 mΩ to 9 mΩ max.)
● High ripple current(8500 mA rms max.)
● RoHS compliance, Halogen free
Description:
EEF-SX Specialty Polymer Aluminum Capacitors
Panasonic EEF-SX Specialty Polymer Aluminum Capacitors (SP-Caps) have super
low ESR from 4.5mΩ to 9mΩ. The EEF-SX Series SP-Caps from Panasonic offer lower
ESR and higher capacitance at the same case size than conventional products. Other
features of EEF-SX Series SP-Caps include capacitance range from 82µF to 560µF,
voltage range from 2VDC to 6.3VDC, and operating temperature range from -40°C to +105°C.
Quick Detail:
|
Manufacturer
|
Panasonic Electronic Components
|
|
Manufacturer Product Number
|
EEF-SX0E471E4
|
|
Description
|
CAP ALUM POLY 470UF 20% 2.5V SMD
|
|
Detailed Description
|
470 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 4.5mOhm 2000 Hrs @ 105°C
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Aluminum - Polymer Capacitors
|
|
Mfr
|
Panasonic Electronic Components
|
|
Series
|
SP-Cap SX
|
|
Product Status
|
Active
|
|
Type
|
Polymer
|
|
Capacitance
|
470 µF
|
|
Tolerance
|
±20%
|
|
Voltage - Rated
|
2.5 V
|
|
ESR (Equivalent Series Resistance)
|
4.5mOhm
|
|
Lifetime @ Temp.
|
2000 Hrs @ 105°C
|
|
Operating Temperature
|
-55°C ~ 105°C
|
|
Applications
|
General Purpose
|
|
Ripple Current @ High Frequency
|
8.5 A @ 100 kHz
|
|
Size / Dimension
|
0.287" L x 0.169" W (7.30mm x 4.30mm)
|
|
Height - Seated (Max)
|
0.079" (2.00mm)
|
|
Surface Mount Land Size
|
0.287" L x 0.169" W (7.30mm x 4.30mm)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
2917 (7343 Metric)
|
|
Base Product Number
|
EEF-SX
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
PCE5042CT
|
|
PCE5042TR
|
|
|
PCE5042DKR
|
|
|
EEFSX0E471E4
|
|
| Standard Package | 3500 |

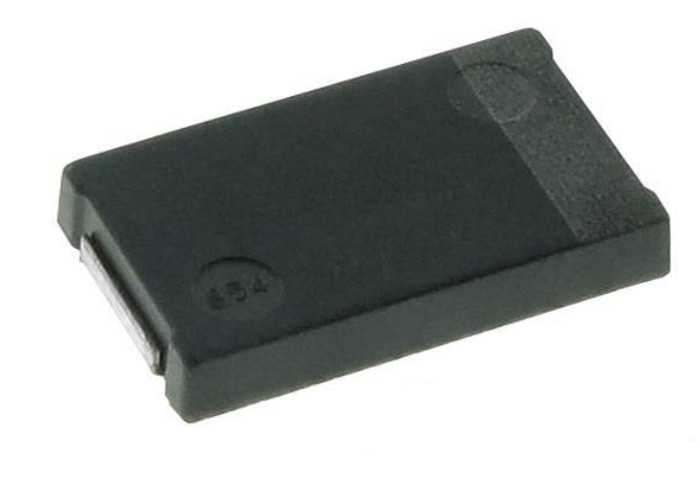

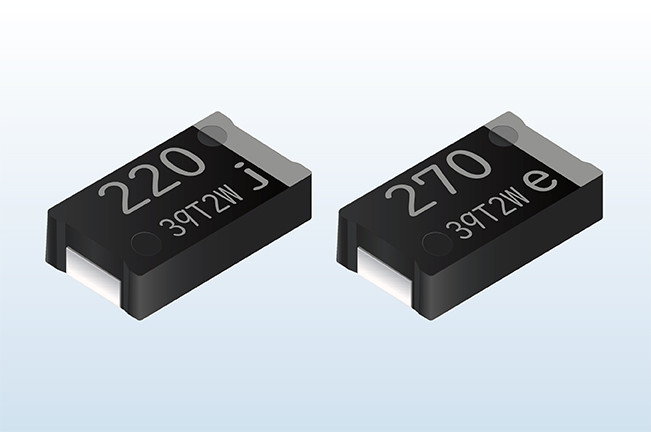

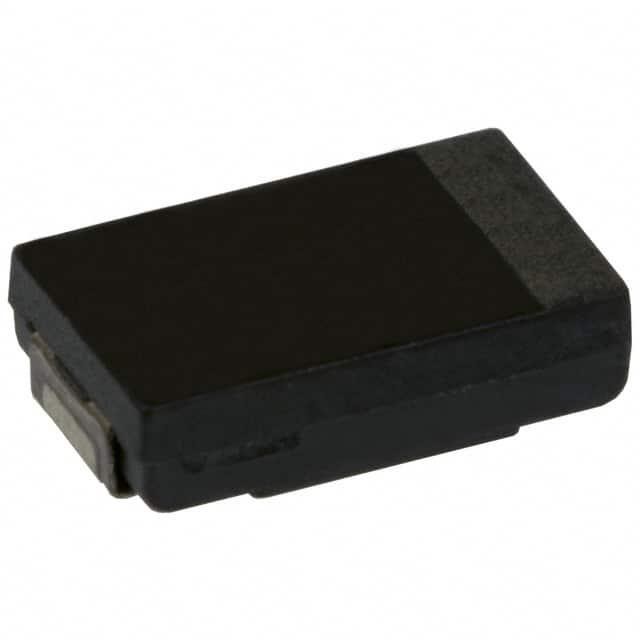

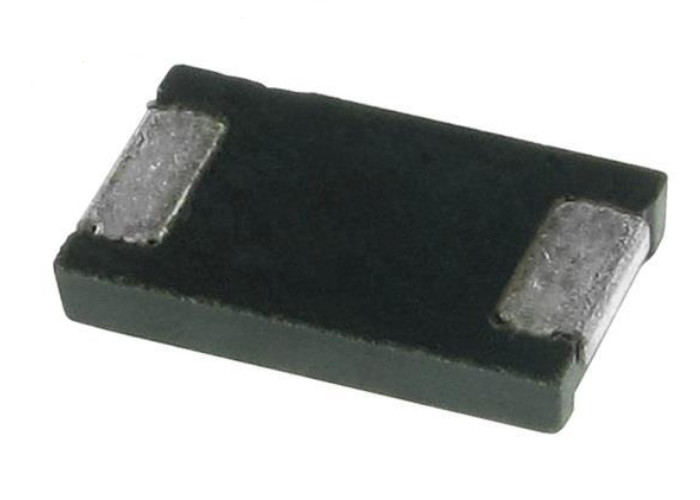

Data Picture:
|
470 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 4.5mOhm 2000 Hrs @ 105°C
|
