AD5641AKSZ-500RL7 14 Bit Digital To Analog Converter IC 1 SC-70-6 Data Converter IC

Place of Origin Analog Devices Inc.
Brand Name ADI
Certification RoHS
Model Number AD5641AKSZ-500RL7
Minimum Order Quantity 500 PCS
Price Negotiable
Packaging Details 500 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 6K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Category Digital To Analog Converters - DAC Mfr Analog Devices Inc.
Series AD5641 Package Tape & Reel (TR)/Cut Tape (CT)
Number Of Bits 14 Number Of D/A Converters 1
Settling Time 10µs Output Type Voltage - Buffered
Voltage - Supply, Analog 2.7V ~ 5.5V Voltage - Supply, Digital 2.7V ~ 5.5V
Operating Temperature -40°C ~ 125°C
High Light

AD5641AKSZ-500RL7

,

14 bit analog to digital converter

,

digital to analog converter ic

Leave a Message
Product Description

Description:

The AD5641, a member of the nanoDAC® family, is a single, 14-bit, buffered, voltage-out DAC

that operates from a single 2.7 V to 5.5 V supply, typically consuming 75 µA at 5 V. The part comes

in tiny LFCSP and SC70 packages. Its on-chip precision output amplifier allows rail-to-rail output swing

to be achieved. The AD5641 uses a versatile 3-wire serial interface that operates at clock rates up to

30 MHz and is compatible with SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The reference

for AD5641 is derived from the power supply inputs and, therefore, gives the widest dynamic output range.

The part incorporates a power-on reset circuit, which ensures that the DAC output powers up to 0 V and remains

there until a valid write to the device takes place.



Quick Detail:

Manufacturer
Analog Devices Inc.
Manufacturer Product Number
AD5641AKSZ-500RL7
Description
IC DAC 14BIT V-OUT SC70-6
Detailed Description
14 Bit Digital to Analog Converter 1 SC-70-6



Product Attributes:

TYPE
DESCRIPTION
Category
Digital to Analog Converters (DAC)
Mfr
Analog Devices Inc.
Series
nanoDAC®
Product Status
Active
Digi-Key Programmable
Not Verified
Number of Bits
14
Number of D/A Converters
1
Settling Time
10µs
Output Type
Voltage - Buffered
Differential Output
No
Data Interface
SPI, DSP
Reference Type
Supply
Voltage - Supply, Analog
2.7V ~ 5.5V
Voltage - Supply, Digital
2.7V ~ 5.5V
INL/DNL (LSB)
±16 (Max), ±1 (Max)
Architecture
String DAC
Operating Temperature
-40°C ~ 125°C
Package / Case
6-TSSOP, SC-88, SOT-363
Supplier Device Package
SC-70-6
Mounting Type
Surface Mount
Base Product Number
AD5641



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names
AD5641AKSZ-500RL7CT-ND
AD5641AKSZ-500RL7TR
AD5641AKSZ500RLTR-ND
ANAANAAD5641AKSZ-500RL7
AD5641AKSZ500RLCT-ND
AD5641AKSZ-500RL7DKR
AD5641AKSZ500RLCT
Standard Package 500

FEATURES

6-lead LFCSP and SC70 packages Micropower operation: 100 µA maximum at 5 V Power-down to typically 0.2 µA at 3 V Single 14-bit DAC B version: ±4 LSB INL A version: ±16 LSB INL 2.7 V to 5.5 V power supply Guaranteed monotonic by design Power-on reset to 0 V with brownout detection 3 power-down functions Low power serial interface with Schmitt-triggered inputs On-chip output buffer amplifier, rail-to-rail operation SYNC interrupt facility APPLICATIONS Voltage level setting Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources Programmable attenuators

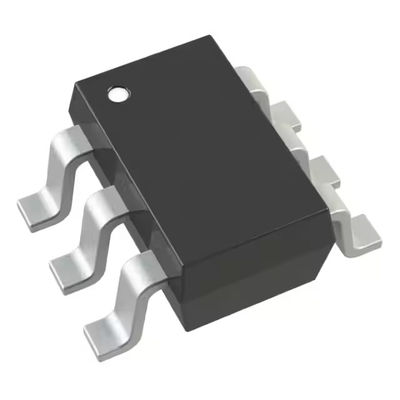

Data Picture:
