ALQ305 Panasonic Relay IC Chip Electronic Components SPST-NO 1 Form A 5VDC Coil

Place of Origin Panasonic Electric Works
Brand Name PANASONIC
Certification RoHS
Model Number ALQ305
Minimum Order Quantity 100 PCS
Price Negotiable
Packaging Details 100 PCS/Box
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 6K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Number ALQ305 Category General Purpose Relays
Mfr Panasonic Electric Works Series ALQ
Package Box Coil Voltage 5VDC
Contact Rating (Current) 10 A Switching Voltage 250VAC - Max
Coil Current 40 MA Must Operate Voltage 3.75 VDC
Must Release Voltage 0.25 VDC Operating Temperature -40°C ~ 85°C
High Light

alq305 datasheet

,

Relay IC Chip Electronic

,

alq305 panasonic

Leave a Message
Product Description

ALQ305 General Purpose Relay IC Chip SPST-NO (1 Form A) 5VDC Coil Through Hole

Quick Detail:

Manufacturer
Panasonic Electric Works
Manufacturer Product Number
ALQ305
Description
RELAY GEN PURPOSE SPST 10A 5V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole



Product Attributes:

TYPE
DESCRIPTION
Category
Power Relays, Over 2 Amps
Mfr
Panasonic Electric Works
Series
ALQ
Package
Box
Product Status
Active
Mounting Type
Through Hole
Coil Voltage
5VDC
Contact Form
SPST-NO (1 Form A)
Switching Voltage
250VAC - Max
Coil Current
40 mA
Coil Type
Non Latching
Termination Style
PC Pin
Coil Insulation
Class B
Must Operate Voltage
3.75 VDC
Must Release Voltage
0.25 VDC
Operate Time
20 ms
Release Time
20 ms
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Nickel (AgNi)
Relay Type
General Purpose
Coil Resistance
125 Ohms
Base Product Number
ALQ30



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names 255-3559
Standard Package 100



Description:

Panasonic ALQ series Non-Polarized Power Relays are compact relays with 10A rating and 1 Form A and 1 Form C

contact arrangements. These units are small in size (10 x 20 x 16mm) and operate at ambient temperatures of -40°C

to +85°C. Class B and Class F insulation is available. Other features include 8000V surge voltage and 4000V breakdown

voltage between contacts and coil. The Panasonic ALQ series is suitable for use in household appliances such as air

conditioners, refrigerators, and microwave ovens.

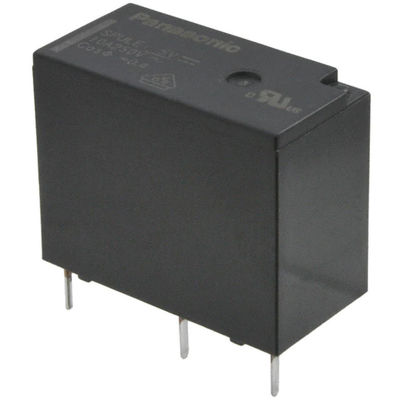

Data Picture:

ALQ305 Panasonic Relay IC Chip Electronic Components SPST-NO  1 Form A 5VDC Coil 0
