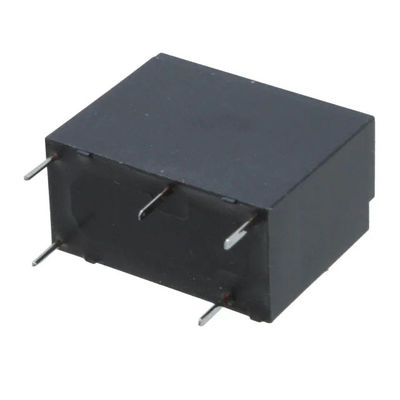

ALQ124 Panasonic Relay IC Chip Integrated Circuits SPDT 1 Form C 24VDC Coil Through Hole
| Place of Origin | Panasonic Electric Works |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | ALQ124 |
| Minimum Order Quantity | 100 PCS |
| Price | Negotiable |
| Packaging Details | 100 PCS/Box |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | ALQ124 | Category | General Purpose Relays |
|---|---|---|---|
| Mfr | Panasonic Electric Works | Series | ALQ |
| Package | Box | Coil Voltage | 24VDC |
| Contact Rating (Current) | 10 A | Switching Voltage | 250VAC - Max |
| Coil Current | 16.7 MA | Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC | Operating Temperature | -40°C ~ 85°C |
| High Light | Panasonic Relay IC Chips 1 Form C 24VDC ALQ124,Panasonic Relay IC Chips 1 C 24VDC ALQ124,24VDC Panasonic Relay IC Chips 1 C ALQ124 |
||
Product Description
ALQ124 General Purpose Relay IC Chip SPDT (1 Form C) 24VDC Coil Through Hole
Quick Detail:
|
Manufacturer
|
Panasonic Electric Works
|
|
Manufacturer Product Number
|
ALQ124
|
|
Description
|
RELAY GEN PURPOSE SPDT 10A 24V
|
|
Detailed Description
|
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
| Category |
Power Relays, Over 2 Amps
|
|
Mfr
|
Panasonic Electric Works
|
|
Series
|
ALQ
|
|
Package
|
Box
|
|
Product Status
|
Active
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
24VDC
|
|
Contact Form
|
SPDT (1 Form C)
|
|
Switching Voltage
|
250VAC - Max
|
|
Coil Current
|
16.7 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin
|
|
Coil Insulation
|
Class B
|
|
Must Operate Voltage
|
18 VDC
|
|
Must Release Voltage
|
1.2 VDC
|
|
Operate Time
|
20 ms
|
|
Release Time
|
20 ms
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Contact Material
|
Silver Nickel (AgNi)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
1.44 kOhms
|
|
Base Product Number
|
ALQ12
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 255-3561 |
| Standard Package | 100 |
Description:
Panasonic ALQ series Non-Polarized Power Relays are compact relays with 10A rating and 1 Form A and 1
Form C contact arrangements. These units are small in size (10 x 20 x 16mm) and operate at ambient temperatures
of -40°C to +85°C. Class B and Class F insulation is available. Other features include 8000V surge voltage and 4000V
breakdown voltage between contacts and coil. The Panasonic ALQ series is suitable for use in household appliances
such as air conditioners, refrigerators, and microwave ovens.
Data Picture:
