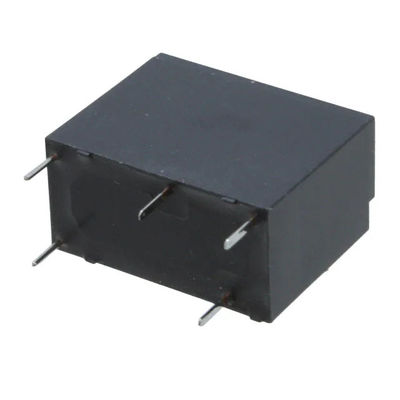

ALQ112 Panasonic Relay Driver Chip SPDT General Purpose 1 Form C 12VDC Coil Through Hole
| Place of Origin | Japan |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | ALQ112 |
| Minimum Order Quantity | 100 PCS |
| Price | Negotiable |
| Packaging Details | 100 PCS/Box |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Power Relays, Over 2 Amps | Mfr | Panasonic Electric Works |
|---|---|---|---|
| Series | ALQ | Package | Box |
| Coil Voltage | 12VDC | Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC - Max | Coil Current | 33.3 MA |
| Must Operate Voltage | 9 VDC | Must Release Voltage | 0.6 VDC |
| Operating Temperature | -40°C ~ 85°C | Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose | ||
| High Light | Panasonic Relay Drivers SPDT 1 Form C 12VDC ALQ112,Panasonic Drivers SPDT 1 Form C 12VDC ALQ112,12VDC Panasonic Drivers SPDT 1 Form C ALQ112 |
||
Product Description
ALQ112 General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Description:
Panasonic ALQ series Non-Polarized Power Relays are compact relays with 10A rating and 1 Form A and 1
Form C contact arrangements. These units are small in size (10 x 20 x 16mm) and operate at ambient temperatures
of -40°C to +85°C. Class B and Class F insulation is available. Other features include 8000V surge voltage and 4000V
breakdown voltage between contacts and coil. The Panasonic ALQ series is suitable for use in household appliances
such as air conditioners, refrigerators, and microwave ovens.
Quick Detail:
|
Manufacturer
|
Panasonic Electric Works
|
|
Manufacturer Product Number
|
ALQ112
|
|
Description
|
RELAY GEN PURPOSE SPDT 10A 12V
|
|
Detailed Description
|
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Power Relays, Over 2 Amps
|
|
Mfr
|
Panasonic Electric Works
|
|
Series
|
ALQ
|
|
Package
|
Box
|
|
Product Status
|
Active
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
12VDC
|
|
Contact Form
|
SPDT (1 Form C)
|
|
Switching Voltage
|
250VAC - Max
|
|
Coil Current
|
33.3 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin
|
|
Coil Insulation
|
Class B
|
|
Must Operate Voltage
|
9 VDC
|
|
Must Release Voltage
|
0.6 VDC
|
|
Operate Time
|
20 ms
|
|
Release Time
|
20 ms
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Contact Material
|
Silver Nickel (AgNi)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
360 Ohms
|
|
Base Product Number
|
ALQ11
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 255-3562 |
| Standard Package | 100 |
Data Picture:https://api.pim.na.industrial.panasonic.com/file_stream/main/fileversion/306
