ALDP105W General Purpose Relay IC Chip SPST-NO 1 Form A 5VDC Coil Through Hole
| Place of Origin | Japan |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | ALDP105W |
| Minimum Order Quantity | 100 PCS |
| Price | Negotiable |
| Packaging Details | 100 PCS/Tray |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Power Relays, Over 2 Amps | Mfr | Panasonic Electric Works |
|---|---|---|---|
| Series | ALDP | Package | Tray |
| Coil Voltage | 5VDC | Contact Rating (Current) | 5 A |
| Switching Voltage | 277VAC - Max | Coil Current | 40 MA |
| Must Operate Voltage | 3.75 VDC | Must Release Voltage | 0.25 VDC |
| Contact Material | Silver Nickel (AgNi) | Relay Type | General Purpose |
| High Light | Relay ICs SPST-NO 1 Form A 5VDC ALDP105W,Relay ICs SPST-NO 1 Form A ALDP105W,ALDP105W Relay ICs SPST-NO 1 Form A |
||
Product Description
ALDP105W General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Description:
Panasonic Industrial Devices LD-P General Power Relays feature a 1 Form A contact arrangement and 5A 277VAC
rated switching capacity. These compact devices utilize a sealed protective construction with a slim profile, measuring
7.2mm (W) x 20.5mm (L) x 15.3mm (H). They offer excellent heat resistance and tracking performance and have an
ambient operating temperature of -40°C to +85°C. Panasonic Industrial Devices LD-P General Power Relays are ideally
suited for use in boilers, hot water units, air conditioners, fan heaters, refrigerators, and microwave ovens.
Quick Detail:
|
Manufacturer
|
Panasonic Electric Works
|
|
Manufacturer Product Number
|
ALDP105W
|
|
Description
|
RELAY GEN PURPOSE SPST 5A 5V
|
|
Detailed Description
|
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Power Relays, Over 2 Amps
|
|
Mfr
|
Panasonic Electric Works
|
|
Series
|
ALDP
|
|
Package
|
Tray
|
|
Product Status
|
Active
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
5VDC
|
|
Contact Form
|
SPST-NO (1 Form A)
|
|
Switching Voltage
|
277VAC - Max
|
|
Coil Current
|
40 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin
|
|
Must Operate Voltage
|
3.75 VDC
|
|
Must Release Voltage
|
0.25 VDC
|
|
Operate Time
|
10 ms
|
|
Release Time
|
10 ms
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Contact Material
|
Silver Nickel (AgNi)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
125 Ohms
|
|
Base Product Number
|
ALDP105
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 255-3586 |
| Standard Package | 100 |

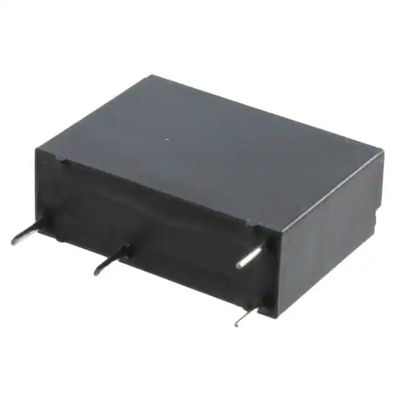

Data Picture:
