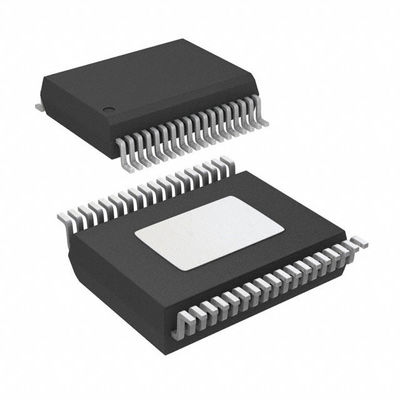

L9960TR Motor Control Driver Chip Half Bridge Driver General Purpose Power MOSFET PowerSSO-36 EPD
| Place of Origin | Malaysia |
|---|---|
| Brand Name | ST |
| Certification | RoHS |
| Model Number | L9960TR |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Slew Rate Controlled | Category | Full Half-Bridge Drivers |
|---|---|---|---|
| Mfr | STMicroelectronics | Series | Automotive, AEC-Q100 |
| Interface | SPI | Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET | Rds On (Typ) | 400mOhm LS + HS |
| Voltage - Supply | 4.5V ~ 5.5V | Voltage - Load | 4.5V ~ 28V |
| Operating Temperature | -40°C ~ 170°C (TJ) | Fault Protection | Over Temperature, Short Circuit |
| Package / Case | 36-PowerBFSOP (0.295", 7.50mm Width) | Supplier Device Package | PowerSSO-36 EPD |
| High Light | L9960TR,motor control driver chip,L9960TR STMicroelectronics |
||
Product Description
L9960TR Half Bridge Driver General Purpose Power MOSFET PowerSSO-36 EPD
Description:
The device is an integrated H-Bridge for resistive and inductive loads for automotive applications.
Target application includes throttle control actuators, exhaust gas recirculation control valves and
general purpose DC motors such as turbo, flap control and electric pumps. The driving strategy is
enhanced by configurable PWM / DIR pins and IN1/IN2. The H-Bridge contains integrated free-wheel
diodes. In case of freewheeling condition, the low-side only is switched on in parallel of its diode to reduce
power dissipation. The integrated Serial Peripheral Interface (SPI) makes it possible to adjust device
parameters, to control all operating modes and read out diagnostic information.
Quick Detail:
|
Manufacturer
|
STMicroelectronics
|
|
Manufacturer Product Number
|
L9960TR
|
|
Description
|
IC HALF BRIDGE DRIVER PWRSSO36
|
|
Detailed Description
|
Half Bridge (2) Driver General Purpose Power MOSFET PowerSSO-36 EPD
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Full Half-Bridge Drivers
|
|
Mfr
|
STMicroelectronics
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Output Configuration
|
Half Bridge (2)
|
|
Applications
|
General Purpose
|
|
Interface
|
SPI
|
|
Load Type
|
Inductive, Capacitive, Resistive
|
|
Technology
|
Power MOSFET
|
|
Rds On (Typ)
|
400mOhm LS + HS
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Voltage - Load
|
4.5V ~ 28V
|
|
Operating Temperature
|
-40°C ~ 170°C (TJ)
|
|
Features
|
Slew Rate Controlled
|
|
Fault Protection
|
Over Temperature, Short Circuit
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
36-PowerBFSOP (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
PowerSSO-36 EPD
|
|
Base Product Number
|
L9960
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
497-17609-1
|
|
497-17609-6-ND
|
|
|
497-L9960DKR
|
|
|
497-17609-2
|
|
|
L9960TR-ND
|
|
|
497-17609-6
|
|
|
497-17609-1-ND
|
|
|
497-L9960TR
|
|
|
497-17609-2-ND
|
|
|
497-L9960CT
|
|
| Standard Package | 1000 |
